Figure 1
PERFECTION IS OUR TRADITION™
pg. 6

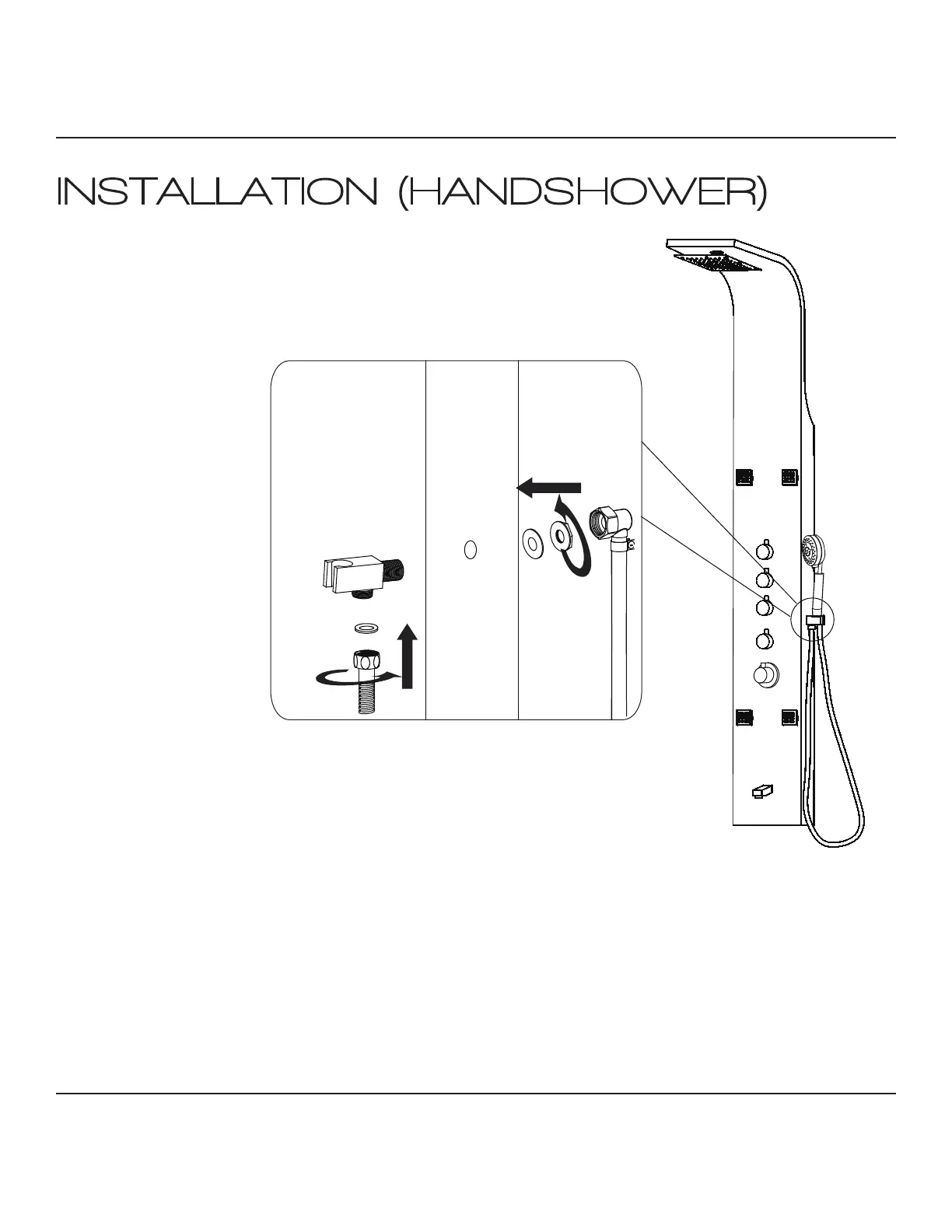

Insert the hand shower holder through the pre-drilled hole on the shower panel.
Install the water supply hose for the hand shower onto the holder, as shown.
Make sure all O-rings are inserted to prevent leakage.
Once the shower panel is fully installed and hung on the bracket, you can install the hand
shower hose to the holder connection.
Step 1A
Step 1B
Step 1C
Step 1D
