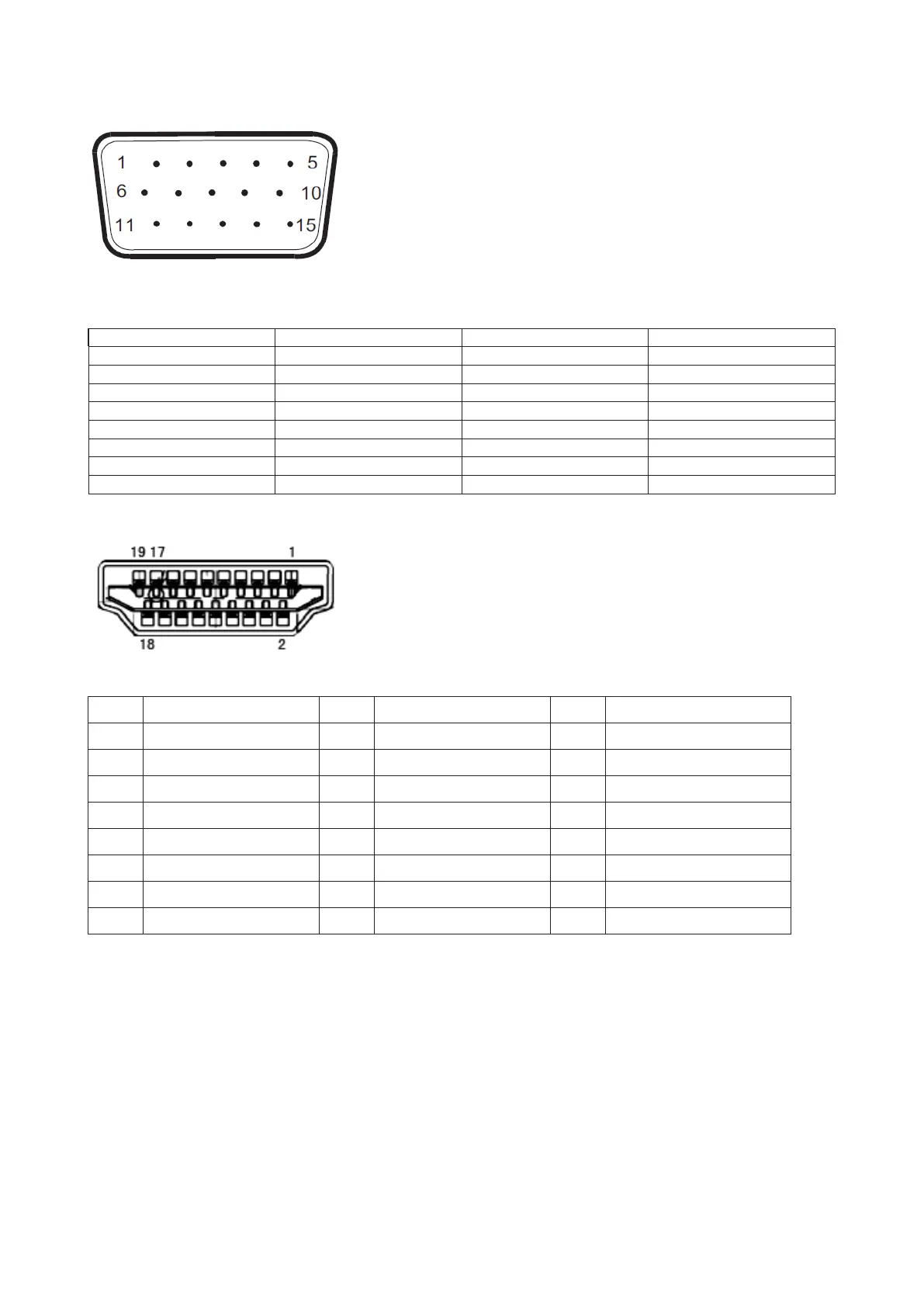

Pin Assignments
15-Pin Color Display Signal Cable
Pin No. Signal Name Pin No. Signal Name
1. Video-Red 9 +5V
2. Video-Green 10 Ground
3. Video-Blue 11 N.C.
4. N.C. 12 DDC-Serial data
5. Detect Cable 13 H-sync
6. GND-R 14 V-sync
7. GND-G 15 DDC-Serial clock
8. GND-B
19-Pin Color Display Signal Cable
Pin No. Signal Name Pin No. Signal Name Pin No. Signal Name
1. TMDS Data 2+ 9. TMDS Data 0- 17. DDC/CEC Ground
2. TMDS Data 2 Shield 10. TMDS Clock + 18. +5V Power
3. TMDS Data 2- 11. TMDS Clock Shield 19. Hot Plug Detect
4. TMDS Data 1+ 12. TMDS Clock-
5. TMDS Data 1Shield 13. CEC
6. TMDS Data 1- 14. Reserved (N.C. on device)
7. TMDS Data 0+ 15. SCL
8. TMDS Data 0 Shield 16. SDA

AOC 24B2XHM Specifications

General

Screen Type	led
Tiltable	yes
OS Compatibility	mac, windows
Screen Size	23.8 inches
Panel Type	ips
Aspect Ratio	16:9
Resolution	1920 x 1080
Native Resolution	1920 x 1080
Refresh Rate	75hz
Horizontal Viewing Angle	178 degrees
Vertical Viewing Angle	178 degrees
Response Time	8 milliseconds
Brightness	250 candela per square meter
Contrast Ratio	20, 000, 000:1
Horizontal Scan Rate	83 kilohertz
VGA Ports	1
Headphones Output	yes
Power Saving Mode	0.5 watts
Power Consumption	19 watts
Width with Stand	21.2 inches
Depth without Stand	6.7 inches
Height without Stand	16.5 inches
Net Weight without Stand	6 pounds
