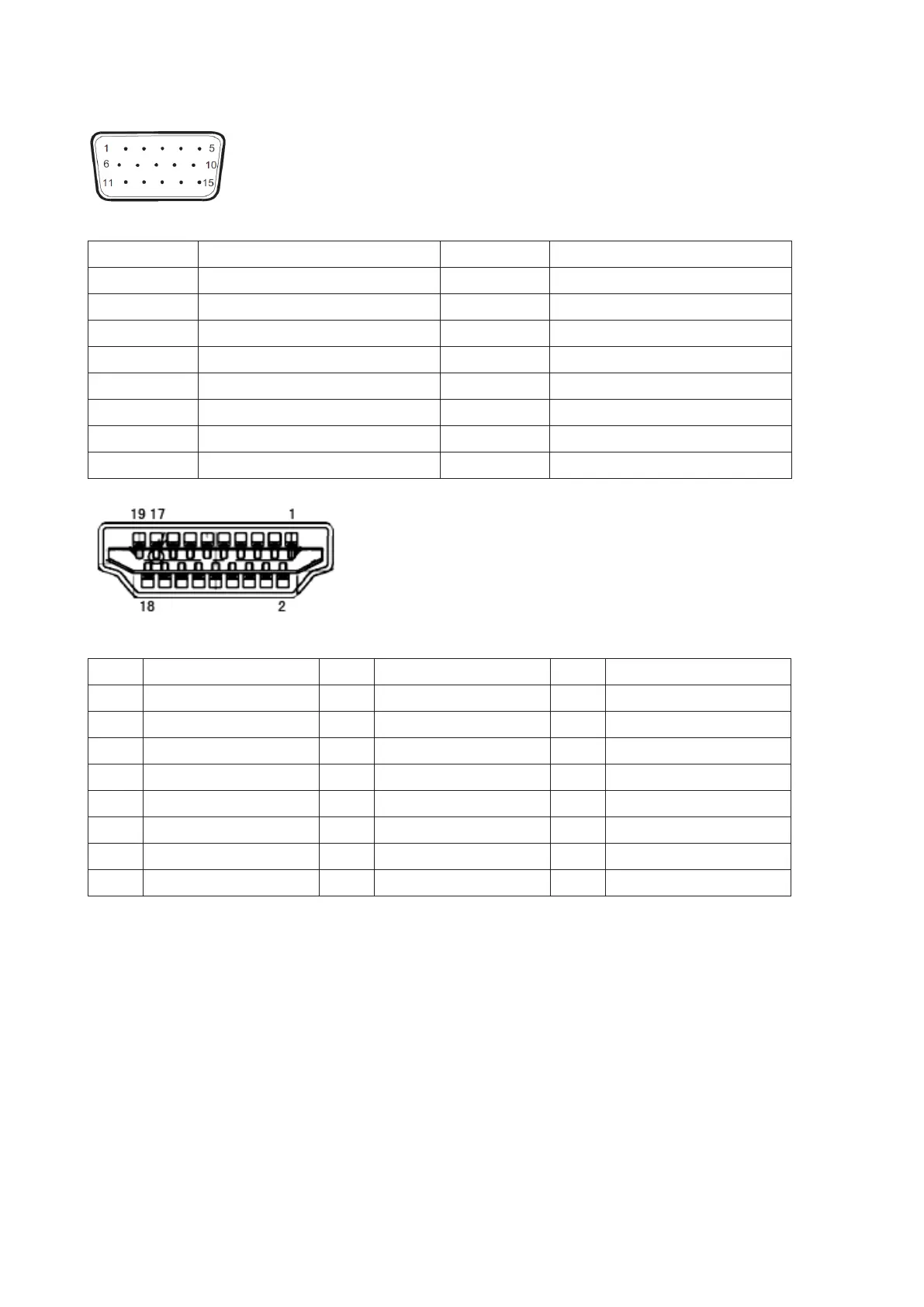

Pin Assignments

15-Pin Color Display Signal Cable

Pin No. Signal Name Pin No. Signal Name

1 Video-Red 9 +5V

2 Video-Green 10 Ground

3 Video-Blue 11 Ground

4 Ground 12 DDC-Serial data

5 Detect Cable 13 H-sync

6 GND-R 14 V-sync

7 GND-G 15 DDC-Serial clock

8 GND-B

19-Pin Color Display Signal Cable

Pin No. Signal Name Pin No. Signal Name Pin No. Signal Name

1. TMDS Data 2+ 9. TMDS Data 0- 17. DDC/CEC Ground

2. TMDS Data 2 Shield 10. TMDS Clock + 18. +5V Power

3. TMDS Data 2- 11. TMDS Clock Shield 19. Hot Plug Detect

4. TMDS Data 1+ 12. TMDS Clock-

5. TMDS Data 1Shield 13. CEC

6. TMDS Data 1- 14. Reserved (N.C. on device)

7. TMDS Data 0+ 15. SCL

8. TMDS Data 0 Shield 16. SDA

Questions and Answers:

Need help?

Do you have a question about the AOC 24B3HM and is the answer not in the manual?

AOC 24B3HM Specifications

General

Panel type	VA
Pixel pitch	0.275 x 0.275 mm
Screen shape	Flat
Pixel density	93 ppi
Backlight type	W-LED
Display diagonal	23.8 \
Surface hardness	6H
Anti-glare screen	Yes
Adobe RGB coverage	104 %
Display technology	LED
Native aspect ratio	16:9
Maximum refresh rate	75 Hz
NTSC coverage (typical)	106 %
sRGB coverage (typical)	122 %
Contrast ratio (dynamic)	20000000:1
Contrast ratio (typical)	3000:1
Display number of colors	16.7 million colors
Display diagonal (metric)	60.4 cm
Display brightness (typical)	250 cd/m²
AMD FreeSync type	FreeSync Premium Pro
Brand-specific features	False
Exterior finish type	Matt
Ethernet LAN (RJ-45) ports	0
Mean time between failures (MTBF)	50000 h
Certification	CB, CE, TUV-GS-MARK, EAC
Front bezel color	Black
Market positioning	Office
Tilt angle range	-5 - 23 °
Cable lock slot type	Kensington
Number of OSD languages	19
Panel mounting interface	100 x 100 mm
On Screen Display (OSD) languages	CHI (SIMPL), CHI (TR), CRO, CZE, DEU, DUT, ENG, ESP, FIN, FRE, ITA, JPN, KOR, POL, POR, RUS, SWE, TUR, UKR
HDMI version	1.4
Headphone connectivity	3.5 mm
AC input voltage	100 - 240 V
Power supply type	Internal
AC input frequency	50 - 60 Hz
Socket connector type	C5
Power consumption (typical)	- W
Package type	Box
Package depth	126 mm
Package width	614 mm
Package height	394 mm
Package weight	5020 g
Cables included	AC, HDMI
HDMI cable length	1.5 m
