Connecting the Monitor

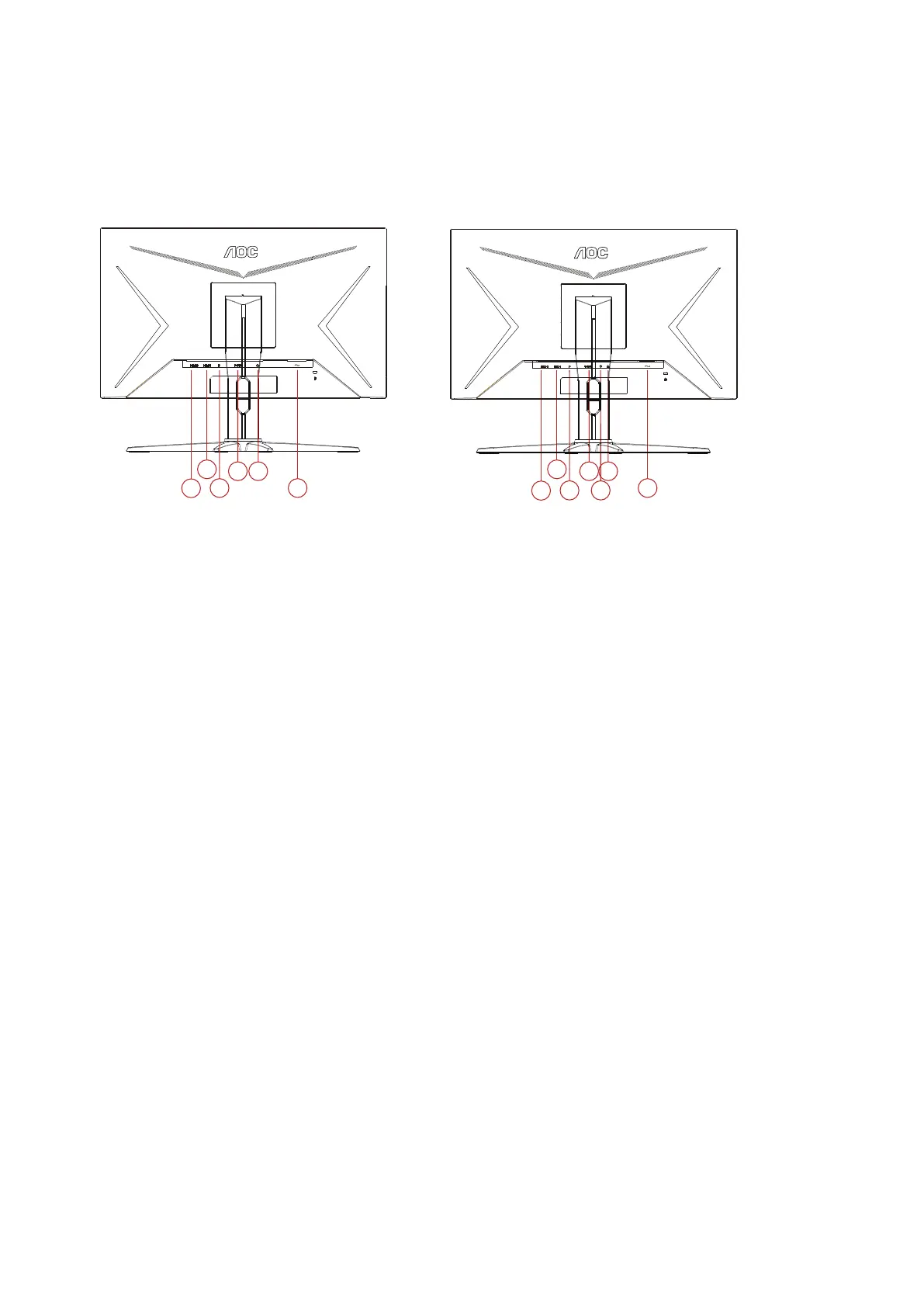

Cable Connections In Back of Monitor and Computer:
7
1
2
3
4 6
5
7
1
2
3
4 6
24G2SE 24G2SAE
1. HDMI-2
2. HDMI-1
3. DP
4. D-SUB
5. Audio in
6. Earphone
7. Power
Connect to PC
1. Connect the power cord to the back of the display rmly.
2. Turn o󰀨 your computer and unplug its power cable.
3. Connect the display signal cable to the video connector on the back of your computer.
4. Plug the power cord of your computer and your display into a nearby outlet.
5. Turn on your computer and display.
If your monitor displays an image, installation is complete. If it does not display an image, please refer Troubleshooting.
To protect equipment, always turn o󰀨 the PC and LCD monitor before connecting.

AOC 24G2SAE Specifications

General

HDMI version	1.4
Microphone in	Yes
Built-in USB hub	No
DisplayPort version	1.2
Headphone connectivity	3.5 mm
Certification	ISO 9241-307
Product color	Black, Red
Front bezel color	Black/Red
Market positioning	Gaming
AMD FreeSync type	FreeSync Premium
AMD FreeSync refresh rate range	48 - 165 Hz
Panel type	VA
Screen shape	Flat
Backlight type	W-LED
Display diagonal	23.8 \
Surface hardness	3H
Anti-glare screen	Always gives an optimal view, even in direct sunlight.
Adobe RGB coverage	94 %
Display technology	-
Native aspect ratio	16:9
Horizontal scan range	30 - 160 kHz
Supported video modes	1080p
NTSC coverage (typical)	96 %
sRGB coverage (typical)	126 %
Contrast ratio (typical)	3000:1
Display number of colors	16.7 million colors
Display diagonal (metric)	60.5 cm
Display brightness (typical)	350 cd/m²
Supported graphics resolutions	1920 x 1080 (HD 1080)
Package type	Box
Package depth	184 mm
Package width	605 mm
Package height	492 mm
Package weight	5600 g
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Energy efficiency scale	A to G
Power consumption (off)	0.3 W
Power consumption (typical)	22 W
Tilt angle range	-5 - 23 °
Cable lock slot type	Kensington
Panel mounting interface	100 x 100 mm
On Screen Display (OSD) languages	CHI (SIMPL), CHI (TR), CRO, CZE, DEU, DUT, ENG, ESP, FIN, FRE, ITA, JPN, KOR, POL, POR, RUS, SWE, TUR, UKR
RMS rated power	2 W
Cables included	DisplayPort, HDMI
HDMI cable length	1.8 m
Exterior finish type	Matt
Harmonized System (HS) code	85285210

Weight and Dimensions

Depth (with stand)	227.4 mm
Width (with stand)	539 mm
Height (with stand)	421 mm
Weight (with stand)	3700 g
Depth (without stand)	47.2 mm
Width (without stand)	539.05 mm
Height (without stand)	322.1 mm
