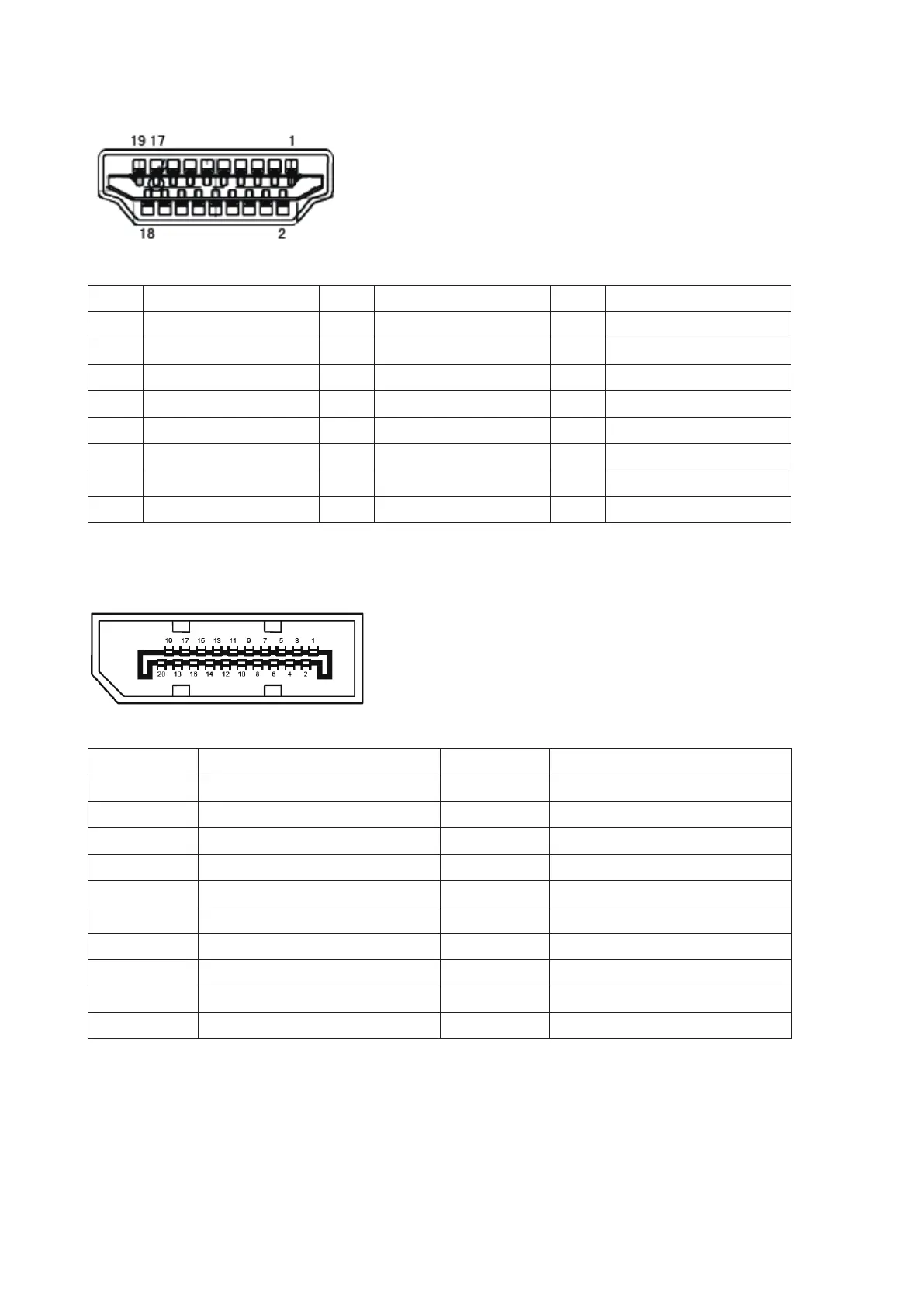

Pin Assignments
19-Pin Color Display Signal Cable
Pin No. Signal Name Pin No. Signal Name Pin No. Signal Name
1. TMDS Data 2+ 9. TMDS Data 0- 17. DDC/CEC Ground
2. TMDS Data 2 Shield 10. TMDS Clock + 18. +5V Power
3. TMDS Data 2- 11. TMDS Clock Shield 19. Hot Plug Detect
4. TMDS Data 1+ 12. TMDS Clock-
5. TMDS Data 1Shield 13. CEC
6. TMDS Data 1- 14. Reserved (N.C. on device)
7. TMDS Data 0+ 15. SCL
8. TMDS Data 0 Shield 16. SDA
20-Pin Color Display Signal Cable
Pin No. Signal Name Pin No. Signal Name
1 ML_Lane 3 (n) 11 GND
2 GND 12 ML_Lane 0 (p)
3 ML_Lane 3 (p) 13 CONFIG1
4 ML_Lane 2 (n) 14 CONFIG2
5 GND 15 AUX_CH(p)
6 ML_Lane 2 (p) 16 GND
7 ML_Lane 1 (n) 17 AUX_CH(n)
8 GND 18 Hot Plug Detect
9 ML_Lane 1 (p) 19 Return DP_PWR
10 ML_Lane 0 (n) 20 DP_PWR

AOC 24G2SAE Specifications

General

HDMI version	1.4
Microphone in	Yes
Built-in USB hub	No
DisplayPort version	1.2
Headphone connectivity	3.5 mm
Certification	ISO 9241-307
Product color	Black, Red
Front bezel color	Black/Red
Market positioning	Gaming
AMD FreeSync type	FreeSync Premium
AMD FreeSync refresh rate range	48 - 165 Hz
Panel type	VA
Screen shape	Flat
Backlight type	W-LED
Display diagonal	23.8 \
Surface hardness	3H
Anti-glare screen	Always gives an optimal view, even in direct sunlight.
Adobe RGB coverage	94 %
Display technology	-
Native aspect ratio	16:9
Horizontal scan range	30 - 160 kHz
Supported video modes	1080p
NTSC coverage (typical)	96 %
sRGB coverage (typical)	126 %
Contrast ratio (typical)	3000:1
Display number of colors	16.7 million colors
Display diagonal (metric)	60.5 cm
Display brightness (typical)	350 cd/m²
Supported graphics resolutions	1920 x 1080 (HD 1080)
Package type	Box
Package depth	184 mm
Package width	605 mm
Package height	492 mm
Package weight	5600 g
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Energy efficiency scale	A to G
Power consumption (off)	0.3 W
Power consumption (typical)	22 W
Tilt angle range	-5 - 23 °
Cable lock slot type	Kensington
Panel mounting interface	100 x 100 mm
On Screen Display (OSD) languages	CHI (SIMPL), CHI (TR), CRO, CZE, DEU, DUT, ENG, ESP, FIN, FRE, ITA, JPN, KOR, POL, POR, RUS, SWE, TUR, UKR
RMS rated power	2 W
Cables included	DisplayPort, HDMI
HDMI cable length	1.8 m
Exterior finish type	Matt
Harmonized System (HS) code	85285210

Weight and Dimensions

Depth (with stand)	227.4 mm
Width (with stand)	539 mm
Height (with stand)	421 mm
Weight (with stand)	3700 g
Depth (without stand)	47.2 mm
Width (without stand)	539.05 mm
Height (without stand)	322.1 mm
