Connecting the Monitor

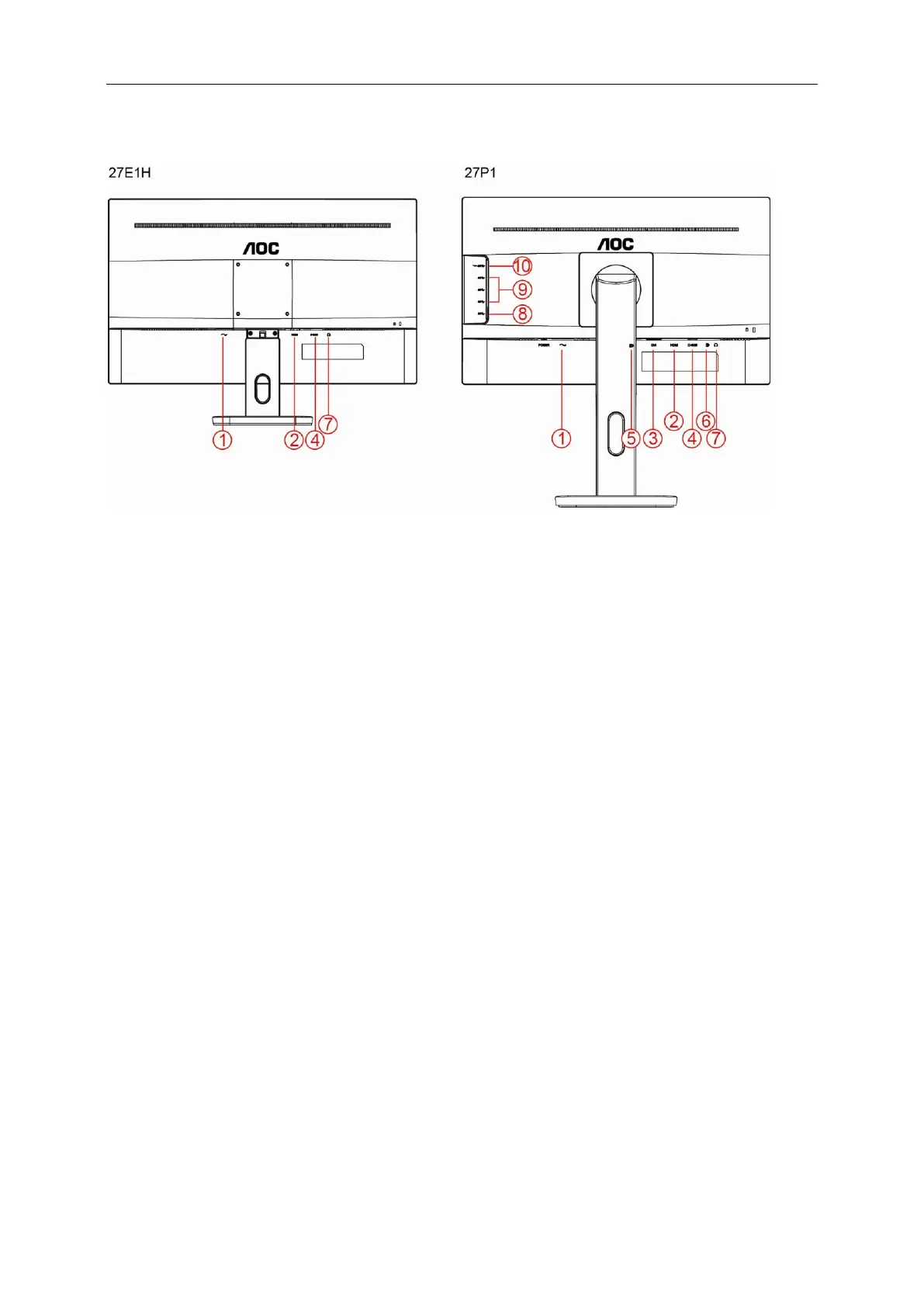

Cable Connections In Back of Monitor and Computer:

1 Power

2 HDMI

3 DVI

4 Analog (D-Sub 15-Pin VGA cable)

5 DP

6 Audio in

7 Earphone out

8 USB upstream

9 USB downstream

10 USB charging

To protect equipment, always turn off the PC and LCD monitor before connecting.

1. Connect the power cable to the AC port on the back of the monitor.

2. Connect one end of the 15-pin D-Sub cable to the back of the monitor and connect the other end to the

computer's D-Sub port.

3. (Optional – Requires a video card with HDMI port) - Connect one end of the HDMI cable to the back of the

monitor and connect the other end to the computer’s HDMI port.

4. (Optional – Requires a video card with DVI port) - Connect one end of the DVI cable to the back of the monitor

and connect the other end to the computer’s DVI port.

5. (Optional – Requires a video card with DP port) - Connect one end of the DP cable to the back of the monitor

and connect the other end to the computer’s DP port.

6. (Optional – Requires a video card with USB port) - Connect one end of the USB cable to the back of the

monitor and connect the other end to the computer’s USB port.

7. (Optional)Connect the audio cable to audio in port on the back of the monitor

8. Turn on your monitor and computer.

9. Video content supporting resolution: VGA/DVI/HDMI/DP

If your monitor displays an image, installation is complete. If it does not display an image, please refer

Troubleshooting.

Questions and Answers:

Need help?

Do you have a question about the AOC 27E1H and is the answer not in the manual?
