AOC 27E1H User Manual

50

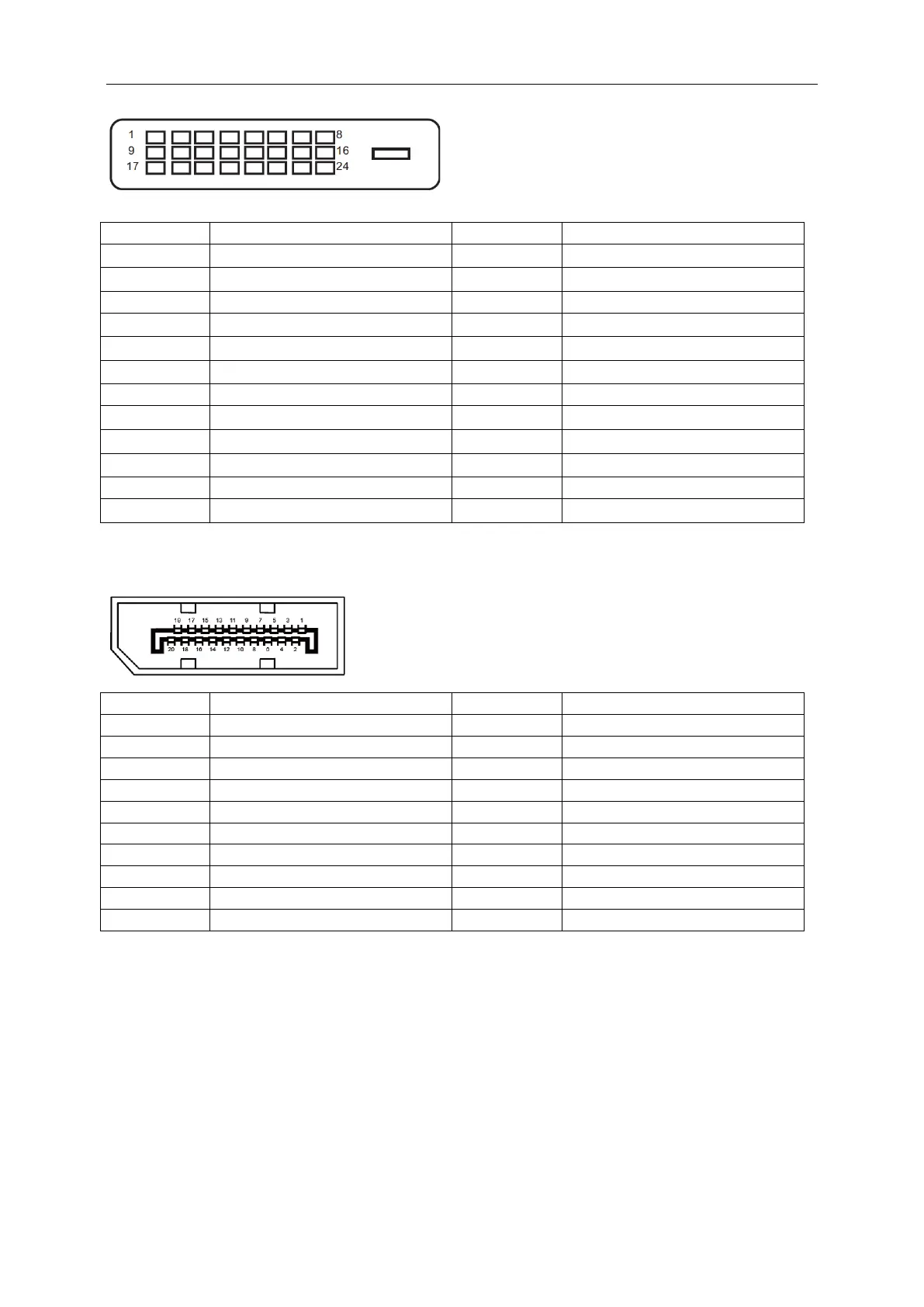

24-Pin Color Display Signal Cable
Pin No.
Signal Name
Pin No.
Signal Name
1
TMDS data 2－
13
TMDS data 3＋
2
TMDS data 2＋
14
＋5V Power
3
TMDS data 2/4 Shield
15
Ground (for+5V)
4
TMDS data 4－
16
Hot Plug Detect
5
TMDS data 4＋
17
TMDS data 0－
6
DDC Clock
18
TMDS data 0＋
7
DDC Data
19
TMDS data 0/5 Shield
8
N.C.
20
TMDS data 5－
9
TMDS data 1－
21
TMDS data 5＋
10
TMDS data 1＋
22
TMDS Clock Shield
11
TMDS data 1/3 Shield
23
TMDS Clock +
12
TMDS data 3－
24
TMDS Clock －
20-Pin Color Display Signal Cable
Pin No.
Signal Name
Pin No.
Signal Name
1
ML Lane 3(n)
11
GND
2
GND
12
ML Lane 0(p)
3
ML Lane 3(p)
13
CONFIG1
4
ML Lane 2(n)
14
CONFIG2
5
GND
15
AUX CH(p)
6
ML Lane 2(p)
16
GND
7
ML Lane 1(n)
17
AUX CH(n)
8
GND
18
Hot Plug Detect
9
ML Lane 1(p)
19
Return OP PWR
10
ML Lane 0(n)
20
DP PWR

AOC 27E1H Specifications

General

Color	black
Screen Type	led
Wall Mount	100mm x 100mm
Webcam	no
OS Compatibility	windows
Screen Size	27 inches
Panel Type	ips
Aspect Ratio	16:9
Resolution	1920 x 1080
Native Resolution	1920 x 1080
Refresh Rate	60hz
Horizontal Viewing Angle	178 degrees
Vertical Viewing Angle	178 degrees
Response Time	5 milliseconds
Brightness	250 candela per square meter
Contrast Ratio	20, 000, 000:1
Synchronization	not applicable
HDR	no
Built-In Speakers	no
HDMI Ports	1
VGA Ports	1
Headphones Output	yes
Power Consumption	26 watts
Width with Stand	24.7 inches
Depth without Stand	8 inches
Height without Stand	18.1 inches
Net Weight without Stand	10.2 pounds
