Service Manual AOC2241VG
13
4. Panel Feature
The Panel-LM220WE1-TLP1 is a 22 inch wide TFT-LCD module with an intergral CCFL Backlght unit and a 30-pin
2ch –LVDS interface . This module supports 1680×1050 WSXGA+ resolution. and displays up to 16.7 millions
colors.The converter module for the Backlight Unit is not built in.

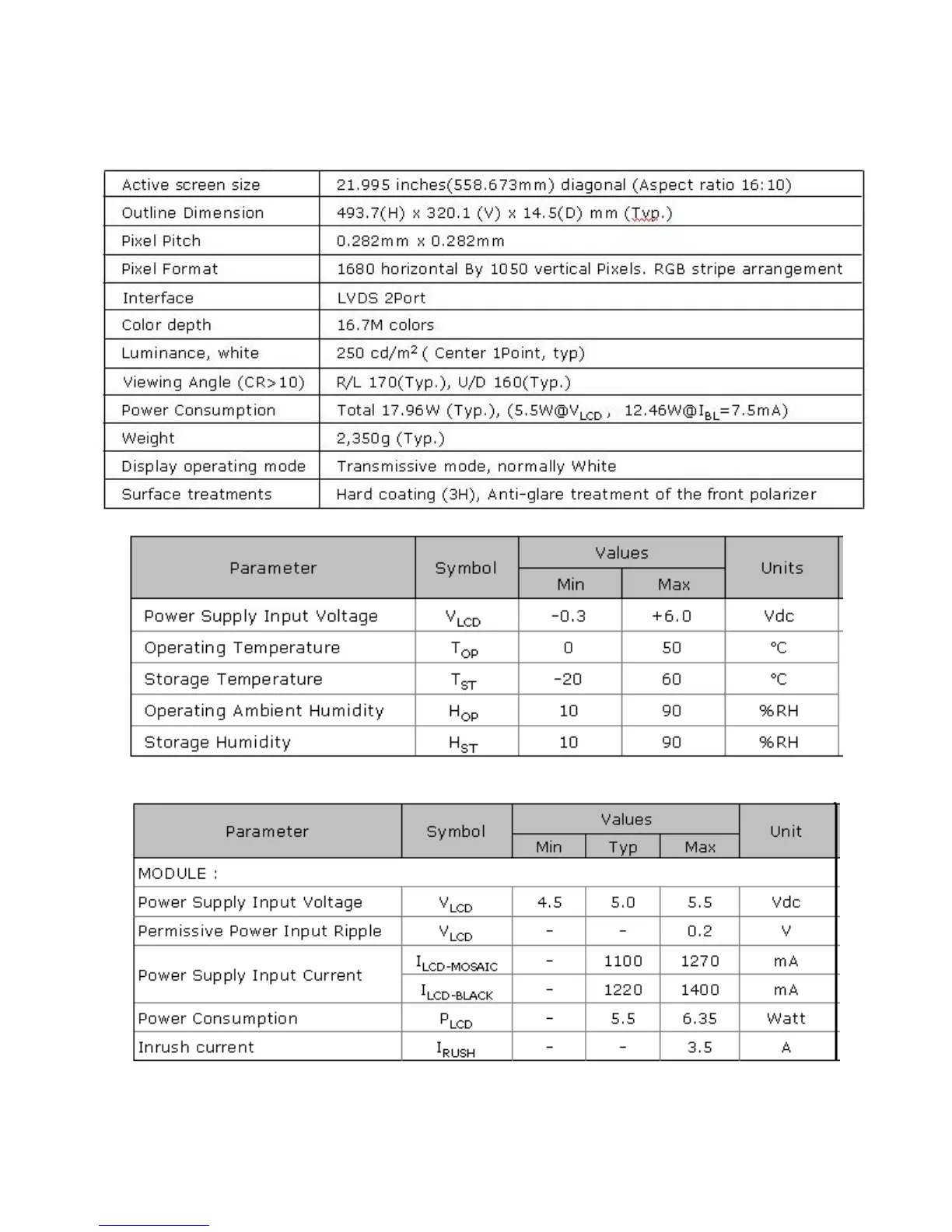

4.1 General Specifications
4.2 Electrical Absolute Ratings
4.3 Electrical Characteristics
a) TFT LCD module
To Next Page
