AOC CQ32G2SE User Manual

24

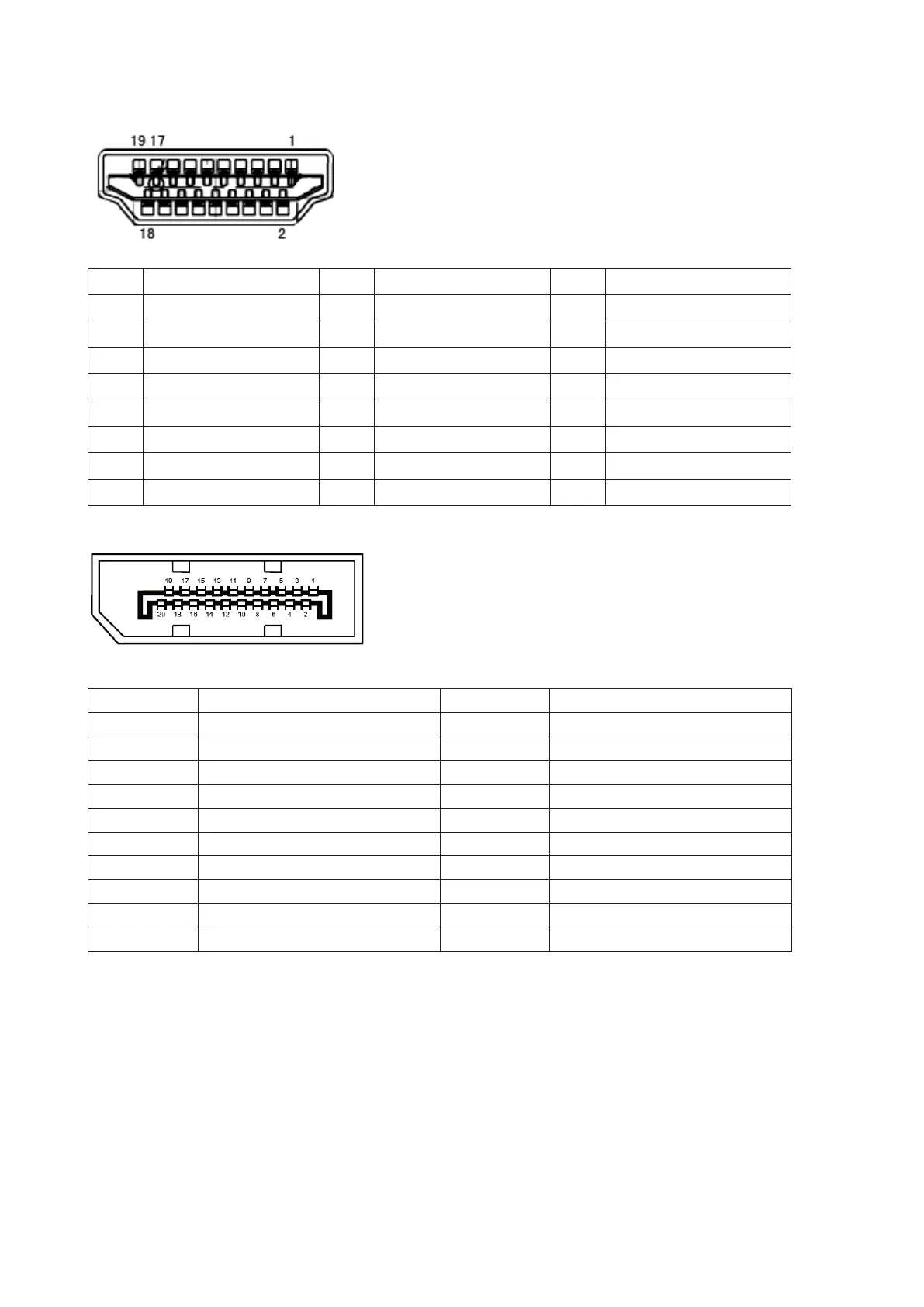

Pin Assignments
Pin No. Signal Name Pin No. Signal Name Pin No. Signal Name
1. TMDS Data 2+ 9. TMDS Data 0- 17. DDC/CEC Ground
2. TMDS Data 2 Shield 10. TMDS Clock + 18. +5V Power
3. TMDS Data 2- 11. TMDS Clock Shield 19. Hot Plug Detect
4. TMDS Data 1+ 12. TMDS Clock-
5. TMDS Data 1Shield 13. CEC
6. TMDS Data 1- 14. Reserved (N.C. on device)
7. TMDS Data 0+ 15. SCL
8. TMDS Data 0 Shield 16. SDA
20-Pin Color Display Signal Cable
Pin No. Signal Name Pin No. Signal Name
1 ML_Lane 3 (n) 11 GND
2 GND 12 ML_Lane 0 (p)
3 ML_Lane 3 (p) 13 CONFIG1
4 ML_Lane 2 (n) 14 CONFIG2
5 GND 15 AUX_CH(p)
6 ML_Lane 2 (p) 16 GND
7 ML_Lane 1 (n) 17 AUX_CH(n)
8 GND 18 Hot Plug Detect
9 ML_Lane 1 (p) 19 Return DP_PWR
10 ML_Lane 0 (n) 20 DP_PWR

AOC CQ32G2SE Specifications

General

HD type	2K Ultra HD
Panel type	VA
Color depth	8 bit
Pixel pitch	0.2724 x 0.2724 mm
Aspect ratio	4:3, 16:9
Pixel density	94 ppi
Backlight type	W-LED
Display surface	Matt
Display diagonal	31.5 \
Screen curvature	1500 mm
Surface hardness	3H
Anti-glare screen	Yes
Adobe RGB coverage	90 %
Display technology	LED
Native aspect ratio	16:9
Supported video modes	1080p, 1440p
NTSC coverage (typical)	85 %
Screen curvature rating	1500R
Viewable size, vertical	392.256 mm
sRGB coverage (typical)	121 %
Contrast ratio (dynamic)	80000000:1
Contrast ratio (typical)	3000:1
Display number of colors	16.7 million colors
Display diagonal (metric)	80.01 cm
Viewable size, horizontal	697.344 mm
Display brightness (typical)	250 cd/m²
Supported graphics resolutions	2560 x 1440
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Energy efficiency scale	A to G
Power consumption (off)	0.3 W
Power consumption (typical)	49 W
AMD FreeSync type	FreeSync Premium
AMD FreeSync refresh rate range	48 - 165 Hz
Feet color	Black
Certification	ISO 9241-307
Product color	Black, Red
Front bezel color	Black/Red
Heavy metals free	Hg (mercury)
Market positioning	Gaming
RMS rated power	5 W
Number of speakers	2
Tilt angle range	-5 - 23 °
Cable lock slot type	Kensington
Number of OSD languages	16
Panel mounting interface	100 x 100 mm
On Screen Display (OSD) languages	CHI (SIMPL), CHI (TR), CRO, CZE, DEU, DUT, ENG, ESP, FIN, FRE, ITA, JPN, KOR, POL, POR, RUS, SWE, TUR, UKR
DisplayPort version	1.2
Headphone connectivity	3.5 mm
VGA (D-Sub) ports quantity	0
Cables included	AC, DisplayPort, HDMI
DisplayPort cable length	1.8 m
Package type	Box
Package depth	225 mm
Package width	813 mm
Package height	607 mm
Package weight	10500 g
Sustainability certificates	RoHS, ENERGY STAR
Exterior finish type	Textured
Recyclable packaging material	100 %
Harmonized System (HS) code	85285210

Weight and Dimensions

Depth (with stand)	244.9 mm
Height (with stand)	524.4 mm
Weight (with stand)	7500 g
Depth (without stand)	84.98 mm
Width (without stand)	709.9 mm
Height (without stand)	425.5 mm
