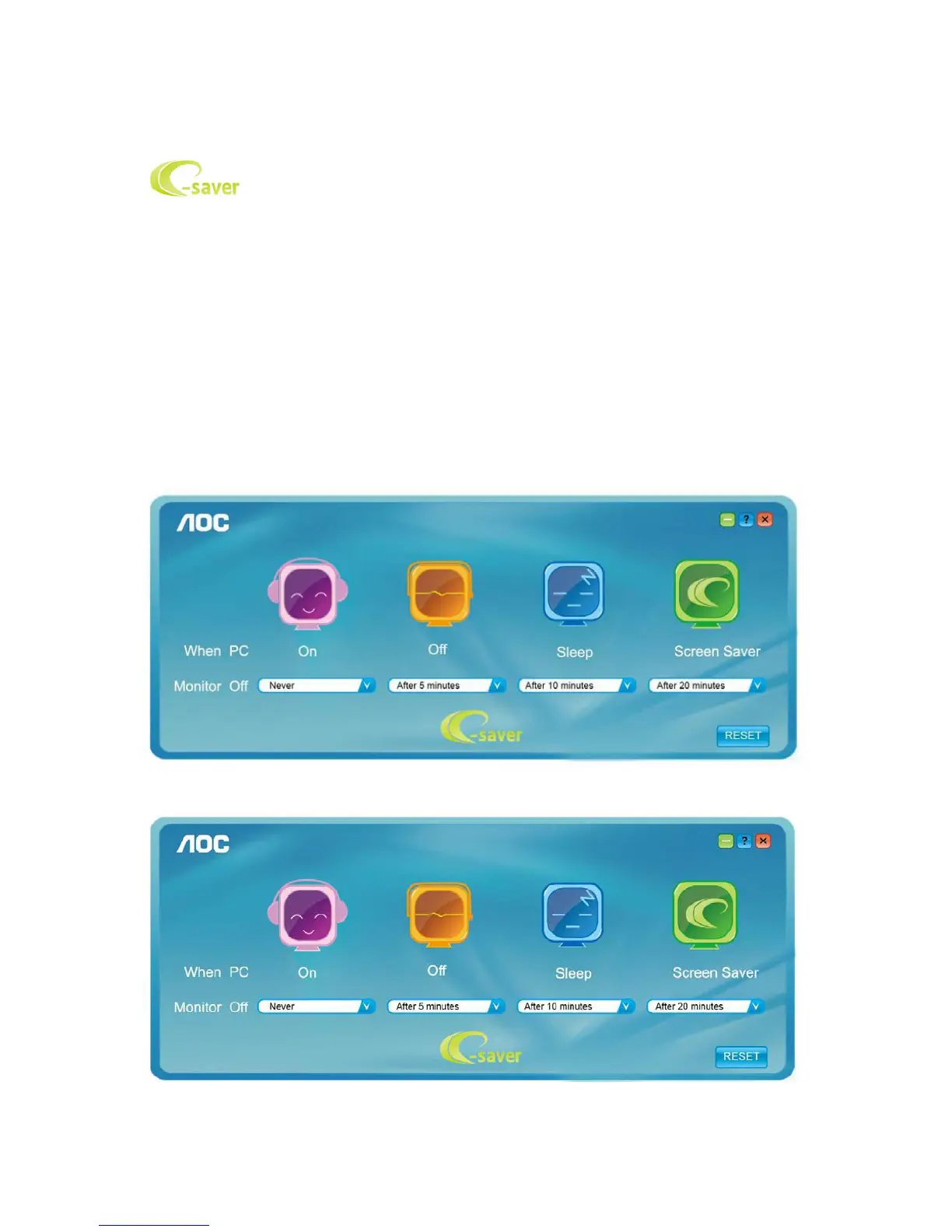

AOC E2050SN - 10 Monitor Exploded View

47
Q40G 58162435A
LABEL
Q45G 76 28 H A
P.E. BAGx320x210x0.04
756GHBCB A5036
MAIN BOARD-CBPCAR9A1H2
SMTCA-U402
100GARMA004W11
MCU ASSY-056G2233501
CN408
033G3802 6B Y L
WAFER
CN404
033G3802 9B Y L
CONN 2.0 9P
CN403
033G801930F CH L
FFC CONN 1.0mm 30P R/A 34mm 6mm
CN101
088G 35315FVXH
D-SUB CONN V/T 15P BLUE 1*1 V/T 30.8
X401
093G 22 53 YC
Crystal 14.31818MHz/32PF 49U/S YC
709G4737 HM002
COMSUPTIVE ASS'Y
H40G 45762429A
LABEL
LED001
081G 12 1F GH
LED GREEN/YELLOW GHZYG603D2-5B
CN001
095G820H 6TE10
HARNESS 6P(SANW)-6P(2008) 120
709G4747 HM001
COMSUPTIVE ASS'Y
GND1
009G6005 1
GND TERMINAL
U902
056G 139 3A
PC123Y22FZOF SHARP
NR901
061G 5810T
RST NTCR 8 OHM +-20% 4A 13mm THINKING
C908
063G107K474 6S
0.47UF +-10%
C809
067G 415330 9K
EC 33UF 20% 100V ED 8*12
C907
067G 42Z68015K
EC 68UF 20% 450V 12.5*50 2000 hr
L901
073G 174 65 H2
LINE FILTER 30mH MIN
L906
073G 253191 H
IND CHOKE 1.1uH DADON
L801
073G 253214 DN
CHOKE COIL 47UH 10% LZ.CC013.G01 2.5A
T901
080GL22T 3 N3
X'FMR 490UH 7% 4UH YUVA-1656
CN901
087G 501 48 S
AC SOCKET 3PIN + 3 Hole
D902
093G 60335
DIODE SR515 5A/150V DO-201AD
D901
093G 60335
DIODE SR515 5A/150V DO-201AD
CN902
095G 825 9T905
HARNESS 9P-9P 80
0Q1G 340 8140
SCREW 4.0x8.0
CN804
311GW200A06ABX
WAFER 2.0mm 6P
705GHA57006
Q901 ASS"Y
705GHA93006
D906 ASS"Y
709G4744 HM001
CONSUMPTIVE ASS'Y
H40G 45762429A
LABEL
BD901
093G 50460515
BRIDGE KBP308G-C 3A 800V KBP
Q55G 100625
TIN STICK_LOW ARGENTUM
C427
067G305M1013PB
EC 100uF M 16V 6.3*7mm JH CD70H
C426
067G305M1013PB
EC 100uF M 16V 6.3*7mm JH CD70H
C421
067G305M1013PB
EC 100uF M 16V 6.3*7mm JH CD70H
C423
067G305M1013PB
EC 100uF M 16V 6.3*7mm JH CD70H
U401
056G 562431
SCALER RTD2270LW-CG LQFP-64
U406
056G 563149
IC G903T63UF 0.6A/3.3V SOT-223
U102
056G 662 48
ESD PROTECT AZC399-04S.R7G SOT23-6L
U103
056G 662 48
ESD PROTECT AZC399-04S.R7G SOT23-6L
