26
4.3 Panel Specification
4.3.1 General Features
The M215HW01 model is a 21.5 inch wide TFT-LCD module with LED Backlight Unit and a 30-pin 2ch-LVDS
interface. This module supports 1920 x 1080 Full HD (16:9 wide screen) mode and displays up to 16.7 millions
colors. All input signals are 2-channel LVDS interface .

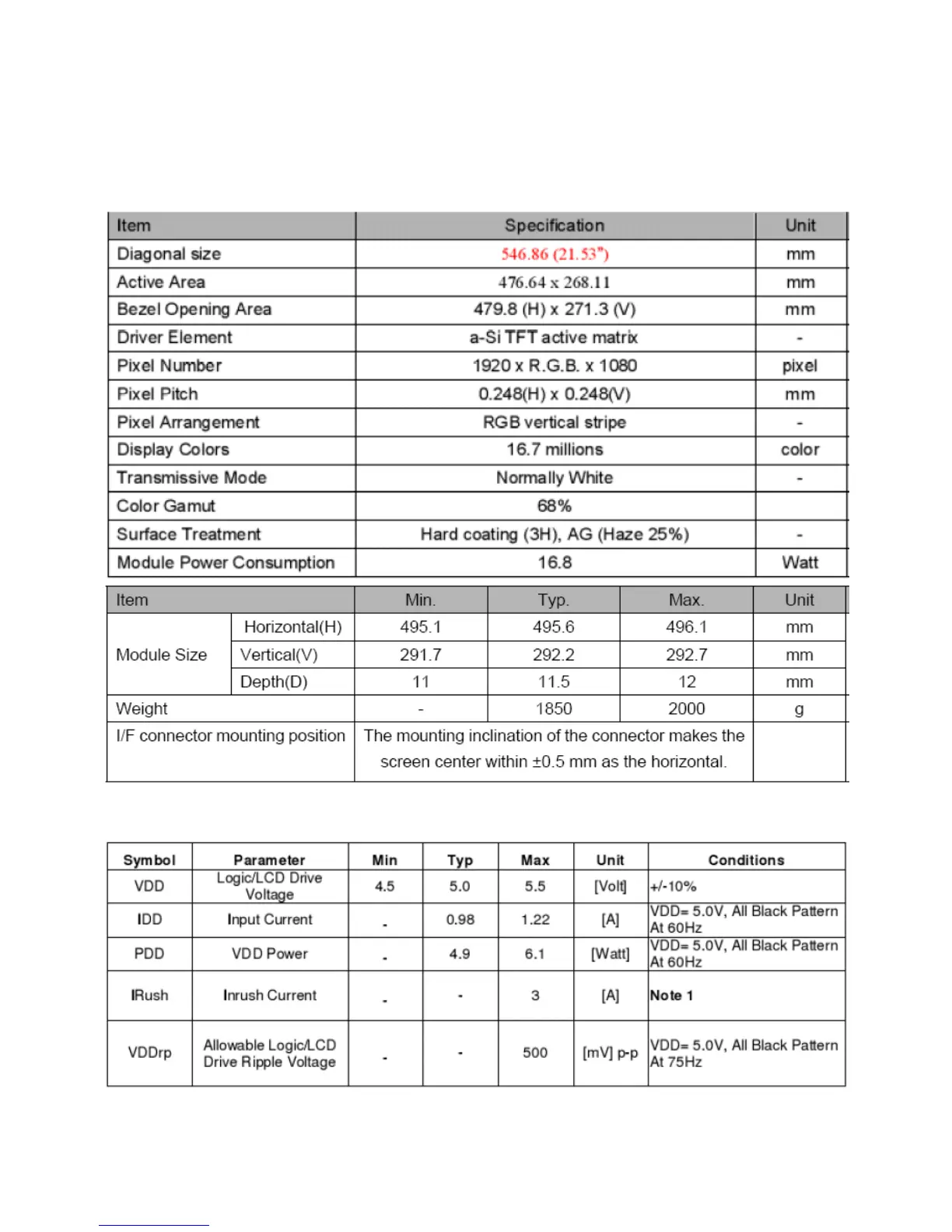

4.3.2 GENERAL SPECIFICATIONS
4.3.3 Electrical Characteristics
Electrical characteristics
Note 1: Measurement conditions:
The duration of rising time of power input is 470us.
