AOC e2460Swd Service Manual

Service Manual E2460Swd
24
5. Panel Feature
LCM236HGE02A01130F(CMI： M236HGE-L20) is a 23.6‖ TFT Liquid Crystal Display module with WLED
Backlight unit and 30Pins 2ch-LVDS interface. This module supports 1920 x 1080 Full HD mode and can
display up to 16.7M colors.
FEATURES
- Contrast ratio 1000:1
- Response time 5ms.
- Brightness 250nits(Typ.)
- Color saturation NTSC 72%.
- WXGA (1920 x 1080 pixels) resolution.
- LVDS (Low Voltage Differential Signaling) interface.
- RoHS compliance.

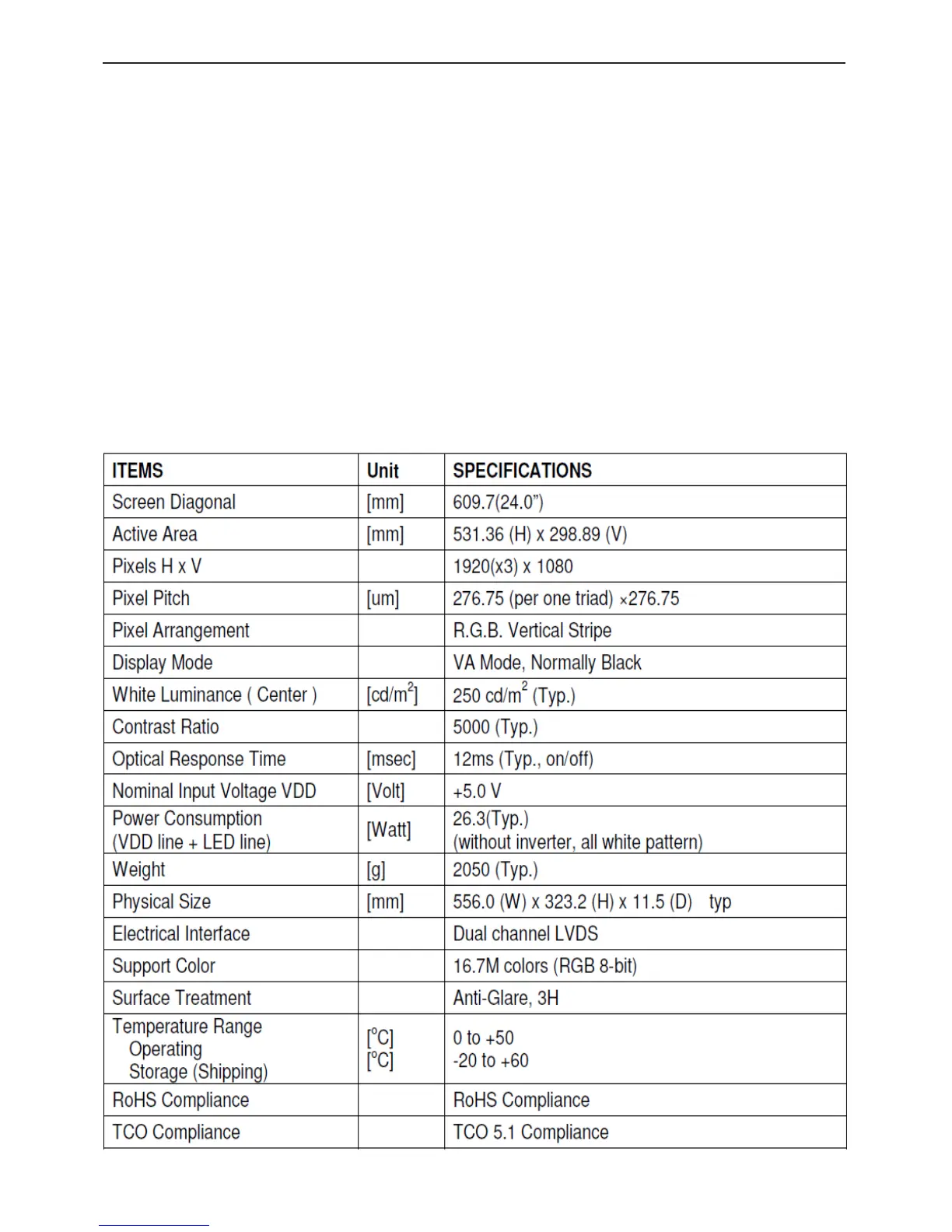

5.1 General Features
The following items are characteristics summary on the table under 25℃ condition:
