AOC E2798SH - Pin Assignments

49

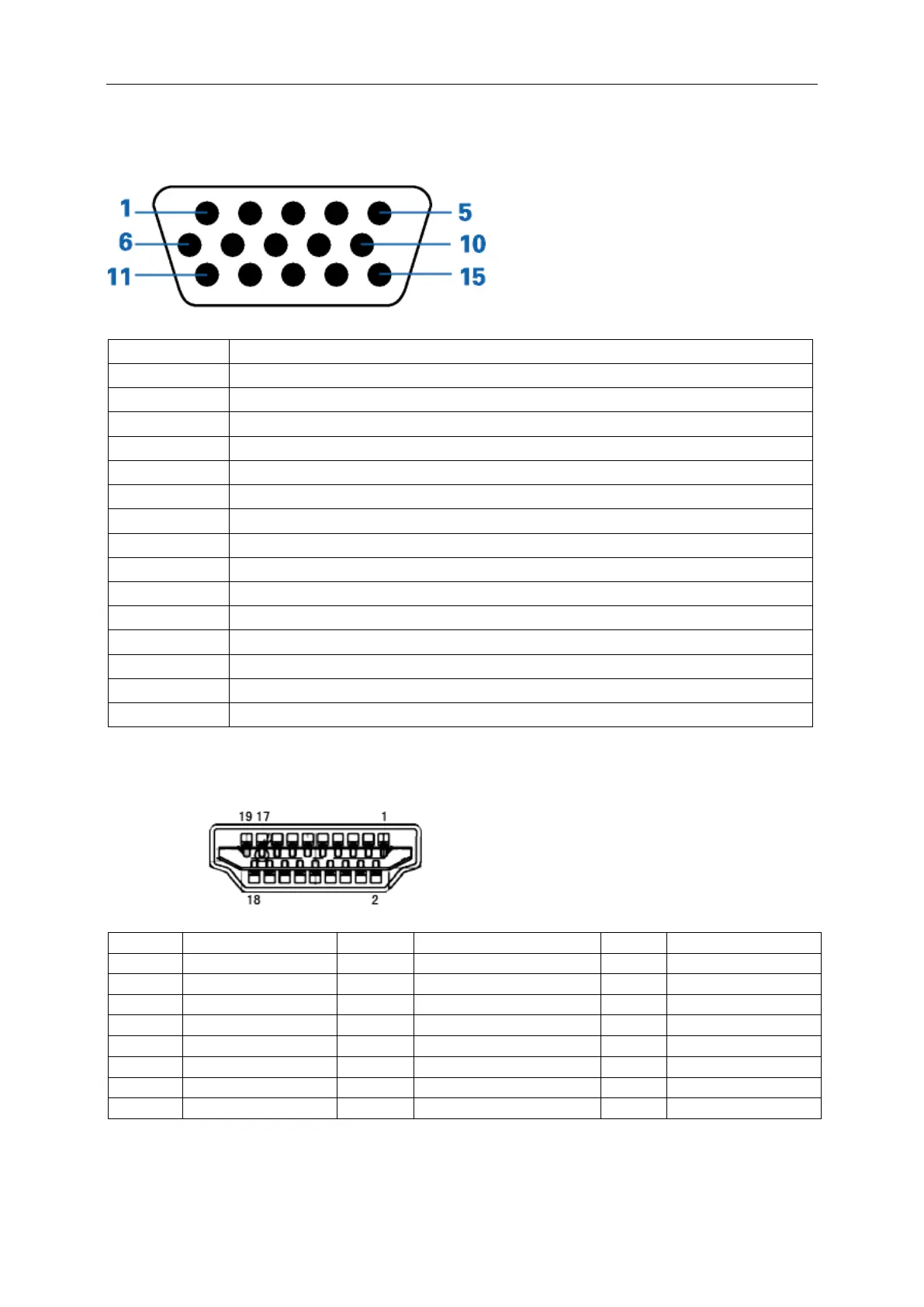

Pin Assignments
15-Pin Color Display Signal Cable
Pin NO.
Signal Name
1
Video-Red
2
Video-Green
3
Video-Blue
4
N.C.
5
Detect Cable
6
GND-R
7
GND-G
8
GND-B
9
+5V
10
Ground
11
N.C.
12
DDC-Serial data
13
H-sync
14
V-sync
15
DDC-Serial clock
19-Pin Color Display Signal Cable
Pin No.
Signal Name
Pin No.
Signal Name
Pin No.
Signal Name
1
TMDS Data 2+
9
TMDS Data 0-
17
DDC/CEC Ground
2
TMDS Data 2 Shield
10
TMDS Clock +
18
+5V Power
3
TMDS Data 2-
11
TMDS Clock Shield
19
Hot Plug Detect
4
TMDS Data 1+
12
TMDS Clock -
5
TMDS Data 1Shield
13
CEC
6
TMDS Data 1-
14
Reserved (N.C. on device)
7
TMDS Data 0+
15
SCL
8
TMDS Data 0 Shield
16
SDA
