AOC E950SW User Manual

19

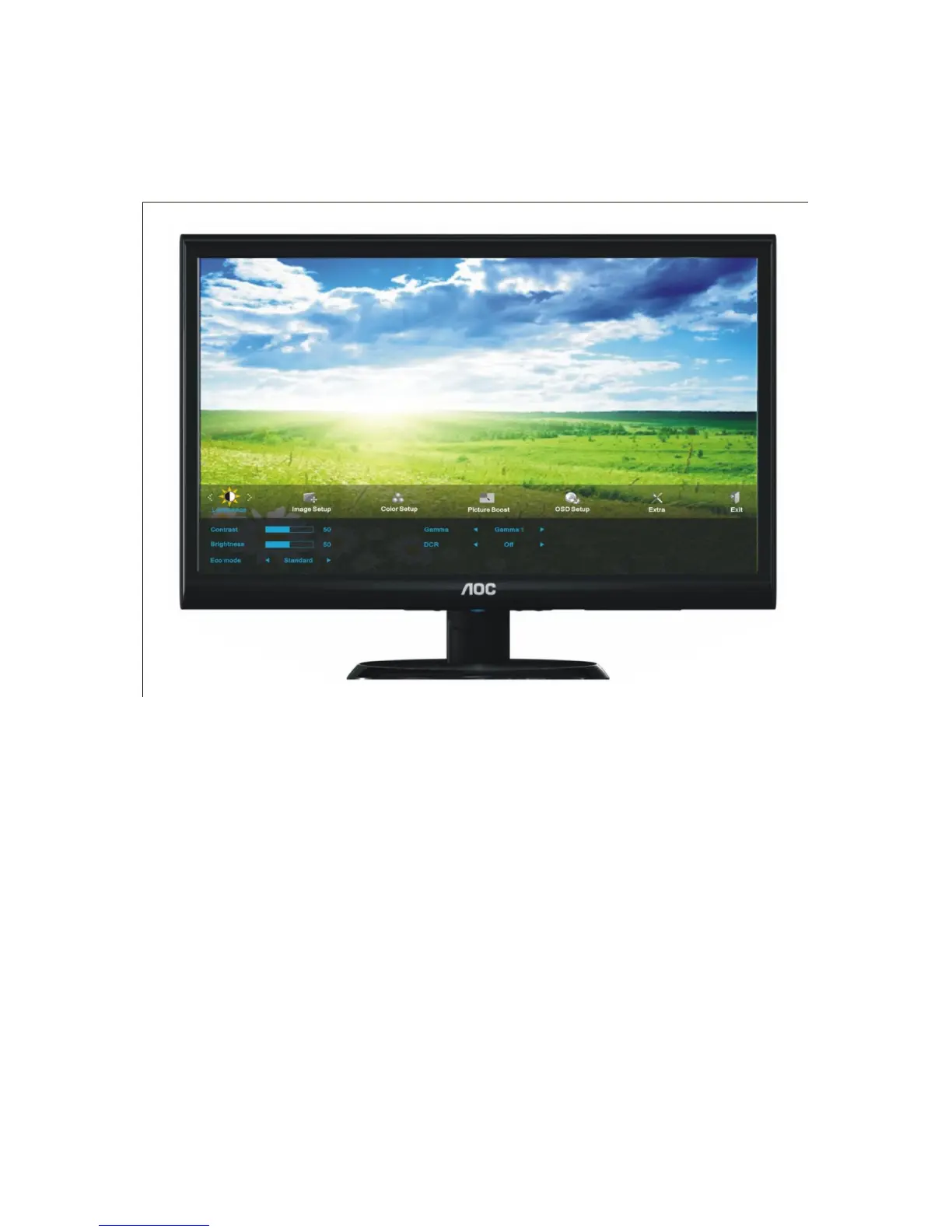

OSD Setting
Basic and simple instruction on the control keys.
1) Press the MENU-button to activate the OSD window.
2) Press - or + to navigate through the functions. Once the desired function is highlighted, press the MENU-button
to activate it . press - or + to navigate through the sub-menu functions. Once the desired function is highlighted,
press MENU-button to activate it.
3) Press - or + to change the settings of the selected function. Press AUTO to exit. If you want to adjust any other
function, repeat steps 2-3.
4) OSD Lock Function: To lock the OSD, press and hold the MENU button while the monitor is off and then press
power button to turn the monitor on. To un-lock the OSD - press and hold the MENU button while the monitor is
off and then press power button to turn the monitor on.
Notes:
1) If the product has only one signal input, the item of "Input Select" is disable to adjust.
2) If the product screen size is 4:3 or input signal resolution is wide format, the item of "Image Ratio" is disable to
adjust.
3) One of DCR, Color Boost, and Picture Boost functions is active, the other two function is turned off accordingly.

AOC E950SW Specifications

General

3D	No
Aspect ratio	16:10
Display diagonal	19 \
Display resolution	1366 x 768 pixels
Viewable size diagonal	470 mm
Viewable size, vertical	230.4 mm
Viewing angle, vertical	160 °
Contrast ratio (dynamic)	20000000:1
Display number of colors	16.78 million colors
Viewable size, horizontal	409.8 mm
Viewing angle, horizontal	170 °
Digital vertical frequency	50 - 75 Hz
Digital horizontal frequency	30 - 60 kHz
Display brightness (typical)	250 cd/m²
Supported graphics resolutions	1366 x 768
Power requirements	90-240VAC
Ethernet LAN (RJ-45) ports	0
Certification	CCC, CEPC, cCSAus, CE, FCC, EPA, TUV-S, ISO9241-307, TCO5.1, BSMI, China RoHs, Win7, TCO5.1
Product color	Black
Market positioning	-
Tilt angle range	-4 - 17 °
Number of OSD languages	16
On Screen Display (OSD)	Yes
Panel mounting interface	75 x 75 mm
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.5 W
Power consumption (typical)	15 W
Package depth	110 mm
Package width	496 mm
Package height	356 mm
Package weight	3550 g
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Depth (with stand)	175 mm
Width (with stand)	444.35 mm
Height (with stand)	342 mm
Width (without stand)	- mm
Weight (without stand)	2630 g
