AOC E950SW User Manual

39

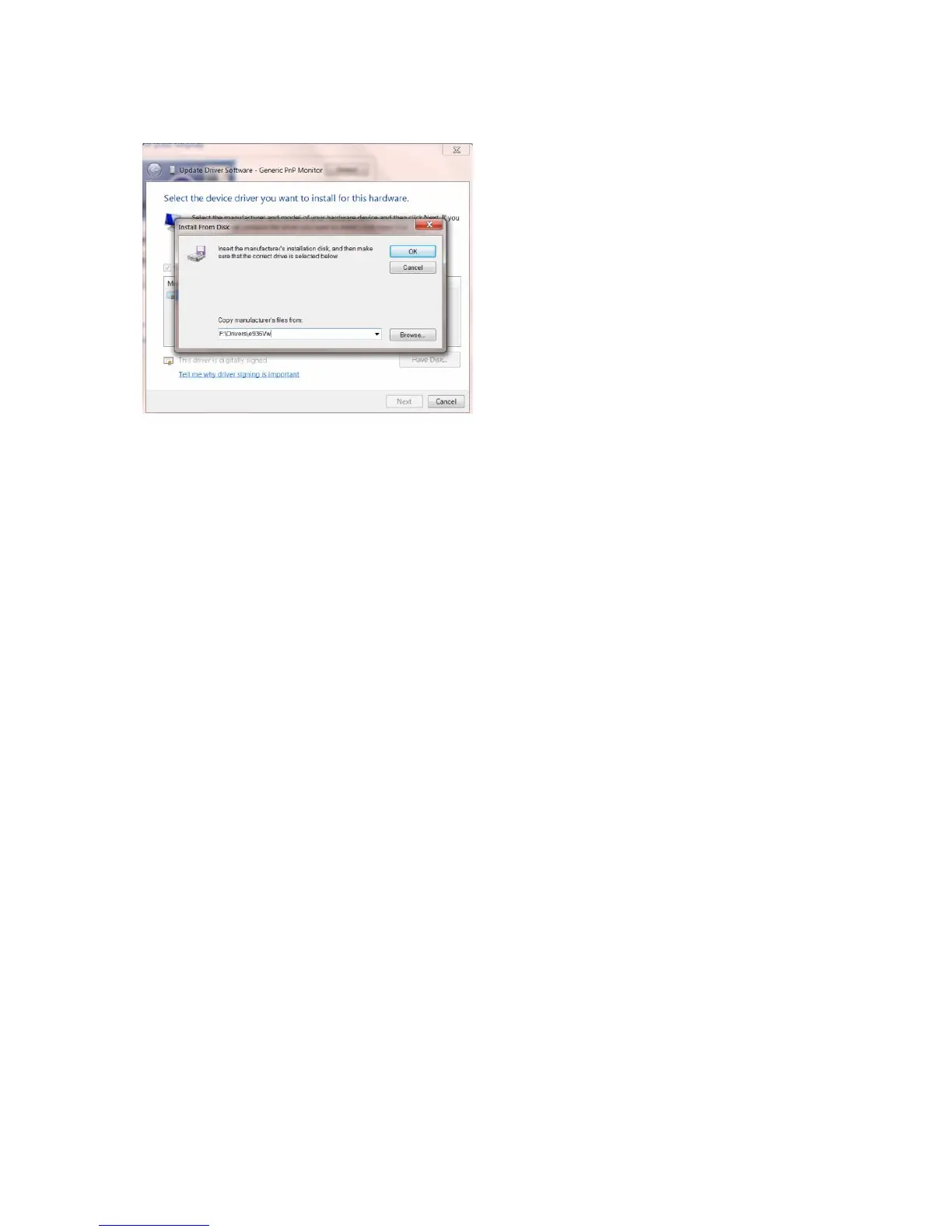

10. Click the “Have Disk” button. Click on the “Browse” button and navigate to the following directory:
X:\Driver\module name (where X is the drive letter designator for the CD-ROM drive).
11. Select the "xxx.inf" file and click the “Open” button. Click the “OK” button.
12. Select your monitor model and click the “Next” button. The files will be copied from the CD to your hard disk
drive.
13. Close all open windows and remove the CD.
14. Restart the system. The system will automatically select the maximum refresh rate and corresponding Color
Matching Profiles.

AOC E950SW Specifications

General

3D	No
Aspect ratio	16:10
Display diagonal	19 \
Display resolution	1366 x 768 pixels
Viewable size diagonal	470 mm
Viewable size, vertical	230.4 mm
Viewing angle, vertical	160 °
Contrast ratio (dynamic)	20000000:1
Display number of colors	16.78 million colors
Viewable size, horizontal	409.8 mm
Viewing angle, horizontal	170 °
Digital vertical frequency	50 - 75 Hz
Digital horizontal frequency	30 - 60 kHz
Display brightness (typical)	250 cd/m²
Supported graphics resolutions	1366 x 768
Power requirements	90-240VAC
Ethernet LAN (RJ-45) ports	0
Certification	CCC, CEPC, cCSAus, CE, FCC, EPA, TUV-S, ISO9241-307, TCO5.1, BSMI, China RoHs, Win7, TCO5.1
Product color	Black
Market positioning	-
Tilt angle range	-4 - 17 °
Number of OSD languages	16
On Screen Display (OSD)	Yes
Panel mounting interface	75 x 75 mm
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.5 W
Power consumption (typical)	15 W
Package depth	110 mm
Package width	496 mm
Package height	356 mm
Package weight	3550 g
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Depth (with stand)	175 mm
Width (with stand)	444.35 mm
Height (with stand)	342 mm
Width (without stand)	- mm
Weight (without stand)	2630 g
