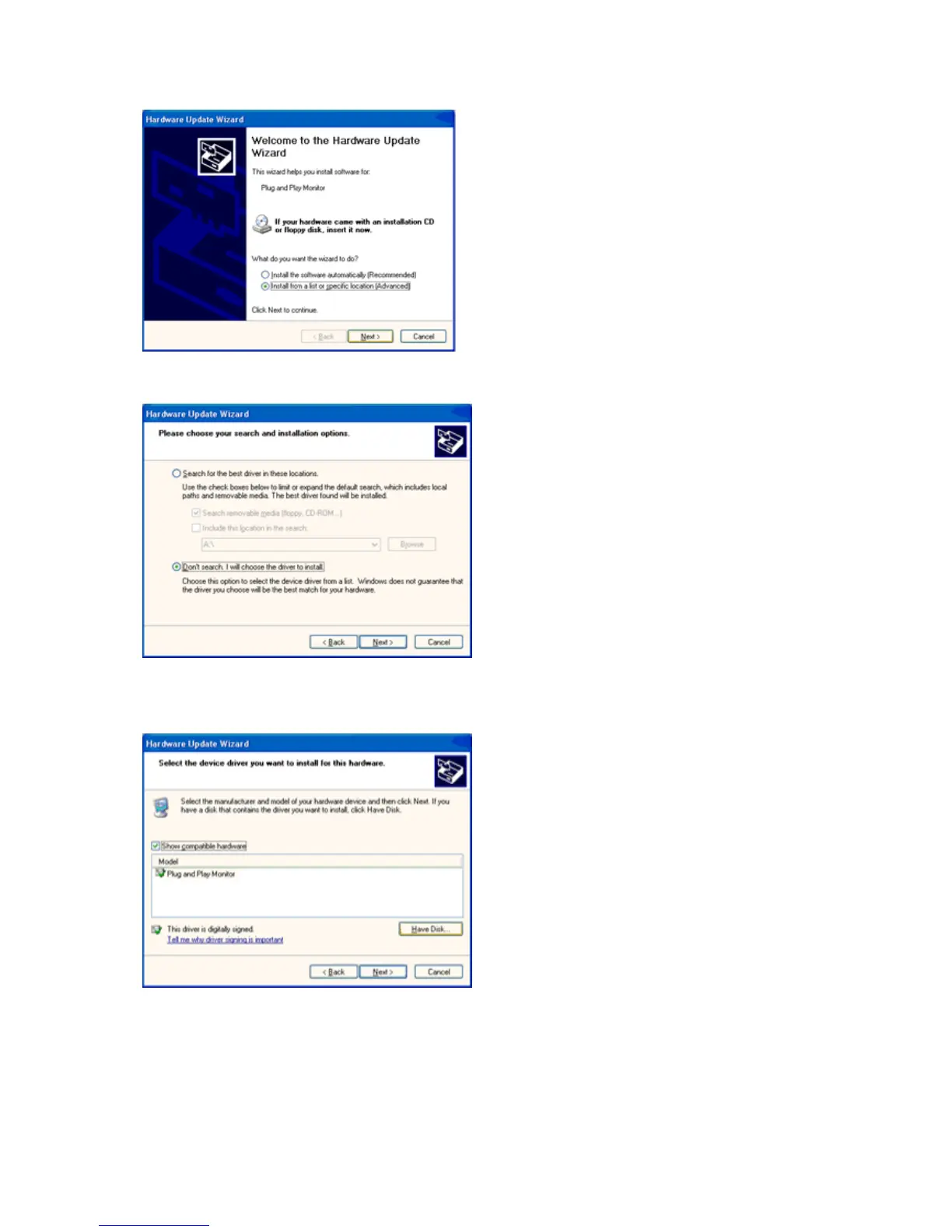

8. Select the 'Install from a list or specific location [advanced]' radio button and then click on the 'Next' button.

9. Select the 'Don't Search. I will choose the driver to install' radio button. Then click on the 'Next' button.

10. Click on the 'Have disk...' button, then click on the 'Browse...' button and then select the appropriate drive F:

(CD-ROM Drive).

11. Click on the 'Open' button, then click the 'OK' button.

12. Select your monitor model and click on the 'Next' button.

- If you can see the 'has not passed Windows® Logo testing to verify its compatibility with Windows® XP' message,

please click on the 'Continue Anyway' button.

13. Click on the 'Finish' button then the 'Close' button.

14. Click on the 'OK' button and then the 'OK' button again to close the Display Properties dialog box.

Other manuals for AOC E950SW

Questions and Answers:

Need help?

Do you have a question about the AOC E950SW and is the answer not in the manual?

General

3D	No
Aspect ratio	16:10
Display diagonal	19 \
Display resolution	1366 x 768 pixels
Viewable size diagonal	470 mm
Viewable size, vertical	230.4 mm
Viewing angle, vertical	160 °
Contrast ratio (dynamic)	20000000:1
Display number of colors	16.78 million colors
Viewable size, horizontal	409.8 mm
Viewing angle, horizontal	170 °
Digital vertical frequency	50 - 75 Hz
Digital horizontal frequency	30 - 60 kHz
Display brightness (typical)	250 cd/m²
Supported graphics resolutions	1366 x 768
Power requirements	90-240VAC
Ethernet LAN (RJ-45) ports	0
Certification	CCC, CEPC, cCSAus, CE, FCC, EPA, TUV-S, ISO9241-307, TCO5.1, BSMI, China RoHs, Win7, TCO5.1
Product color	Black
Market positioning	-
Tilt angle range	-4 - 17 °
Number of OSD languages	16
On Screen Display (OSD)	Yes
Panel mounting interface	75 x 75 mm
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.5 W
Power consumption (typical)	15 W
Package depth	110 mm
Package width	496 mm
Package height	356 mm
Package weight	3550 g
Sustainability certificates	ENERGY STAR
