AOC G2460PQU User Manual

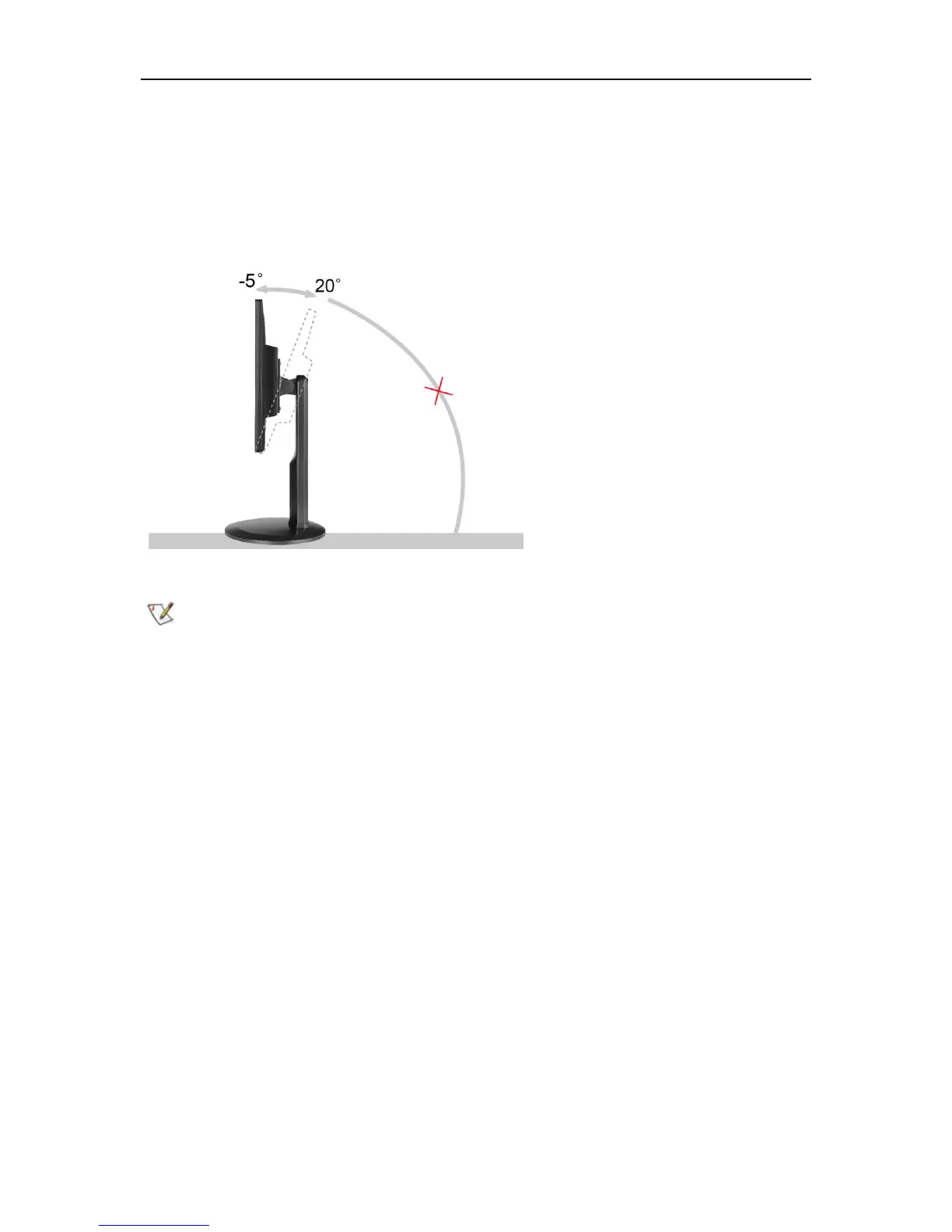

Adjusting Viewing Angle
For optimal viewing it is recommended to look at the full face of the monitor, then adjust the monitor's angle to your
own preference.
Hold the stand so you will not topple the monitor when you change the monitor's angle.
You are able to adjust the monitor's angle from -5° to 20 °.
NOTE:
Do not touch the LCD screen when you change the angle. It may cause damage or break the LCD screen.
10

AOC G2460PQU Specifications

General

3D	No
Panel type	TN
Color depth	6 bit
Pixel pitch	0.276 x 0.276 mm
Aspect ratio	16:9
Product type	PC monitor
Backlight type	W-LED
Pixel frequency	330 MHz
Display diagonal	23.6 \
Vertical scan range	50 - 76 Hz
Horizontal scan range	30 - 83 kHz
Viewable size, vertical	298.89 mm
Viewing angle, vertical	160 °
Contrast ratio (dynamic)	80000000:1
Contrast ratio (typical)	1000:1
Display number of colors	16.78 million colors
Viewable size, horizontal	531.36 mm
Viewing angle, horizontal	170 °
Display brightness (typical)	350 cd/m²
Supported graphics resolutions	1920 x 1080 (HD 1080)
AC adapter included	Yes
Mean time between failures (MTBF)	50000 h
HDMI version	1.4
USB hub version	2.0
DisplayPort version	1.1
Component video (YPbPr/YCbCr) in	0
USB Type-A downstream ports quantity	4
Tilt angle range	-5 - 22 °
Cable lock slot type	Kensington
Panel mounting interface	100 x 100 mm
Thin client installed	-
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (off)	0.22 W
Power consumption (standby)	0.31 W
Power consumption (typical)	22.7 W
Certification	ISO
Product color	Black
Market positioning	Gaming
Package weight	8550 g
Cables included	Audio (3.5mm), DVI, USB, VGA
Doesn't contain	BRF, PVC
Sustainability certificates	RoHS, EPEAT Gold, ENERGY STAR

Weight and Dimensions

Depth (without stand)	52.95 mm
Width (without stand)	565.4 mm
Height (without stand)	342.9 mm
Weight (without stand)	6540 g
