AOC G2460PQU User Manual

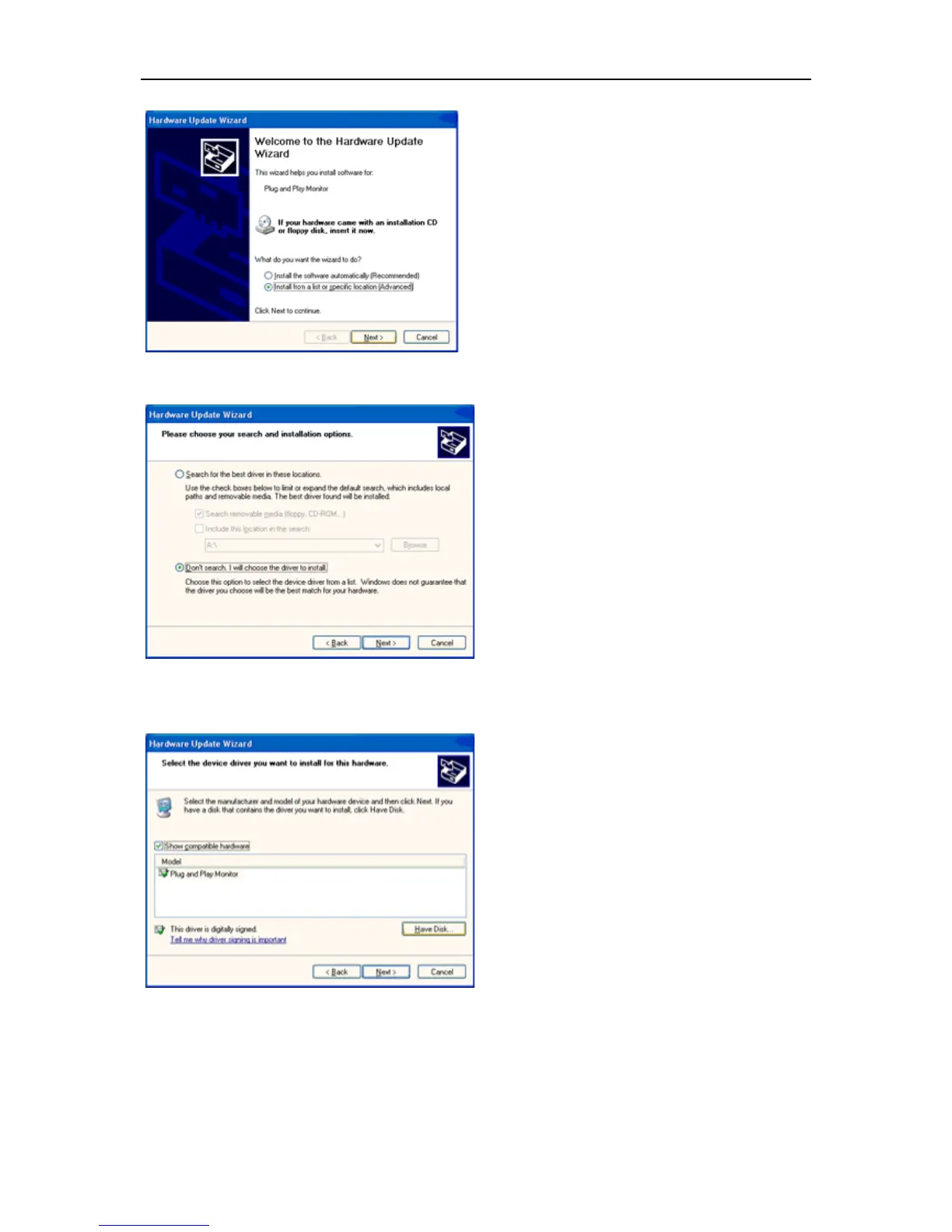

8. Select the 'Install from a list or specific location [advanced]' radio button and then click on the 'Next' button.
9. Select the 'Don't Search. I will choose the driver to install' radio button. Then click on the 'Next' button.
10. Click on the 'Have disk...' button, then click on the 'Browse...' button and then select the appropriate drive F:
(CD-ROM Drive).
11. Click on the 'Open' button, then click the 'OK' button.
12. Select your monitor model and click on the 'Next' button.
- If you can see the 'has not passed Windows® Logo testing to verify its compatibility with Windows® XP' message,
please click on the 'Continue Anyway' button.
13. Click on the 'Finish' button then the 'Close' button.
14. Click on the 'OK' button and then the 'OK' button again to close the Display Properties dialog box.
40

AOC G2460PQU Specifications

General

3D	No
Panel type	TN
Color depth	6 bit
Pixel pitch	0.276 x 0.276 mm
Aspect ratio	16:9
Product type	PC monitor
Backlight type	W-LED
Pixel frequency	330 MHz
Display diagonal	23.6 \
Vertical scan range	50 - 76 Hz
Horizontal scan range	30 - 83 kHz
Viewable size, vertical	298.89 mm
Viewing angle, vertical	160 °
Contrast ratio (dynamic)	80000000:1
Contrast ratio (typical)	1000:1
Display number of colors	16.78 million colors
Viewable size, horizontal	531.36 mm
Viewing angle, horizontal	170 °
Display brightness (typical)	350 cd/m²
Supported graphics resolutions	1920 x 1080 (HD 1080)
AC adapter included	Yes
Mean time between failures (MTBF)	50000 h
HDMI version	1.4
USB hub version	2.0
DisplayPort version	1.1
Component video (YPbPr/YCbCr) in	0
USB Type-A downstream ports quantity	4
Tilt angle range	-5 - 22 °
Cable lock slot type	Kensington
Panel mounting interface	100 x 100 mm
Thin client installed	-
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (off)	0.22 W
Power consumption (standby)	0.31 W
Power consumption (typical)	22.7 W
Certification	ISO
Product color	Black
Market positioning	Gaming
Package weight	8550 g
Cables included	Audio (3.5mm), DVI, USB, VGA
Doesn't contain	BRF, PVC
Sustainability certificates	RoHS, EPEAT Gold, ENERGY STAR

Weight and Dimensions

Depth (without stand)	52.95 mm
Width (without stand)	565.4 mm
Height (without stand)	342.9 mm
Weight (without stand)	6540 g
