AOC L22W898 User Manual

18

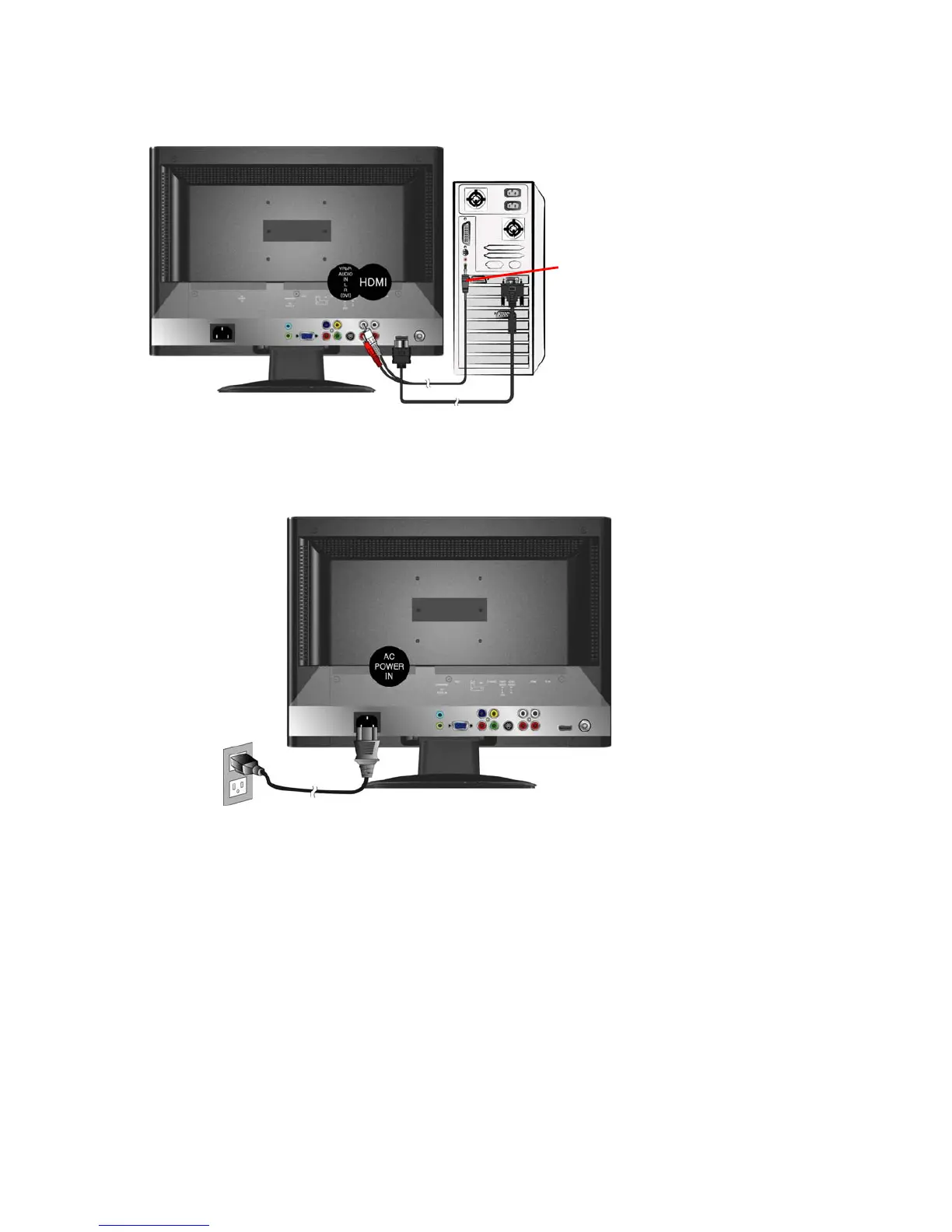

2) With HDMI-DVI Cable: Connect the HDMI-DVI cable from the DVI output of the computer to
the HDMI terminal input of the LCD TV. Also, connect the green end of the Audio In cable from
the audio output of your computer to the audio input terminal (red/white) of the LCD TV.
Connecting with the Power Cord
Connect the power cord to the AC inlet on the back of your LCD TV, after all connections have
been completed, and plug the other end of the power cord into a correctly grounded electrical
outlet.
AC power socket
Power Cord
HDMI-DVI Cable (not supplied)
PC
A
udio Cable (not supplied)

AOC L22W898 Specifications

General

HD type	WSXGA+
Display diagonal	22 \
Progressive scan	No
Display brightness	300 cd/m²
Display resolution	1680 x 1050 pixels
Display technology	LCD
Native aspect ratio	16:10
Contrast ratio (dynamic)	5000:1
Contrast ratio (typical)	1000:1
Viewing angle, horizontal	170 °
Supported graphics resolutions	1680 x 1050 (WSXGA+)
Package depth	523 mm
Package width	564 mm
Package height	150 mm
Package weight	8000 g
Plug and Play	Yes
Certification	FCC, cULus
Tuner type	Analog & digital
Analog signal format system	NTSC
Digital signal format system	ATSC
SCART ports quantity	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
S-Video inputs quantity	1
Product color	Black
LED indicators	Stand-by
Panel mounting interface	100 x 100 mm
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	55 W
RMS rated power	5 W

Weight and Dimensions

Depth (with stand)	216 mm
Width (with stand)	518 mm
Height (with stand)	427 mm
Weight (with stand)	6500 g
Depth (without stand)	79 mm
Height (without stand)	371 mm
