AOC L22W898 User Manual

22
ADVANCED OPERATION—OSD MENU

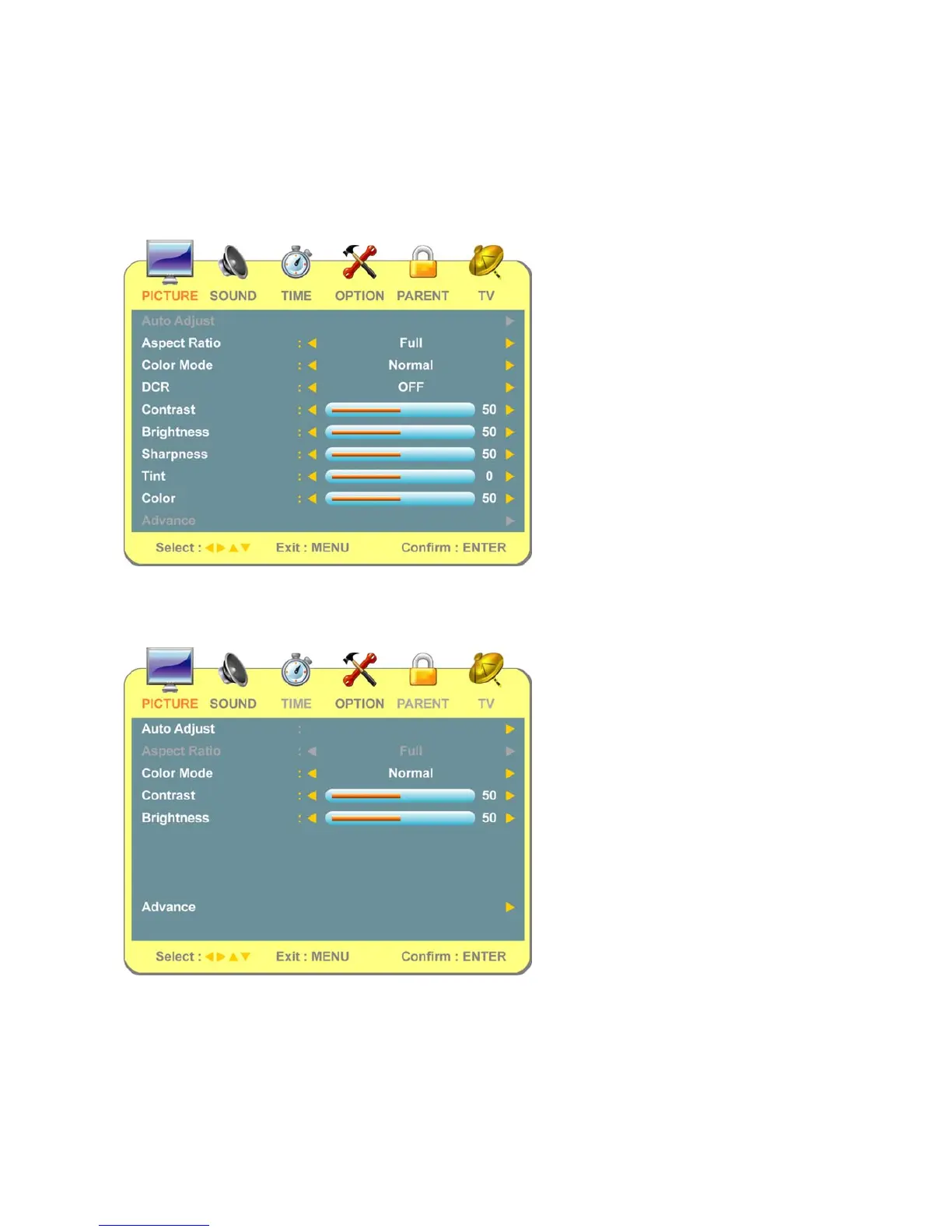

PICTURE Menu
—To adjust the picture quality
In TV, AV, S-Video, YPbPr, HDMI source:
Note: When in AV, S-Video, YPbPr or HDMI source, the TIME and TV Menu options are disabled.
In D-SUB source:
 Auto Adjust: To auto adjust picture’s horizontal position, vertical position, fine tune and H-Size.
(only enabled in D-SUB source)
 Aspect Ratio: To select image size from Full, 4:3, Movie Scale, or Zoom In.
 Color Mode: To select color mode from Normal, Warm, or Cold.
 DCR: To turn ON or OFF the DCR (Dynamic Contrast Ratio) function.
DCR Value is 5000:1.
 Contrast: To adjust contrast of video. (right: Max, left: Min.)

AOC L22W898 Specifications

General

HD type	WSXGA+
Display diagonal	22 \
Progressive scan	No
Display brightness	300 cd/m²
Display resolution	1680 x 1050 pixels
Display technology	LCD
Native aspect ratio	16:10
Contrast ratio (dynamic)	5000:1
Contrast ratio (typical)	1000:1
Viewing angle, horizontal	170 °
Supported graphics resolutions	1680 x 1050 (WSXGA+)
Package depth	523 mm
Package width	564 mm
Package height	150 mm
Package weight	8000 g
Plug and Play	Yes
Certification	FCC, cULus
Tuner type	Analog & digital
Analog signal format system	NTSC
Digital signal format system	ATSC
SCART ports quantity	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
S-Video inputs quantity	1
Product color	Black
LED indicators	Stand-by
Panel mounting interface	100 x 100 mm
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	55 W
RMS rated power	5 W

Weight and Dimensions

Depth (with stand)	216 mm
Width (with stand)	518 mm
Height (with stand)	427 mm
Weight (with stand)	6500 g
Depth (without stand)	79 mm
Height (without stand)	371 mm
