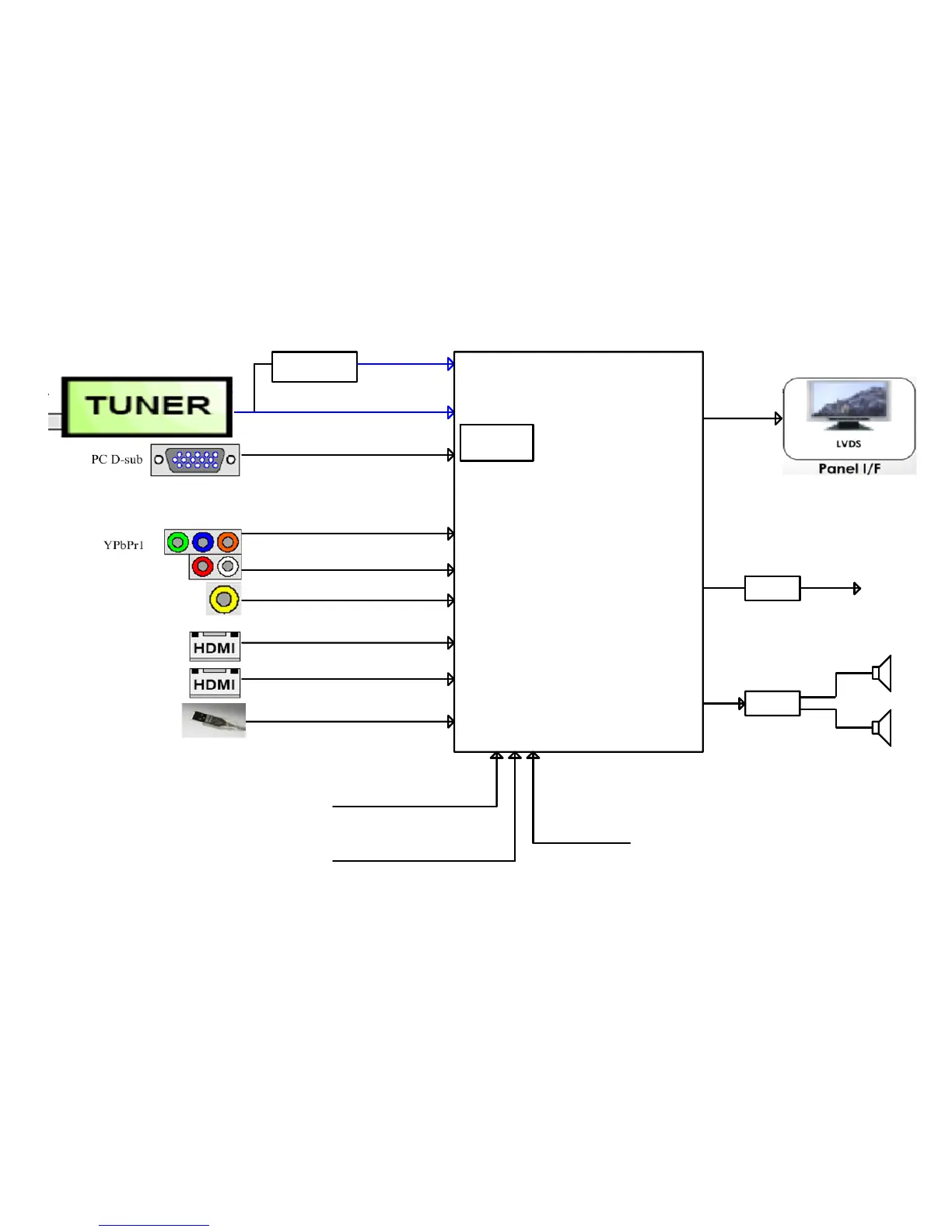

8. Block Diagram
With ARC
YPbPr
CVBS
DTV DEMOD
MSB1400
Single terminal silicon tuner
(LG TDST-H020F)
Series TS
Analog IF+/-
RGB
Headphone AMP
LVDS
AUDIO AMP
APA2176A
L/R
5W SPK
5W SPK
R
L
Remote Control
KeyPad
AV Audio
USB
L/R
ATV
DEMOD
UART
TI 31100
MST6931XP
Headphone
