17

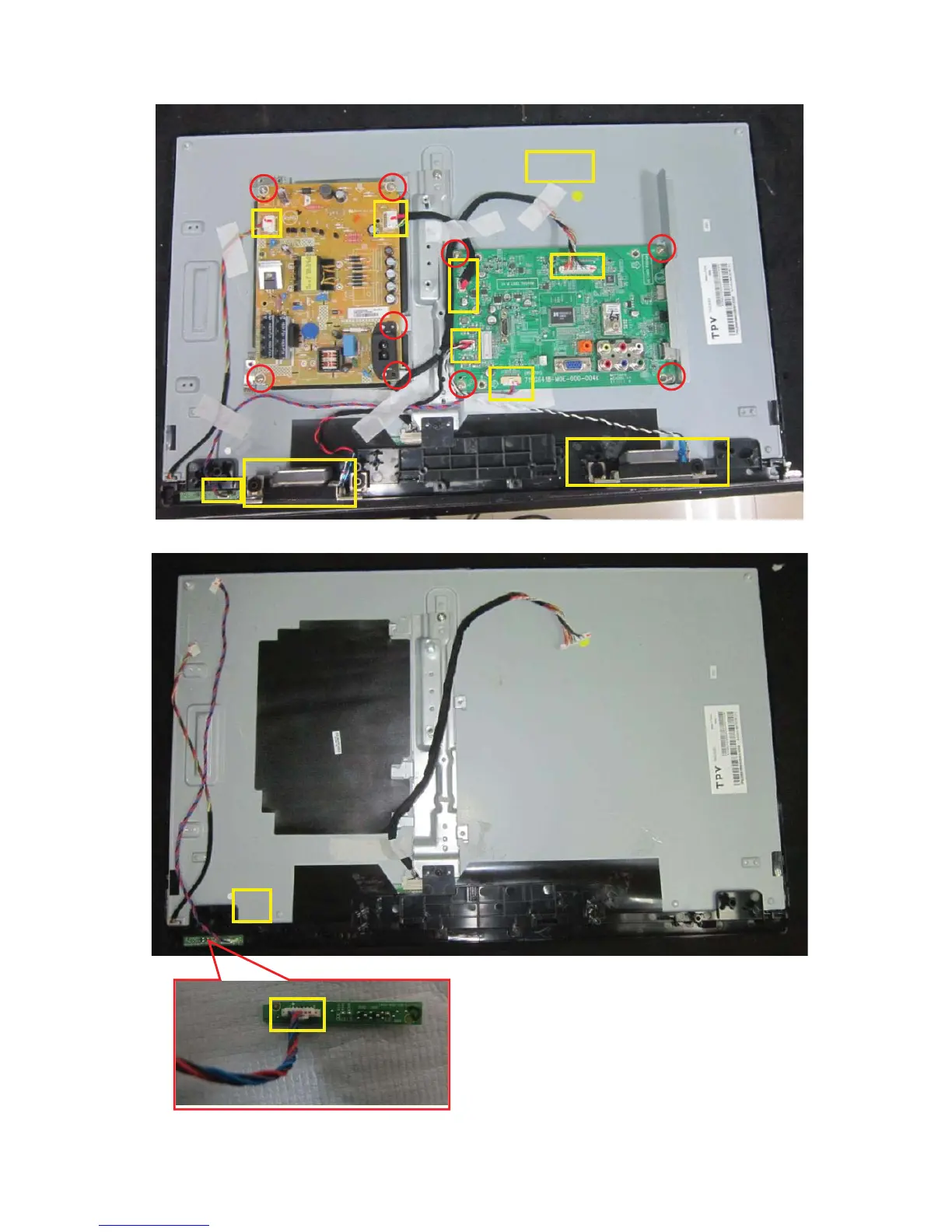

3. Disconnect the PINS marked in yellow .Remove the screws marked in red to remove MAIN BOARD, POWER
BOARD and SPEAKERS.
4. Remove the screws to remove DECO and disconnect the pin to remove the IR Board.
