AOC LE24D3140_30

47

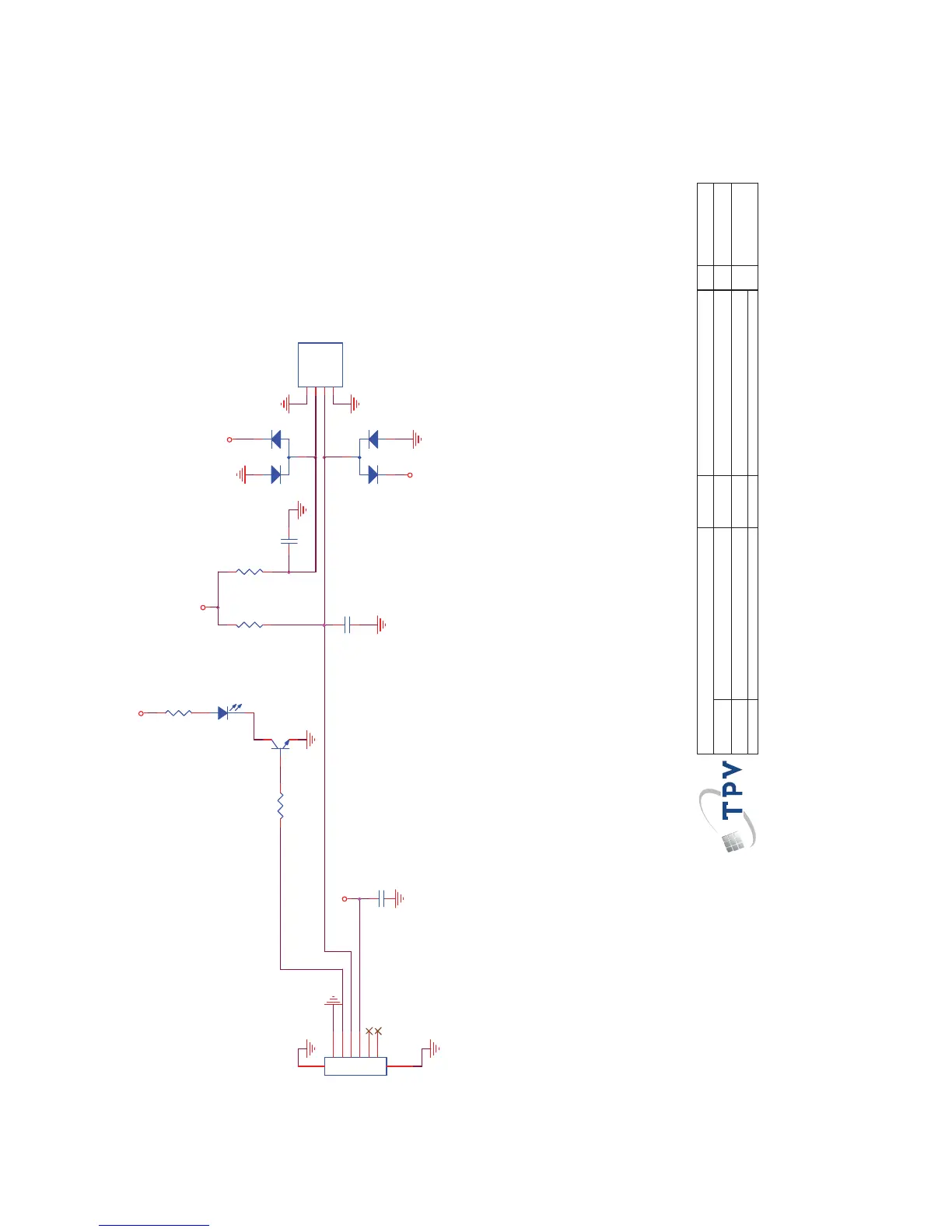

9.3 IR Board (715G5772R01000004K)
NC NC
Q301 BC847C
OEM MODEL
Size Rev
Date
Sheet
of
TPV MODEL
PCB NAME
〠⡩
T P V ( Top Victory Electronics Co . , Ltd. )
Key Component
㎜䳄⬌㎚㞩
0
Custom
22Thursday , September 20, 2012
715G5251-R0C-000-0040
〠⡩
<>
02. LED & IR
From M/B
R302
1K 1/10W 5%
R301
2K2 1/10W 5%
LED301
LED
12
Red
The item of LED function start from "301~315" The item of IR function start from "201~215" The item of key fumction start from "001~015"
CN201 CONN
1 2 3 4 5 6
78
LED_R
U201
TSOP75436WTT
GND
1
Vs
2
OUT
3
GND
4
C204
1UF16V
--------><----|
R202
100R 1/10W 5%
----><----|
C203
NC/1N 50V
R201
NC/2K7 1/16W 5%
3V3SB
3V3SB
D201 BAV99
3
1
2
D202 BAV99
3
1
2
3V3SB
3V3SB
RC6
C201
100N 16V
3V3SB
Close to U201 Close to U201
033G8032 6F S HR
