3. Panel Feature
This specification applies to the 19 inch-wide Color TFT-LCD Module M190PW01.
The display supports the WXGA+ (1440(H) x 900(V)) screen format and 16.7M colors(RGB
6-bits+HiFRC). All input signals are 2-Channel LVDS interface compatible. This module does
not contain an inverter board for backlight.

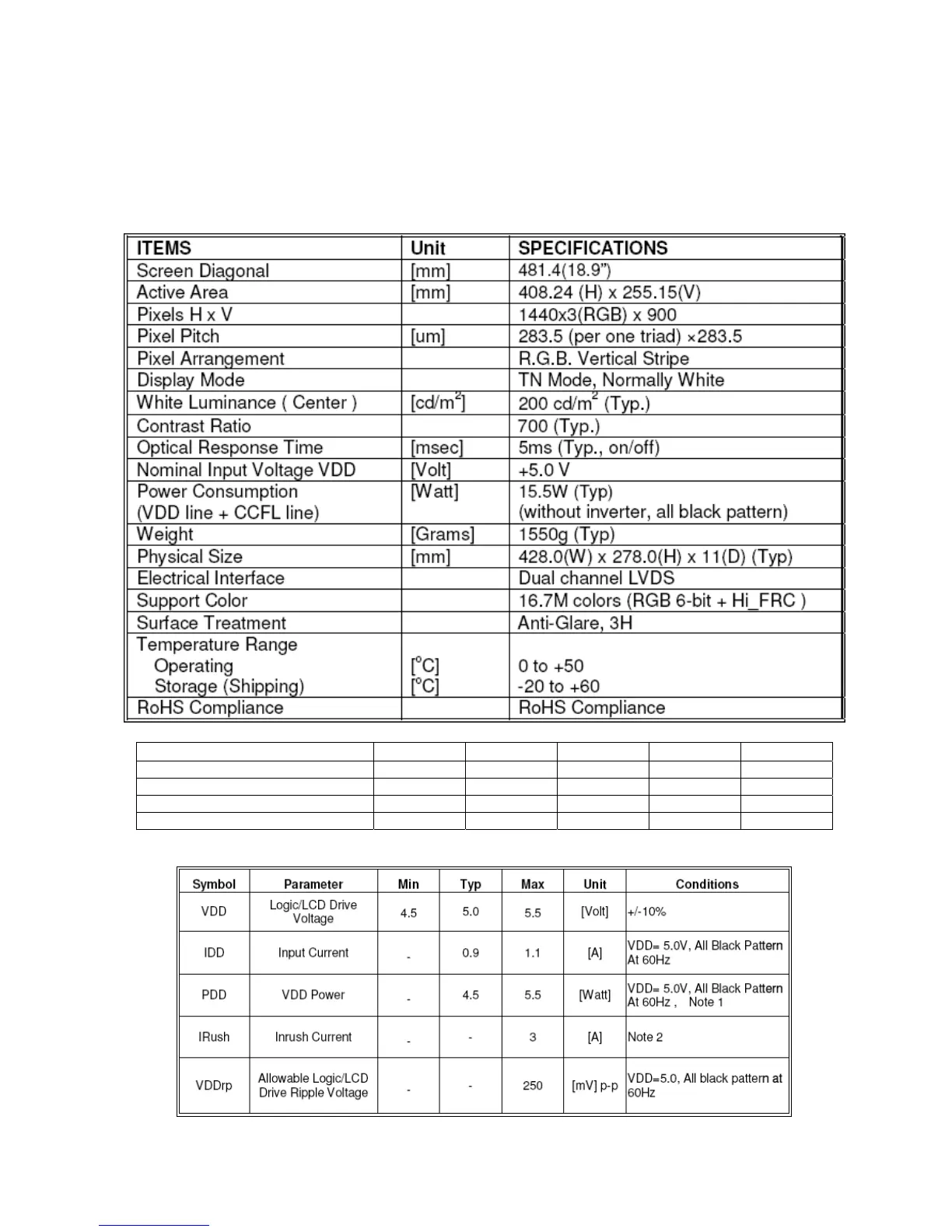

3.1 General Specifications
3.2 Electrical Absolute Ratings
Item Symbol Min Typ Max Unit
Power Supply Voltage Vcc -0.3 5 +6 V
Lamp voltage Vblh 666 700 814 Vrms
Lamp Current IL 3.0 6.5 8.0 mArms
Lamp Frequency FL 40 50 80 kHz
3.3 Electrical Characteristics
a) TFT LCD module
