Connecting the Monitor

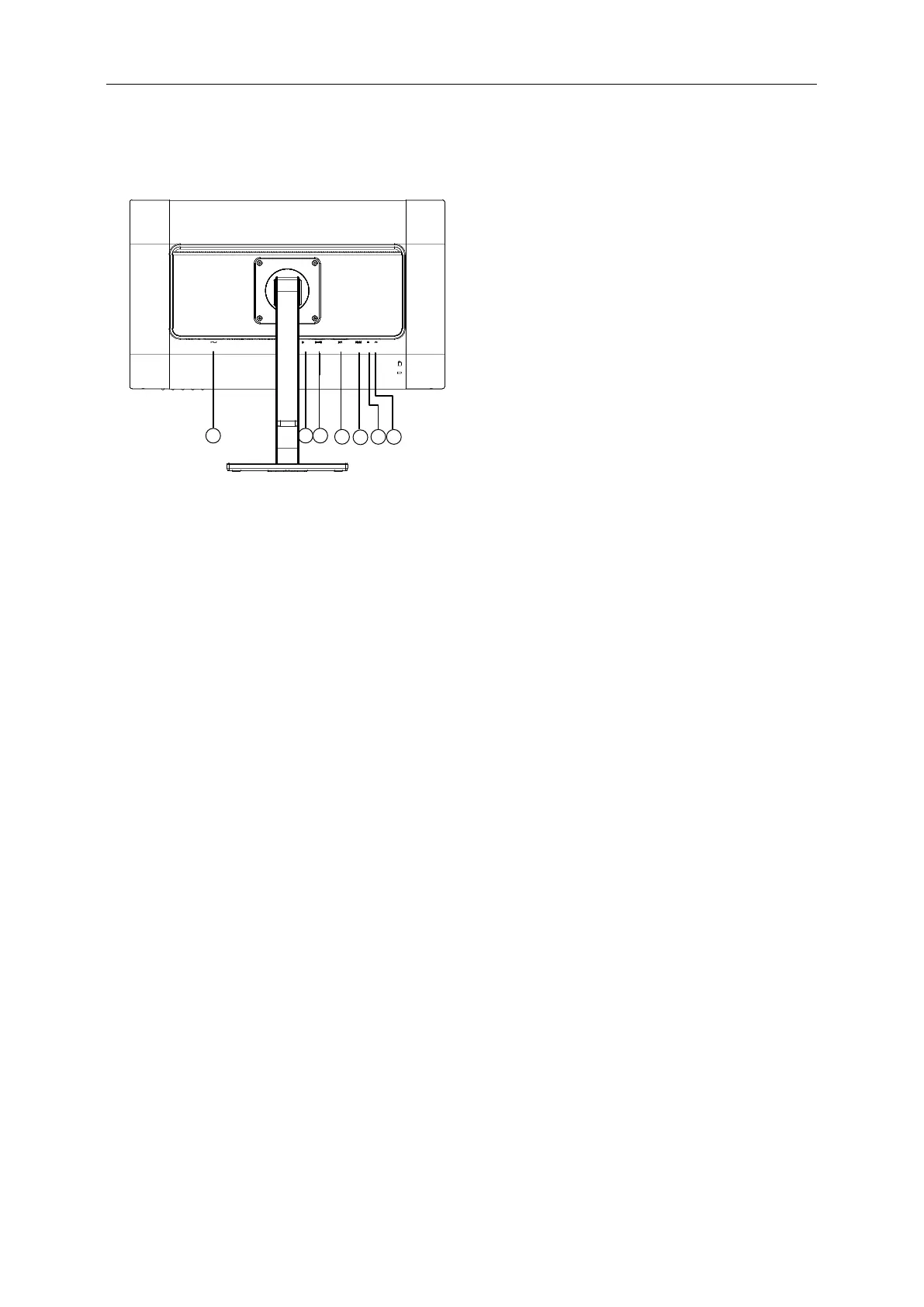

Cable Connections In Back of Monitor and Computer:

1 Power

2 Earphone out

3 AUDIO IN

4 HDMI

5 DVI

6 Analog (D-Sub 15-Pin VGA cable)

7 Display port

To protect equipment. always turn off the PC and LCD monitor before connecting.

1 Connect the power cable to the AC port on the back of the monitor.

2 Connect one end of the 15-pin D-Sub cable to the back of the monitor and connect the other end to the

computer's D-Sub port.

3 Optional – (Requires a video card with DVI port) – Connect one end of the DVI cable to the back of the monitor

and connect the other end to the computer’s DVI port.

4 Optional – (Requires a video card with HDMI port) – Connect one end of the HDMI cable to the back of the

monitor and connect the other end to the computer’s HDMI port.

5 Optional – (Requires a video card with DP port) – Connect one end of the DP cable to the back of the monitor

and connect the other end to the computer’s DP port.

6 Turn on your monitor and computer.

7 Video content supporting resolution:

(1) VGA: 1920 x 1080/60Hz (Maximum)

(2) DVI Dual-Link: 2560 x 1440/60Hz (Maximum)

(3) HDMI: 2560 x 1440/60Hz (Maximum)

(4) DP: 2560 x 1440/60Hz (Maximum)

If your monitor displays an image. installation is complete. If it does not display an image. please refer

Troubleshooting.
