AOC Q2577PWQ User Manual

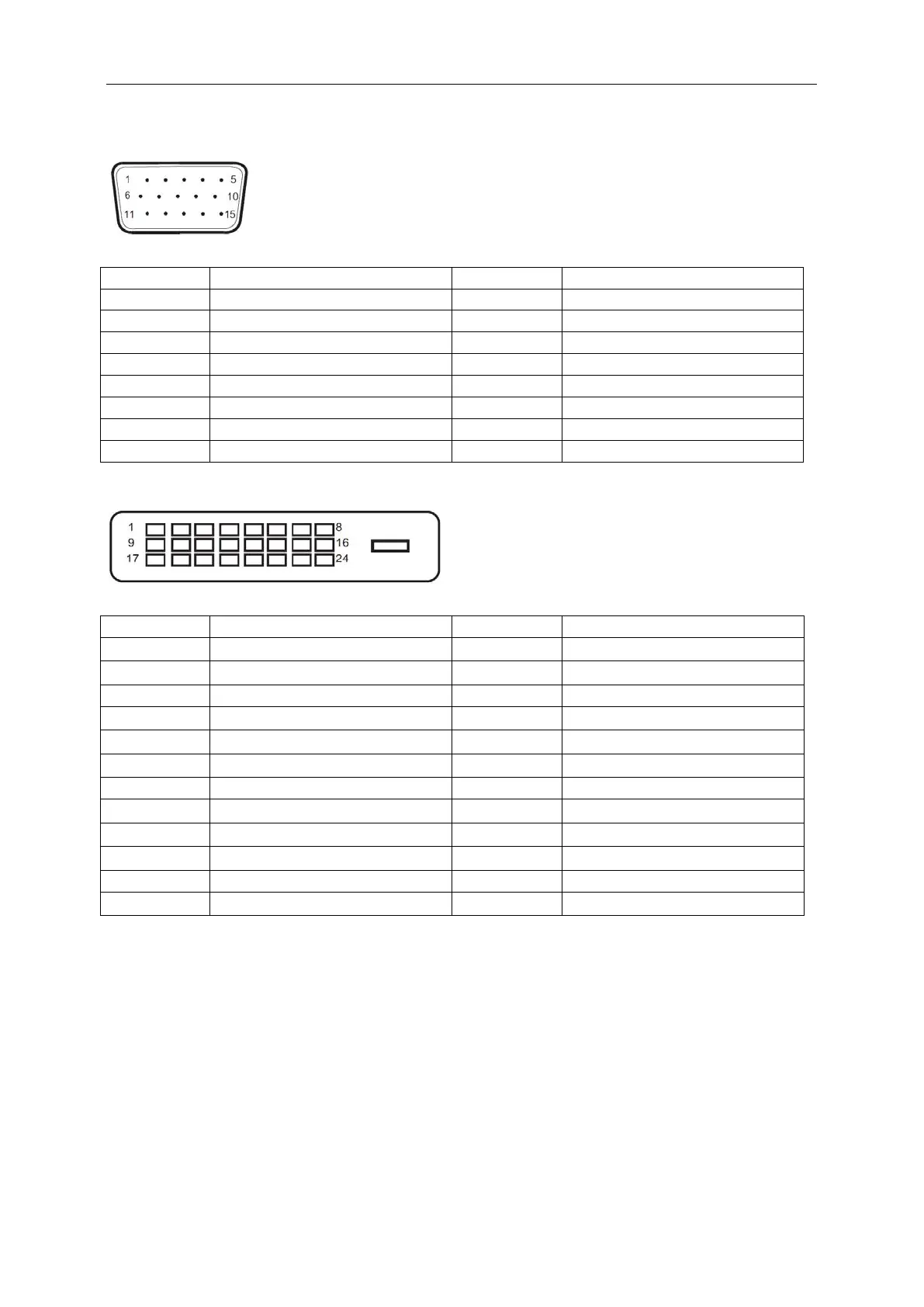

Pin Assignments
15-Pin Color Display Signal Cable
Pin No.
Signal Name
Pin No.
Signal Name
1
Video-Red
9
+5V
2
Video-Green
10
Ground
3
Video-Blue
11
N.C.
4
N.C.
12
DDC-Serial data
5
Detect Cable
13
H-sync
6
GND-R
14
V-sync
7
GND-G
15
DDC-Serial clock
8
GND-B
24-Pin Color Display Signal Cable
Pin No.
Signal Name
Pin No.
Signal Name
1
TMDS data 2－
13
TMDS data 3＋
2 TMDS data 2＋ 14 ＋5V Power
3
TMDS data 2/4 Shield
15
Ground (for+5V)
4
TMDS data 4－
16 Hot Plug Detect
5
TMDS data 4＋
17
TMDS data 0－
6 DDC Clock 18 TMDS data 0＋
7
DDC Data
19
TMDS data 0/5 Shield
8 N.C. 20
TMDS data 5－
9
TMDS data 1－
21
TMDS data 5＋
10 TMDS data 1＋ 22 TMDS Clock Shield
11 TMDS data 1/3 Shield 23 TMDS Clock +
12
TMDS data 3－
24
TMDS Clock －
54

AOC Q2577PWQ Specifications

General

Color	black/silver, multi
Tiltable	yes
Screen Size	25 inches
Aspect Ratio	16:9
Resolution	2560 x 1440
Native Resolution	2560 x 1440
Refresh Rate	60hz
Horizontal Viewing Angle	178 degrees
Vertical Viewing Angle	178 degrees
Response Time	5 milliseconds
Brightness	350 candela per square meter
Contrast Ratio	50, 000, 000:1
Horizontal Scan Rate	99 kilohertz
Built-In Speakers	yes
Power Consumption	55 watts
Width with Stand	22.5 inches
Net Weight without Stand	14.3 pounds
