AOC Q32E2N User Manual

10

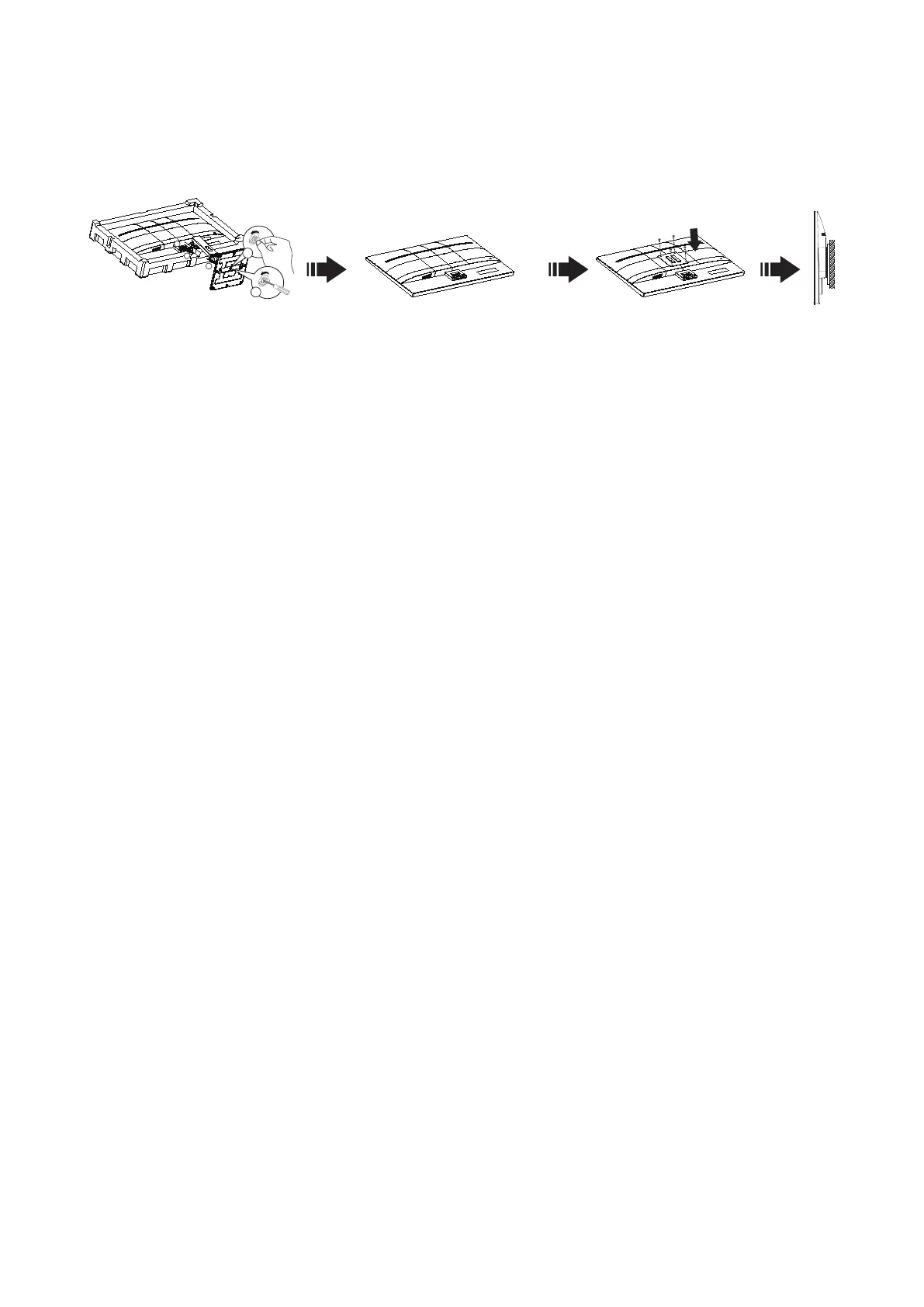

Wall Mounting
Preparing to Install An Optional Wall Mounting Arm.
1
2
5
4
3
This monitor can be attached to a wall mounting arm you purchase separately. Disconnect power before this procedure.
Follow these steps:
1. Remove the base.
2. Follow the manufacturer’s instructions to assemble the wall mounting arm.
3. Place the wall mounting arm onto the back of the monitor. Line up the holes of the arm with the holes in the back of the
monitor.
4. Insert the 4 screws into the holes and tighten.
5. Reconnect the cables. Refer to the user’s manual that came with the optional wall mounting arm for instructions on
attaching it to the wall.
Noted: VESA mounting screw holes are not available for all models, please check with the dealer or o󰀩cial department of
AOC.

AOC Q32E2N Specifications

General

Certification	True
Product color	Black
Detachable stand	Yes
Heavy metals free	Hg (mercury)
Market positioning	Business
HDMI version	1.4
Built-in USB hub	No
DisplayPort version	1.2
Headphone connectivity	3.5 mm
VGA (D-Sub) ports quantity	0
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Energy efficiency scale	A to G
Power consumption (standby)	0.3 W
Power consumption (typical)	42 W
Sustainability certificates	RoHS, ENERGY STAR
Color depth	10 bit
Aspect ratio	4:3, 16:9
Screen shape	Flat
Backlight type	W-LED
Display surface	Matt
Display diagonal	31.5 \
Surface hardness	3H
Anti-glare screen	Always gives an optimal view, even in direct sunlight.
Adobe RGB coverage	77 %
Display technology	LED
Native aspect ratio	16:9
Vertical scan range	48 - 75 Hz
Maximum refresh rate	75 Hz
Horizontal scan range	30 - 114 kHz
Supported video modes	1080p, 1440p
NTSC coverage (typical)	72 %
Viewable size, vertical	393.12 mm
sRGB coverage (typical)	104 %
Contrast ratio (dynamic)	20000000:1
Contrast ratio (typical)	3000:1
Display number of colors	16.7 million colors
Display diagonal (metric)	80.01 cm
Viewable size, horizontal	698.88 mm
Display brightness (typical)	250 cd/m²
Supported graphics resolutions	1920 x 1080 (HD 1080), 2560 x 1440
RMS rated power	3 W
Number of speakers	2
Tilt angle range	-6.5 - 23.5 °
Cable lock slot type	Kensington
Number of OSD languages	16
Panel mounting interface	100 x 100 mm
On Screen Display (OSD) languages	CHI (SIMPL), CHI (TR), CRO, CZE, DEU, DUT, ENG, ESP, FIN, FRE, ITA, JPN, KOR, POL, POR, RUS, SWE, TUR, UKR
HDMI cable length	1.8 m
Package type	Box
Package depth	187 mm
Package width	831 mm
Package height	553 mm
Package weight	10200 g
Recyclable packaging material	100 %
Harmonized System (HS) code	85285210

Weight and Dimensions

Depth (with stand)	248.77 mm
Height (with stand)	529.67 mm
Weight (with stand)	7420 g
Depth (without stand)	57.67 mm
Width (without stand)	730.19 mm
Height (without stand)	434.16 mm
Weight (without stand)	- g
