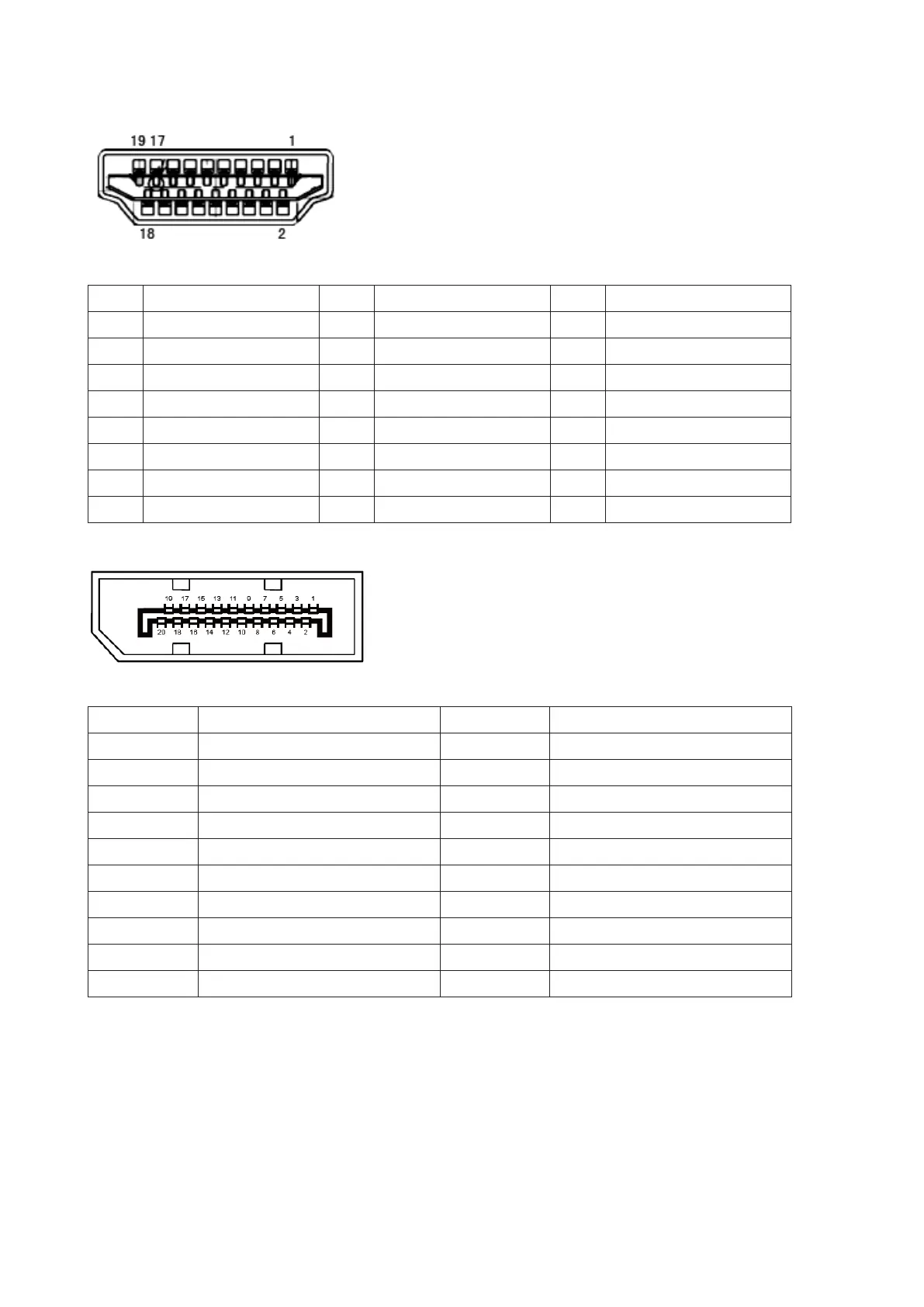

Pin Assignments

19-Pin Color Display Signal Cable

Pin No. Signal Name Pin No. Signal Name Pin No. Signal Name

1. TMDS Data 2+ 9. TMDS Data 0- 17. DDC/CEC Ground

2. TMDS Data 2 Shield 10. TMDS Clock + 18. +5V Power

3. TMDS Data 2- 11. TMDS Clock Shield 19. Hot Plug Detect

4. TMDS Data 1+ 12. TMDS Clock-

5. TMDS Data 1Shield 13. CEC

6. TMDS Data 1- 14. Reserved (N.C. on device)

7. TMDS Data 0+ 15. SCL

8. TMDS Data 0 Shield 16. SDA

20-Pin Color Display Signal Cable

Pin No. Signal Name Pin No. Signal Name

1 ML_Lane 3 (n) 11 GND

2 GND 12 ML_Lane 0 (p)

3 ML_Lane 3 (p) 13 CONFIG1

4 ML_Lane 2 (n) 14 CONFIG2

5 GND 15 AUX_CH(p)

6 ML_Lane 2 (p) 16 GND

7 ML_Lane 1 (n) 17 AUX_CH(n)

8 GND 18 Hot Plug Detect

9 ML_Lane 1 (p) 19 Return DP_PWR

10 ML_Lane 0 (n) 20 DP_PWR

Questions and Answers:

Need help?

Do you have a question about the AOC Q32P2 and is the answer not in the manual?

AOC Q32P2 Specifications

General

HD type	2K Ultra HD
Color depth	10 bit
Pixel pitch	0.2737 x 0.2737 mm
Aspect ratio	4:3, 16:9
Screen shape	Flat
Backlight type	W-LED
Display surface	Matt
Display diagonal	31.5 \
Surface hardness	3H
Anti-glare screen	Yes
Adobe RGB coverage	75 %
Display technology	LED
Native aspect ratio	16:9
Maximum refresh rate	75 Hz
Supported video modes	1080p, 1440p
NTSC coverage (typical)	72 %
Viewable size, vertical	392.688 mm
sRGB coverage (typical)	102 %
Contrast ratio (dynamic)	50000000:1
Contrast ratio (typical)	1000:1
Display number of colors	1.07 billion colors
Display diagonal (metric)	80.01 cm
Viewable size, horizontal	698.112 mm
Digital horizontal frequency	30 - 114 kHz
Display brightness (typical)	250 cd/m²
Supported graphics resolutions	1920 x 1080 (HD 1080), 2560 x 1440
Compatibility	VESA-P2
RMS rated power	3 W
Number of speakers	2
Certification	GOST
Product color	Black
Heavy metals free	Hg (mercury)
Market positioning	Business
HDMI version	1.4
USB hub version	3.2 Gen 1 (3.1 Gen 1)
DisplayPort version	1.2
Headphone connectivity	3.5 mm
VGA (D-Sub) ports quantity	0
USB Type-A downstream ports quantity	4
Pivot angle	0 - 180 °
Tilt angle range	-5 - 21 °
Cable lock slot type	Kensington
Number of OSD languages	16
Panel mounting interface	100 x 100 mm
On Screen Display (OSD) languages	CHI (SIMPL), CHI (TR), CRO, CZE, DEU, DUT, ENG, ESP, FIN, FRE, ITA, JPN, KOR, POL, POR, RUS, SWE, TUR, UKR
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Energy efficiency scale	A to G
Power consumption (off)	0.3 W
Power consumption (standby)	0.5 W
Power consumption (typical)	35 W
Storage temperature (T-T)	-20 - 55 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 93 %
Operating relative humidity (H-H)	10 - 85 %
Cables included	DisplayPort, HDMI
DisplayPort cable length	1.8 m
Package type	Box
Package depth	225 mm
Package width	835 mm
Package height	545 mm
Package weight	12300 g
Exterior finish type	Textured
Recyclable packaging material	100 %
Mean time between failures (MTBF)	50000 h
Harmonized System (HS) code	85285210
Sustainability certificates	WEEE

Weight and Dimensions

Depth (with stand)	275.1 mm
Width (with stand)	730.19 mm
Height (with stand)	650.65 mm
Weight (with stand)	9500 g
Depth (without stand)	57.67 mm
Height (without stand)	434.16 mm
