AOC Q32V4 User Manual

26

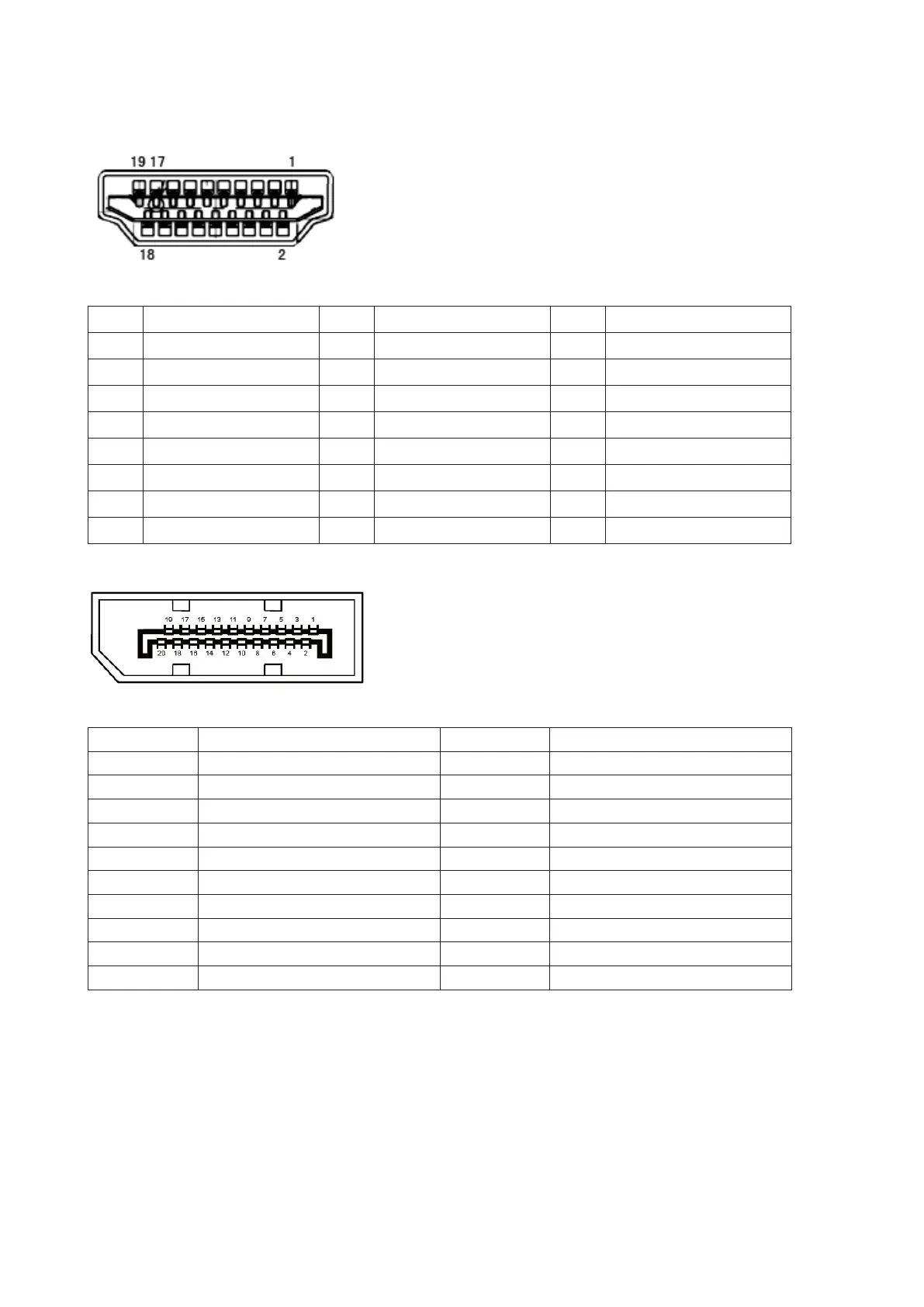

Pin Assignments
19-Pin Color Display Signal Cable
Pin No. Signal Name Pin No. Signal Name Pin No. Signal Name
1. TMDS Data 2+ 9. TMDS Data 0- 17. DDC/CEC Ground
2. TMDS Data 2 Shield 10. TMDS Clock + 18. +5V Power
3. TMDS Data 2- 11. TMDS Clock Shield 19. Hot Plug Detect
4. TMDS Data 1+ 12. TMDS Clock-
5. TMDS Data 1Shield 13. CEC
6. TMDS Data 1- 14. Reserved (N.C. on device)
7. TMDS Data 0+ 15. SCL
8. TMDS Data 0 Shield 16. SDA
20-Pin Color Display Signal Cable
Pin No. Signal Name Pin No. Signal Name
1 ML_Lane 3 (n) 11 GND
2 GND 12 ML_Lane 0 (p)
3 ML_Lane 3 (p) 13 CONFIG1
4 ML_Lane 2 (n) 14 CONFIG2
5 GND 15 AUX_CH(p)
6 ML_Lane 2 (p) 16 GND
7 ML_Lane 1 (n) 17 AUX_CH(n)
8 GND 18 Hot Plug Detect
9 ML_Lane 1 (p) 19 Return DP_PWR
10 ML_Lane 0 (n) 20 DP_PWR

AOC Q32V4 Specifications

General

HD type	2K Ultra HD
Color depth	8 bit
Aspect ratio	4:3, 16:9
Screen shape	Flat
Pixel density	93 ppi
Backlight type	W-LED
Display surface	Matt
Display diagonal	31.5 \
Surface hardness	3H
Anti-glare screen	Yes
Adobe RGB coverage	75 %
Display technology	LED
Native aspect ratio	16:9
Maximum refresh rate	75 Hz
Supported video modes	1080p, 1440p
sRGB coverage (typical)	102 %
Contrast ratio (dynamic)	20000000:1
Contrast ratio (typical)	1000:1
Display number of colors	16.7 million colors
Display diagonal (metric)	80.01 cm
Display brightness (typical)	250 cd/m²
Supported graphics resolutions	1920 x 1080 (HD 1080), 2560 x 1440
RMS rated power	2 W
Number of speakers	2
Certification	GOST
Product color	Black
Market positioning	Home
HDMI version	1.4
DisplayPort version	1.2
Headphone connectivity	3.5 mm
VGA (D-Sub) ports quantity	0
Tilt angle range	-5 - 23 °
Cable lock slot type	Kensington
Number of OSD languages	16
Panel mounting interface	100 x 100 mm
On Screen Display (OSD) languages	CHI (SIMPL), CHI (TR), CRO, CZE, DEU, DUT, ENG, ESP, FIN, FRE, ITA, JPN, KOR, POL, POR, RUS, SWE, TUR, UKR
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Energy efficiency scale	A to G
Power consumption (off)	0.3 W
Power consumption (standby)	0.5 W
Power consumption (typical)	47 W
Cables included	AC
HDMI cable length	1.5 m
Package type	Box
Package depth	187 mm
Package width	817 mm
Package height	552 mm
Package weight	8680 g
Exterior finish type	Textured
Harmonized System (HS) code	85285210
Sustainability certificates	WEEE

Weight and Dimensions

Depth (with stand)	209.9 mm
Width (with stand)	730.2 mm
Height (with stand)	531.1 mm
Weight (with stand)	6800 g
Depth (without stand)	47.5 mm
Height (without stand)	426.6 mm
