Connecting the Monitor

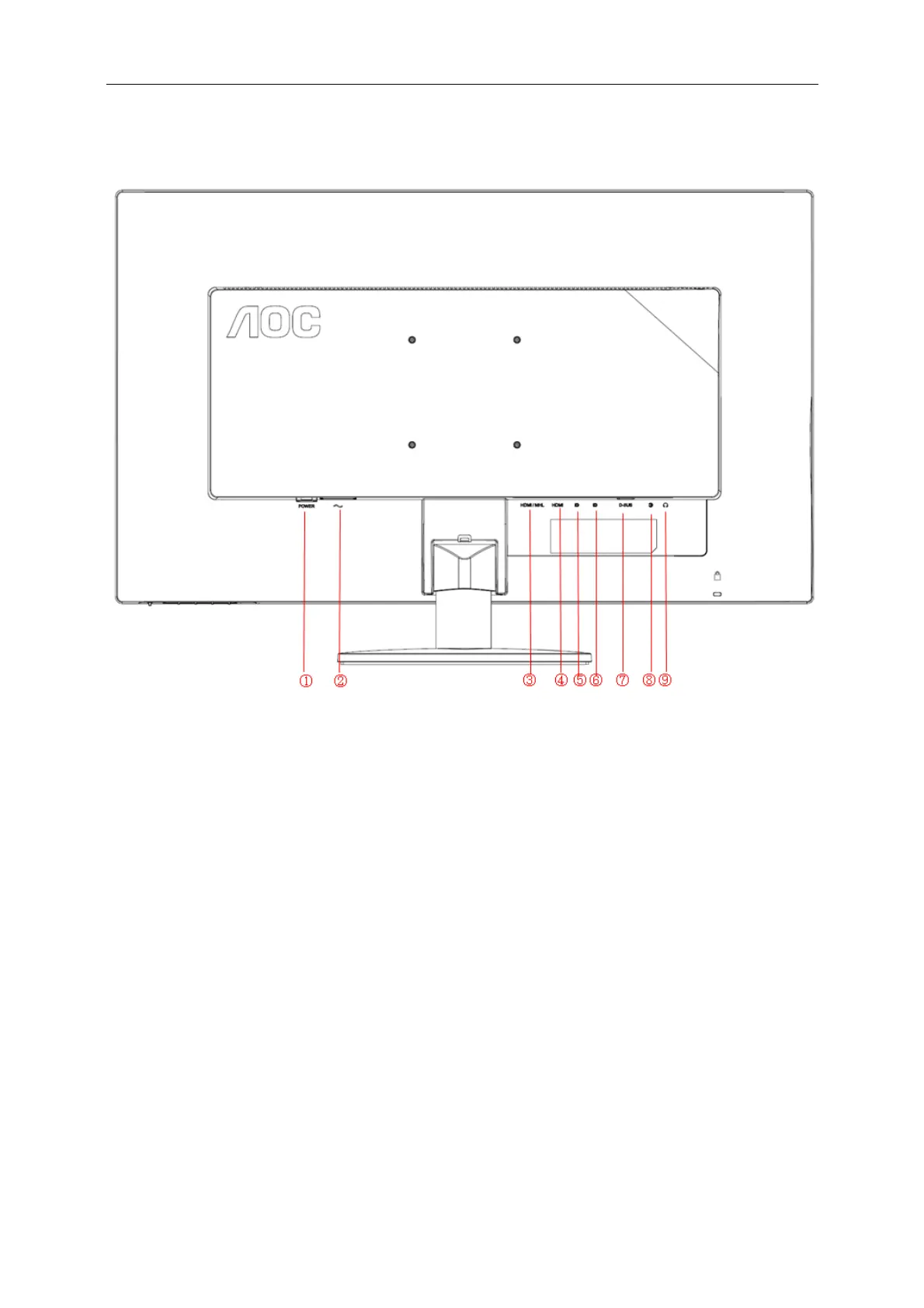

Cable Connections In Back of Monitor and Computer:
1 AC power switch
2 Power
3 HDMI2/MHL
4 HDMI
5 DP2(Mini-Display Port)
6 DP(Display port)
7 D-Sub
8 Line in
9 Earphone
To protect equipment, always turn off the PC and LCD monitor before connecting.
1 Connect the power cable to the AC port on the back of the monitor.
2 Connect one end of the 15-pin D-Sub cable to the back of the monitor and connect the other end to the
computer's D-Sub port.
3 Optional – (Requires a video card with HDMI port) – Connect one end of the HDMI cable to the back of the
monitor and connect the other end to the computer’s HDMI port.
4 Optional – (Requires a video card with DP port) – Connect one end of the DP cable to the back of the monitor
and connect the other end to the computer’s DP port.
5 Turn on your monitor and computer.
6 Video content supporting resolution:
