AOC U2870VQE

52

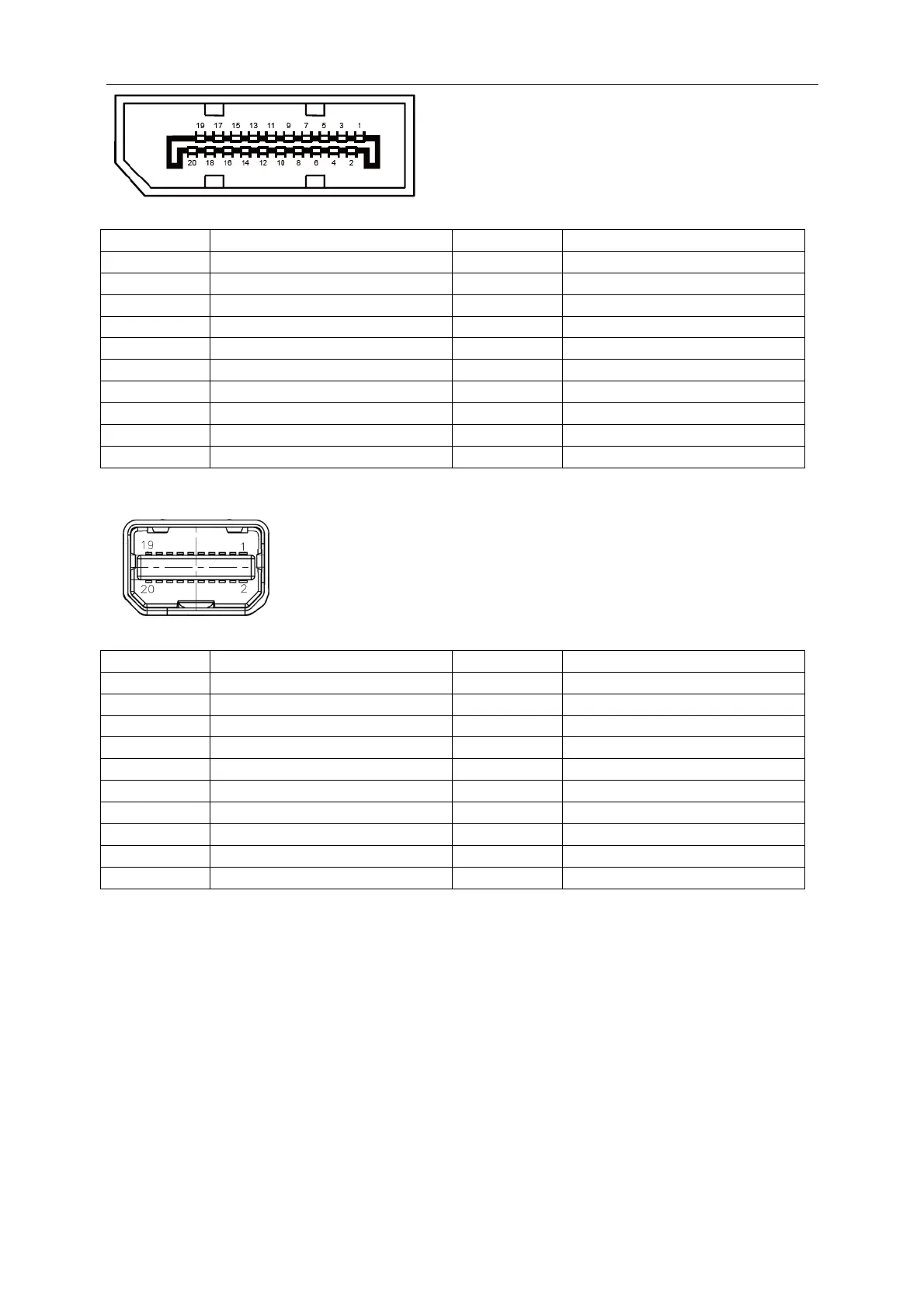

20-Pin Color Display Signal Cable
Pin No.
Signal Name
Pin No.
Signal Name
1
ML_Lane 3 (n)
11
GND
2
GND
12
ML_Lane 0 (p)
3
ML_Lane 3 (p)
13
CONFIG1
4
ML_Lane 2 (n)
14
CONFIG2
5
GND
15
AUX_CH(p)
6
ML_Lane 2 (p)
16
GND
7
ML_Lane 1 (n)
17
AUX_CH(n)
8
GND
18
Hot Plug Detect
9
ML_Lane 1 (p)
19
Return DP_PWR
10
ML_Lane 0 (n)
20
DP_PWR
20- Pin Color Display Signal Cable
Pin No.
Signal Name
Pin No.
Signal Name
1
GND
11
ML_Lane 2 (p)
2
Hot Plug Detect
12
ML_Lane 0 (p)
3
ML_Lane 3 (n)
13
GND
4
CONFIG1
14
GND
5
ML_Lane 3 (p)
15
ML_Lane 1 (n)
6
CONFIG2
16
AUX_CH(p)
7
GND
17
ML_Lane 1 (p)
8
GND
18
AUX_CH(n)
9
ML_Lane 2 (n)
19
GND
10
ML_Lane 0 (n)
20
DP_PWR
