AORUS AD27QD - Making Connections; Connecting Cables and Peripherals

- 18 -
LCD Monitor User’s Manual

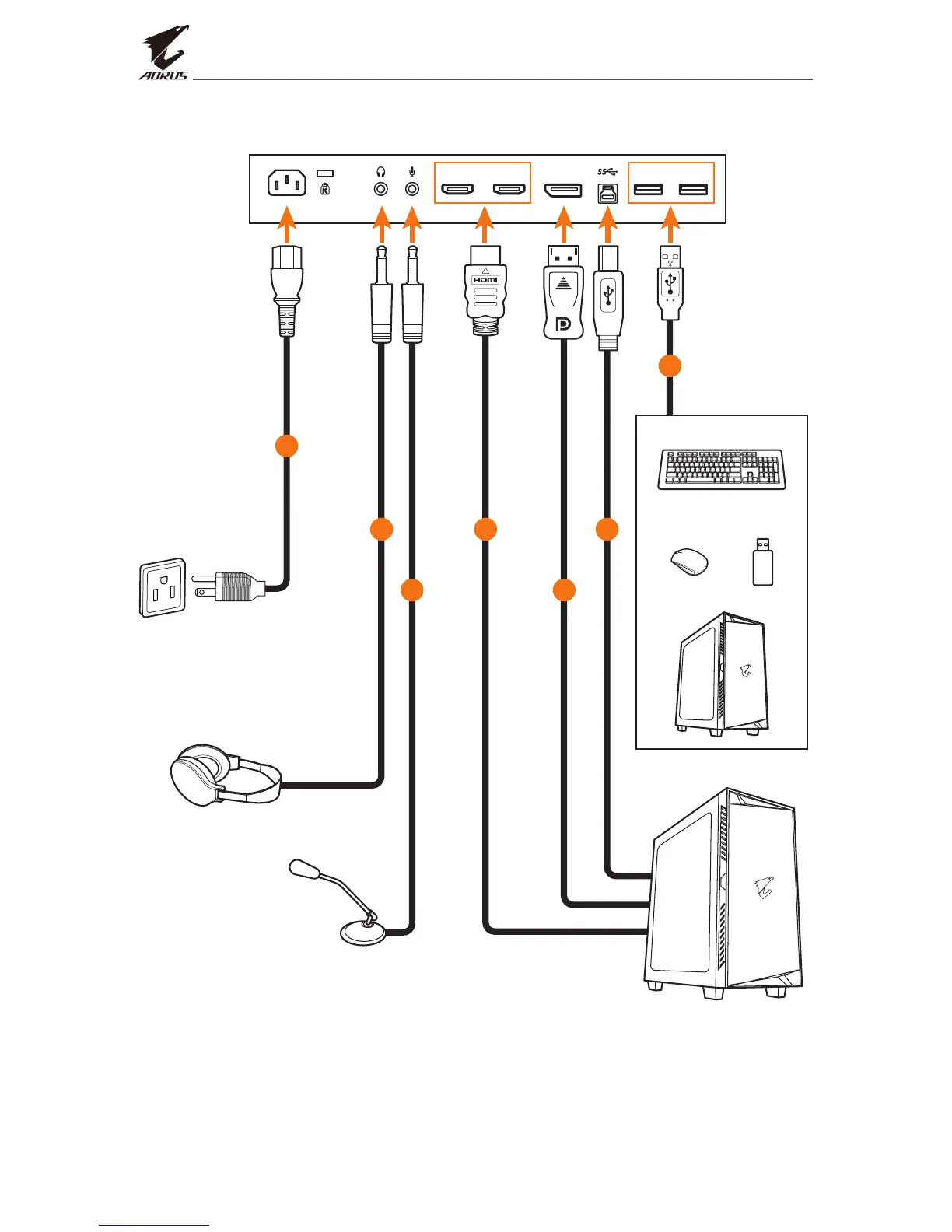

Making Connections
USB 3.0HDMI-2 DPHDMI-1
1
1
2
2 4 6
3 5
7
Keyboard
Mouse & USB disk
drive
Computer
Computer
Microphone
Headphone
Power outlet
1 Power cable
2 Headphone cable
3 Microphone cable
4 HDMI cable
5 DisplayPort cable
6 USB (A-Male to B-Male)
cable
7 USB cable
