14
5: rboF out of
band alarm ±
SEt2/ 3 around
setpoint 11:
SEt1
in band)

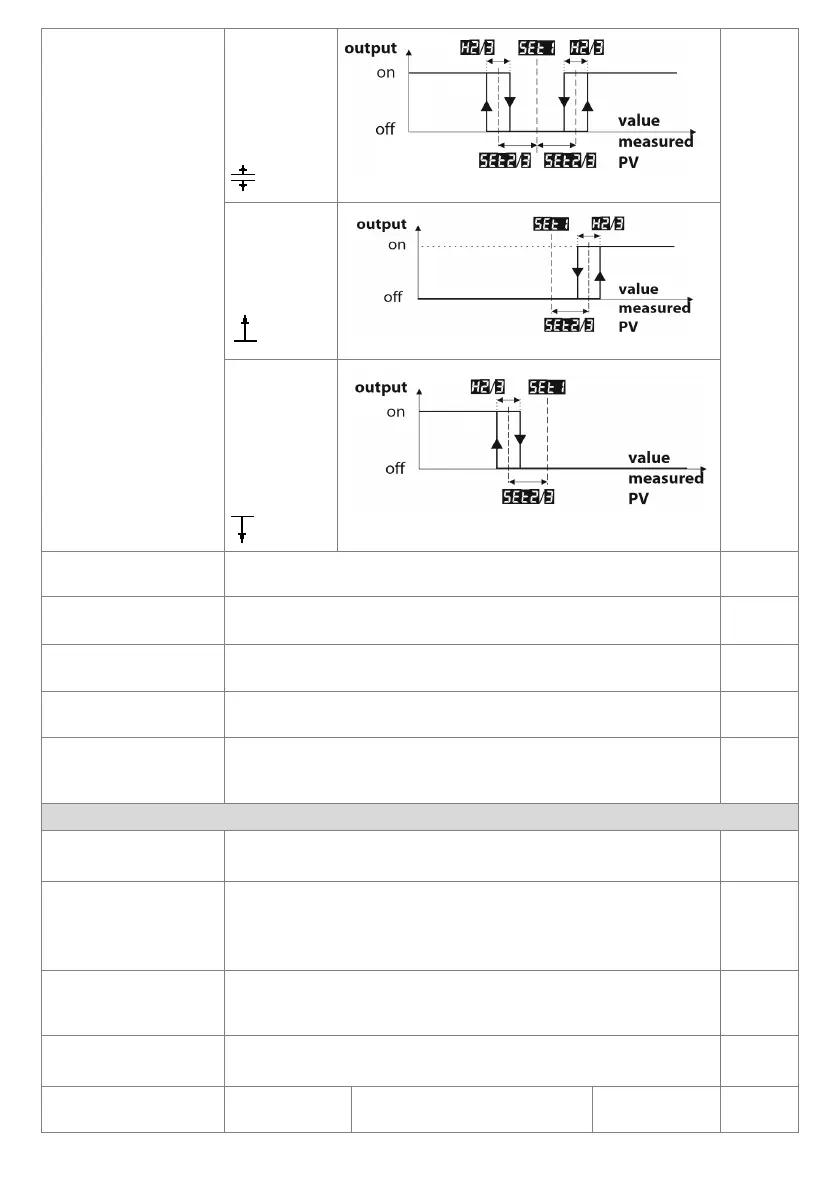

Fig.8.6. Characteristic out of band in relation to SEt1
6: dEoF
disabled below
SP= SEt1 +
SEt2/3
(activated
above SP)
(three-state
control on
outputs 1 and 2/3)
Fig.8.7. Deviation in relation to SEt1 (for SEt2/3 > 0)
7: dEon
activated below
SP = SEt1 +
SEt2/3
(activated
below SP)
(three-state
on outputs 1 and 2/3)
Fig.8.8. Deviation in relation to SEt1 (for SEt2/3 < 0)
11/18/25: SEt1/2/3 SP
setpoint for control/alarm
changes in the range set with parameters 4: irLo and 5: irHi
100.0 °C
12/19/26: H1/2/3 hysteresis
H or PID tuning zone
hysteresis or PID tuning deadband in mode Auto (smart logic, chapter 9.4), 0.0
÷ 999.9 °C or 0 ÷ 9999 units (2)
1.0 °C
13/20/27: oPF1/2/3 power
limitation (available power)
0 ÷ 100 %, maximum level of the control/power signal (also for the related
analogue output mA/V with parameter 31: FunA ), step by 1% (4)
100 %
14/21/28: PEr1/2/3 pulse
period of the Tc output
1÷360 s, applies to power limitation and manual mode , PID and servo
algorithm, for P/SSR outputs (pulsing with 0÷100% fill factor)
4 sec.
15/22/29: Fto1/2/3 output
emergency state
for missing/damaged sensor/signal/input or outside the measuring range:
0:
noCh = no change, 1: oFF = disabled, 2: on = enabled, 3: hAnd = manual mode
with a set output signal level (parameter 67: HSEt )
oFF
III. CONFIGURATION OF THE ANALOG OUTPUT mA/V, submenu outA , detailed description in chapter 9.2
30: AtYP analog output
type/standard
depending on the order code (hardware version): for current output 0: 0-20
or 1: 4-20 mA, for voltage output 0: 0-10 or 1: 2-10 V
0-20 mA
(0-10 V)
31: FunA analog output
function
0: oFF = permanently off (0mA or 0V), 1: rEtP = PV measurement
retransmission,
2/3/4: rSE1/ 2 / 3 = SP setpoint retransmission (i.e. 11/18/25: SEt1/2/3 ),
5/6/7: con1/2/3 = control output related to output parameters 1/2/3
oFF
32: ArLo lower indication
for retransmission
beginning of the output scale - for the value of the output signal 0/4mA or
0/2V (the parameter is active only for retransmission, when 31: FunA = rEtP
or rSE1/2/3 )
0.0 °C
33: ArHi upper indication
for retransmission
end of the output scale - for the output signal value of 20mA or 10V (this
parameter is active only for retransmission when 31: FunA=rEtP or rSE1/2/3 )
100.0 °C
34: cbot bottom
adjustment
0.00÷3.95 mA/V
calibration of the variability range of
the output signal, with a step of
for 0/4mA or 0/2V
0.00 mA/V
