APART PM1122 - Back Panel Connections

Instruction manualPM1122
13

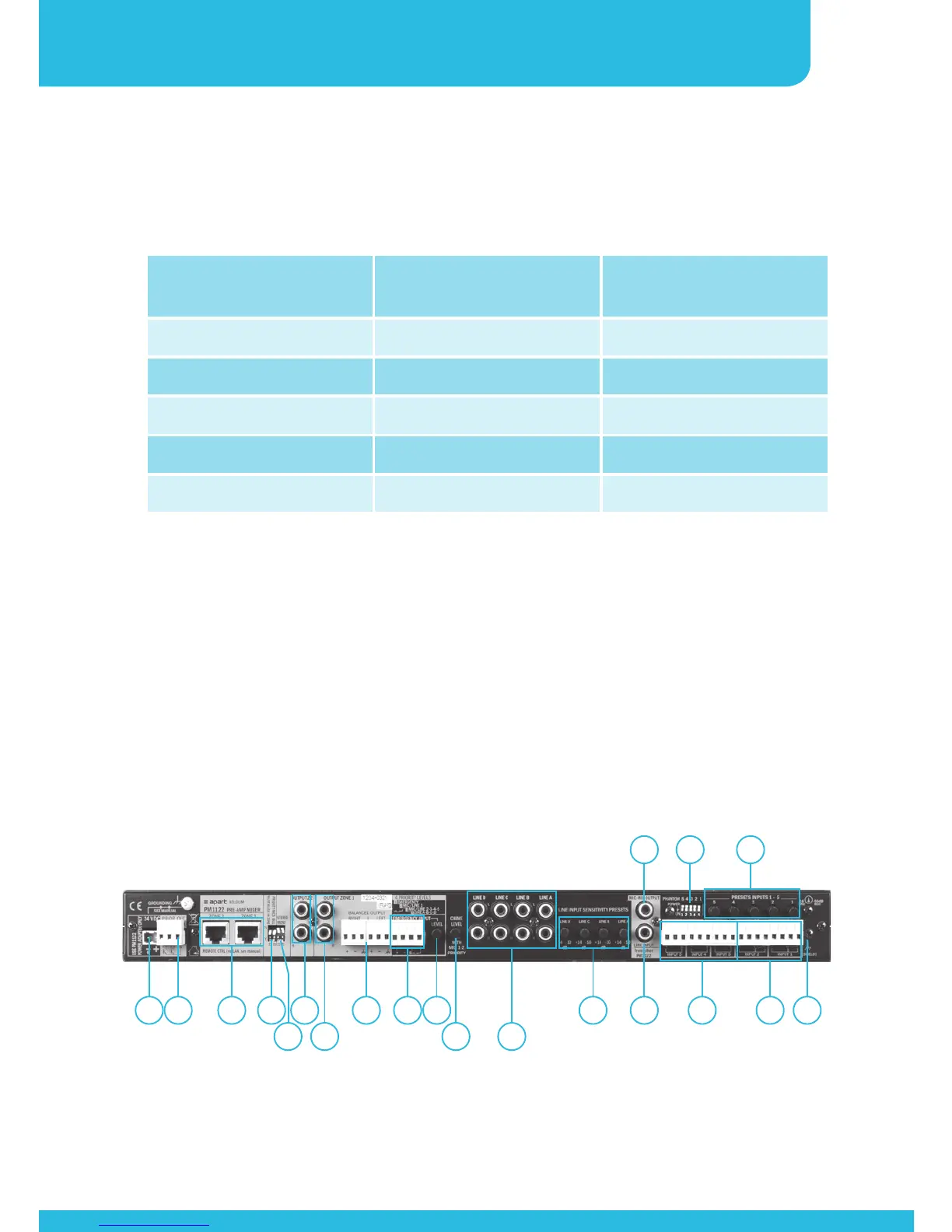

Back panel
MICROPHONE INPUT
NUMBER
PCB LOCATION CAPACITOR TO
REMOVE
MIC1 IT1 C13 & C14
MIC2 IT2 C213 & C215
MIC3 IT3 C44 & C45
MIC4 IT4 C57 & C58
MIC5 IT5 C85 & C86
The suggested transformer’s pin layout fits perfectly on the PCB
After soldering the transformer from the soldering side, please
remove the 2 capacitors as listed in the table to complete the modifi
cation.
1 2 3 4
5
6
7
8 9 10
11 12
13 15
14 16 17
18 19 20
