APART REVAMP1680 - Connections Overview; Input and Pass-Through Connectors

8
PROFESSIONAL DIGITAL AMPLIFIER
1. Bus 1 unbalanced stereo input on RCA connector: This input
can be selected in any zone by setting switch “10” to the BUS
1 position.
2. Bus 2 unbalanced stereo input on RCA connector: This input
can be selected in any zone by setting switch “10” to the BUS
2 position.
3. Bus 1 unbalanced stereo pass through on RCA connector: the
audio signal applied to the BUS 1 input can be tapped here.
4. Bus 2 unbalanced stereo pass through on RCA connector: the
audio signal applied to the BUS 2 input can be tapped here.

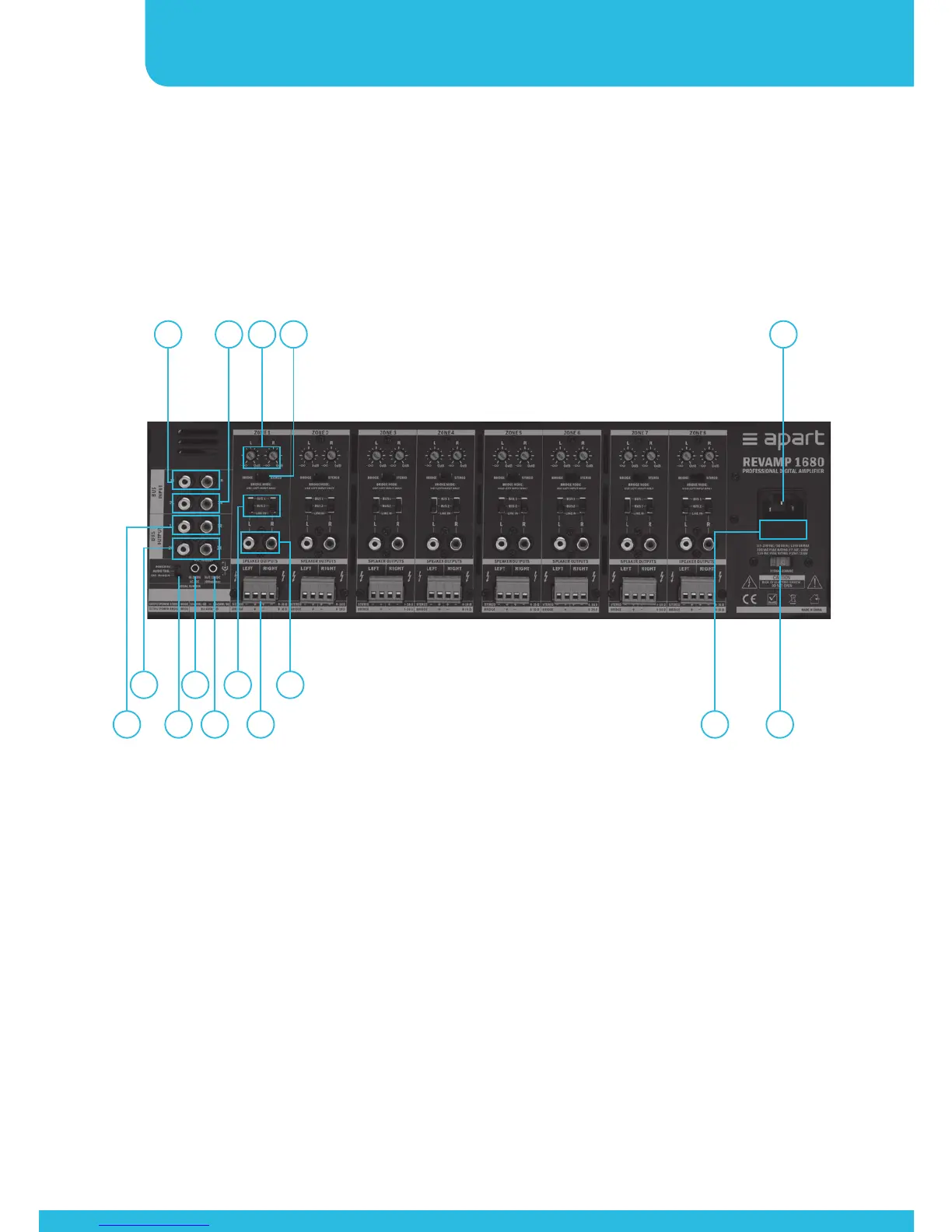

Connections (only output zone 1 is explained. Zone 2 –
8 are identical)
10
11
12
13
14 15
1 8
3 5 7
4 6
2 9
