1. Clean copper pipe and ends of ground wire with emery paper.
Bare wire is recommended. If insulated wire is used, it should be

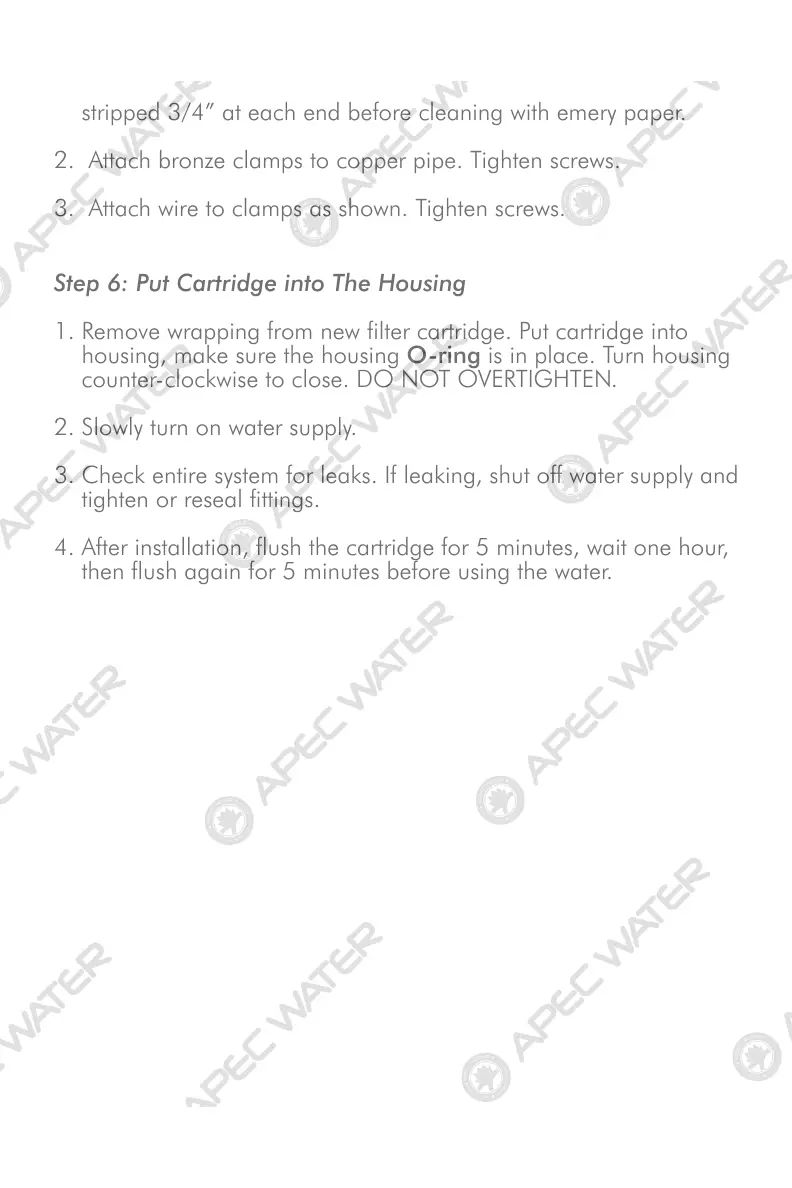

stripped 3/4” at each end before cleaning with emery paper.
2. Attach bronze clamps to copper pipe. Tighten screws.
3. Attach wire to clamps as shown. Tighten screws.
Step 6: Put Cartridge into The Housing
1. Remove wrapping from new filter cartridge. Put cartridge into
housing, make sure the housing O-ring is in place. Turn housing
counter-clockwise to close. DO NOT OVERTIGHTEN.
2. Slowly turn on water supply.
3. Check entire system for leaks. If leaking, shut off water supply and
tighten or reseal fittings.
4. After installation, flush the cartridge for 5 minutes, wait one hour,
then flush again for 5 minutes before using the water.
8
