INSTALLATION, OPERATION, & MAINTENANCE MANUAL
www.apollovalves.com Customer Service (704) 841-6000
4

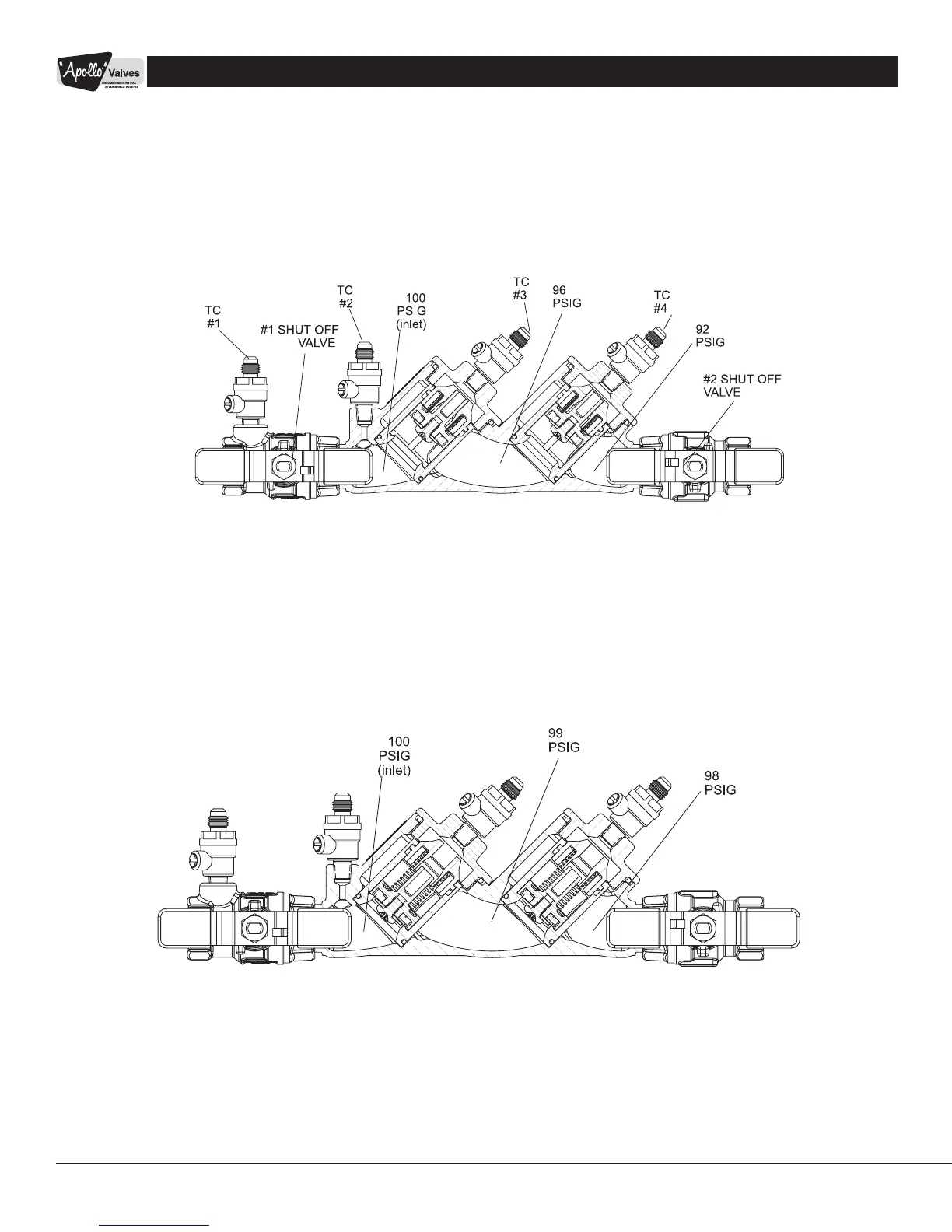

Figure 2
NO FLOW CONDITION
Figure 1
FLOWING CONDITION
NOTE: Pressures shown are for illustrative
purposes only and are not necessarily
indicative of any actual valve.
