Apollo 16 Hardware Manual DB25 Wiring 32

DB25 Wiring

Apollo 16’s analog I/O is accessed via 25-pin D-sub female connectors. Each DB25 jack carries eight balanced

line-level audio channels on the standardized Tascam pinouts also used with Digidesign and Avid products.

DB25 Connector Pin Numbers

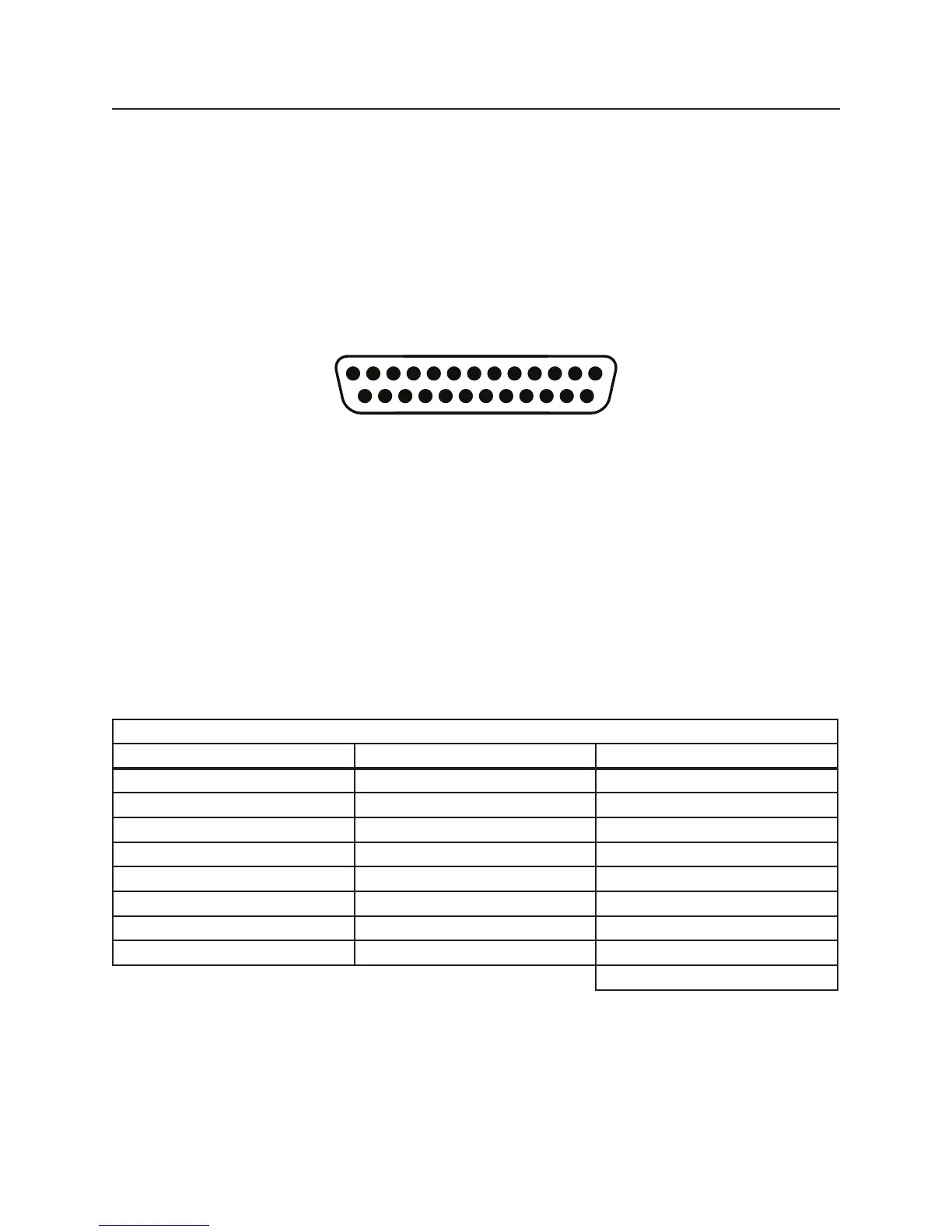

The pin numbers for female DB25 connectors are shown in the diagram below. When facing the Apollo 16 rear

panel, pin 1 is the upper rightmost pin.

13 1

1425

Apollo 16 female DB25 pin numbers

DB25 Connector Wiring

The signals carried on the female DB25 connector pins are listed in the table below. Two channels are listed for

each pin. The ﬁrst is for the connector carrying channels 1 – 8; the second is for the connector carrying chan-

nels 9 – 16 (pinouts are identical for inputs and outputs).

APOLLO 16 DB25 CONNECTOR PINOUTS

Pin Channels Signal Pin Channels Signal Pin Channels Signal

1 8, 16 Hot 9 3, 11 Cold 17 6, 14 Cold

2 8, 16 Ground 10 2, 10 Hot 18 5, 13 Hot

3 7, 15 Cold 11 2, 10 Ground 19 5, 13 Ground

4 6, 14 Hot 12 1, 9 Cold 20 4, 12 Cold

5 6, 14 Ground 13 – No Connect 21 3, 11 Hot

6 5, 13 Cold 14 8, 16 Cold 22 3, 11 Ground

7 4, 12 Hot 15 7, 15 Hot 23 2, 10 Cold

8 4, 12 Ground 16 7, 15 Ground 24 1, 9 Hot

25 1, 9 Ground
