Apollo 3500 User Manual

POST LOCATION GUIDE

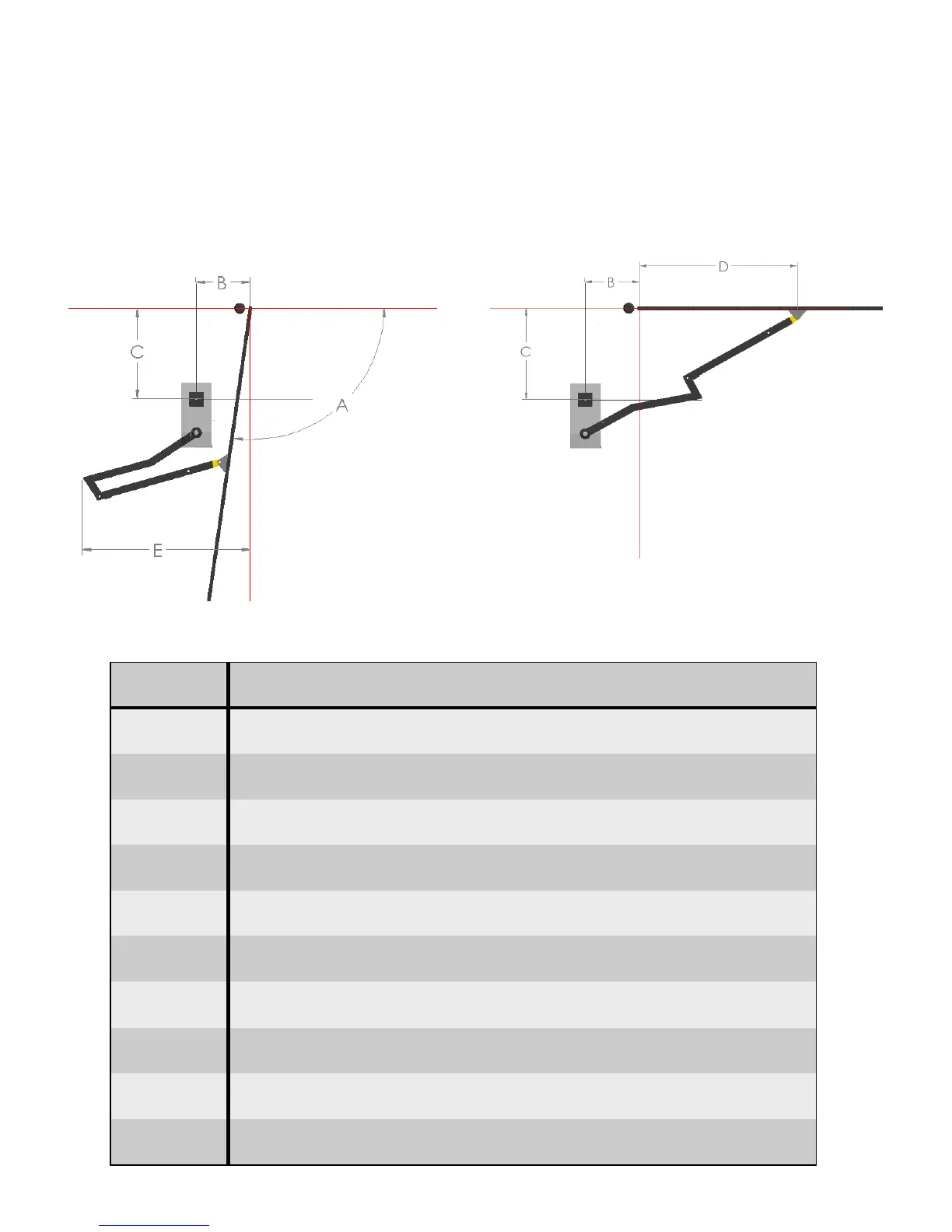

Determine the angle that the gate will open to (A). Select the post coordinates (B&C) as shown
on the chart below. Distances are from the hinge square to the center of the mounting post.
Longer gates should operate at the longer speeds.
A
Open degrees
B
inches
C
inches
D
inches
E
inches
Approximate
Seconds to open
90
0
10 31.2 46.7 35.3 15
90
0
10 30 47.5 38 16
92
0
15 30 42.7 26.2 12
97
0
13.5 25.5 44.3 46.1 17
97
0
15 25 45.6 45.6 16
100
0
20 25 40.9 37.1 13
107
0
20 20 43.2 52.1 17
110
0
25 20 35.9 43.8 13
116
0
25 15 37.6 56.3 16
117
0
20 15 43.3 52.9 20
