Page 11

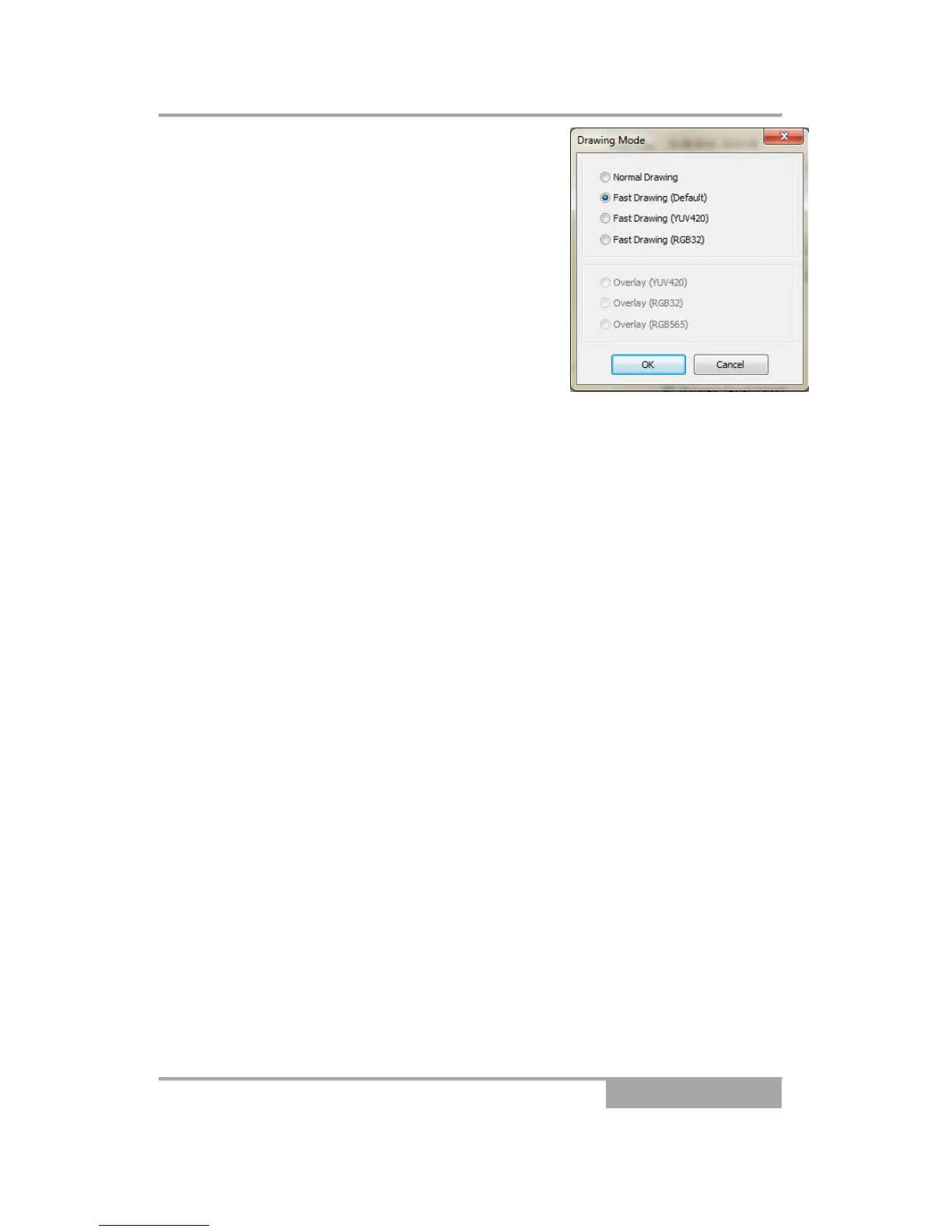

 Fast Drawing (Default):
Displays image in normal
speed (Direct Draw Mode).
 Fast Drawing
(YUV420/RGB32):
Depends on the PC’s video
card performance and
displays images in high
speed (Direct Draw Mode
(YUV420/RGB32)).
 Overlay
(YUV420/RGB32/RGB565)
: Displays image in high
speed (Direct Draw Overlay Mode
(YUV420/RGB32/RGB565)).
NOTE: If the image cannot be displayed properly (likely due to PC specifications),
lower the drawing mode level.
NOTE: While in the Fast Drawing mode, the drawing speed might decrease when
the HDP screen is not located on the primary monitor.
NOTE: Overlay Drawing mode may not be supported, depending on the type of
video card installed in the PC. Video cards with an ATI chipset are recommended.
NOTE: When using dual monitors, selecting Overlay Drawing will display the
image only on the primary monitor.
o OSD Setup…: Select options (Title, Time Info, Date Info and
Text-In) to display on the screen and select the first day of week
in the calendar.
 Audio Option: Enable or disable audio playback.
 Startup Option:
 Automatic Text-In Export: Select whether or
not the text-in data is automatically saved
when start the HDP program start if
connected hard disk drive has recorded text-
in data. The saved text-in data in .txt file
format can be found in the folder where the
HDP program has been installed.
View Menu: Displays or closes the toolbar and panels.
Image Menu:
 Save: Saves the current image as a bitmap file.
 Print: Prints the current image.
