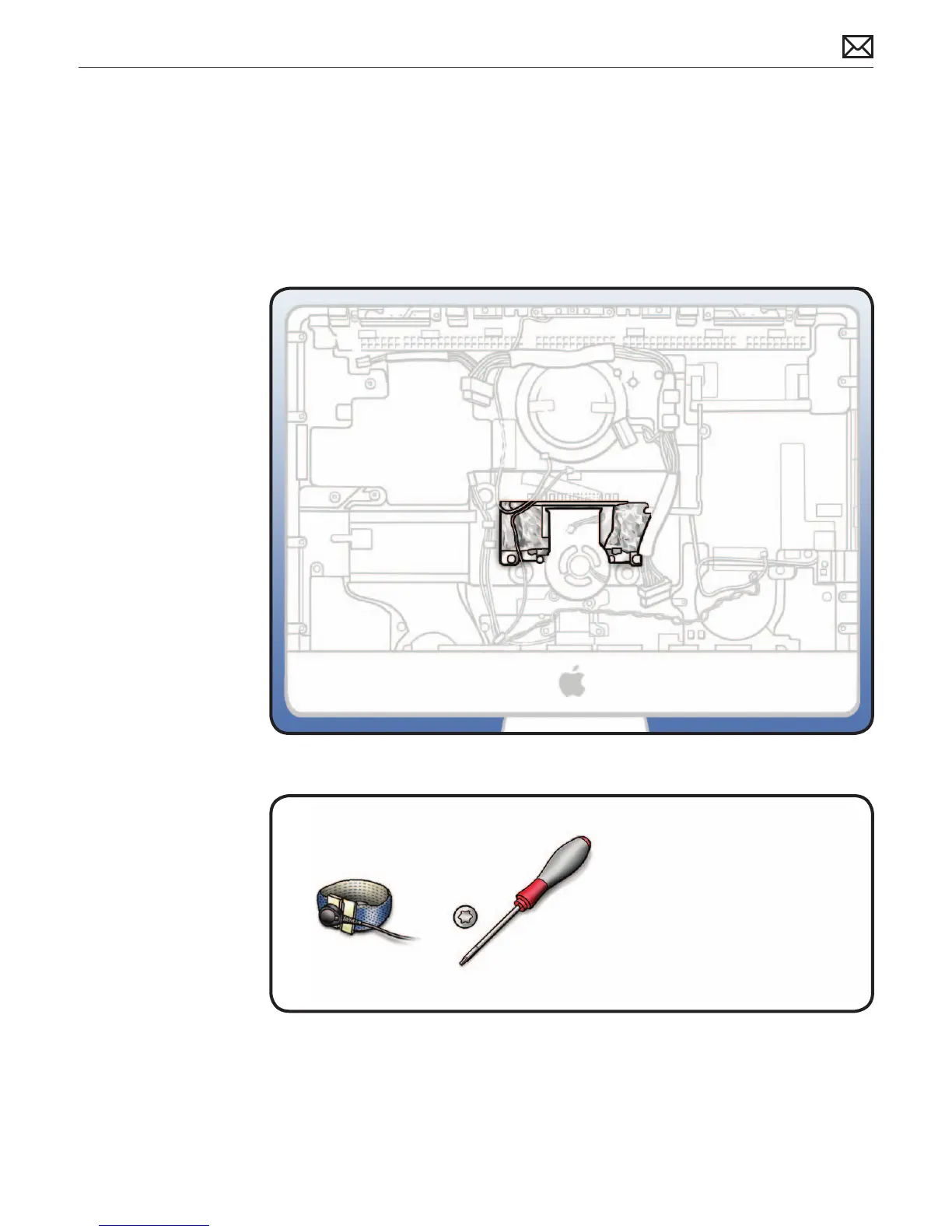

iMac (21.5-inch, Late 2009) Take Apart — Mechanism Cover 205

2010-11-18

First Steps

Remove:

• Glass Panel

• LCD Panel

• Power Supply

• Backlight Pressure Wall

• Power Supply Pressure

Wall

• Optical Drive

• Optical Drive Fan

• IR Board

• Logic Board

• Hard Drive

• Hard Drive Fan

Tools

• ESD wrist strap

• Torx T10 screwdriver

Mechanism Cover
