iMac (21.5-inch, Late 2009) Take Apart — Mechanism Cover 206
2010-11-18

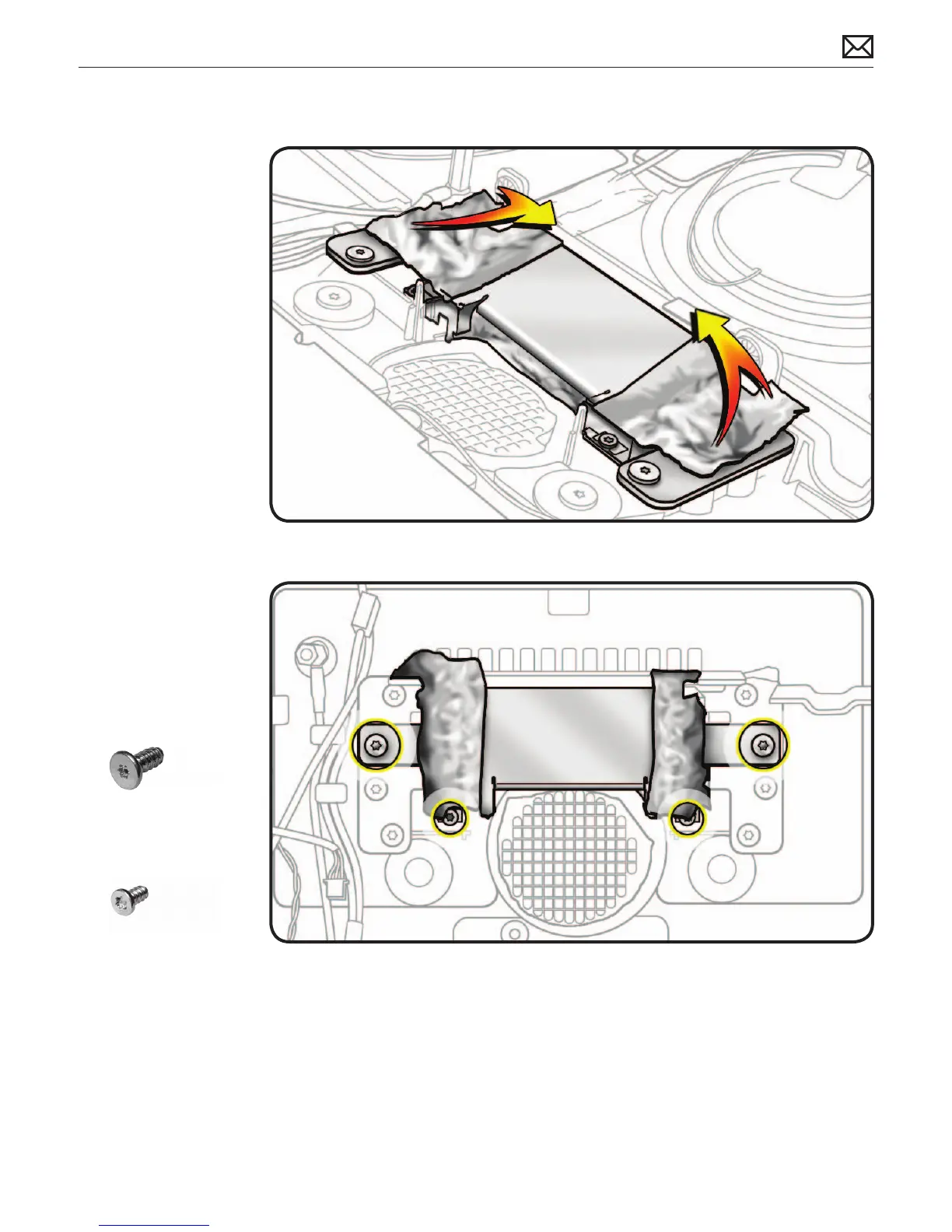

Removal
1
Peel up foil tape.
2 Remove T10 screws:
• (2) 922-9238
(same screws used
on mechanism)
• (2) 922-6800 (smaller
screws closer to
rear housing vent)
