iMac (21.5-inch, Late 2009) — General Troubleshooting 27
2010-11-18
Sensor and Fan Connector Locations

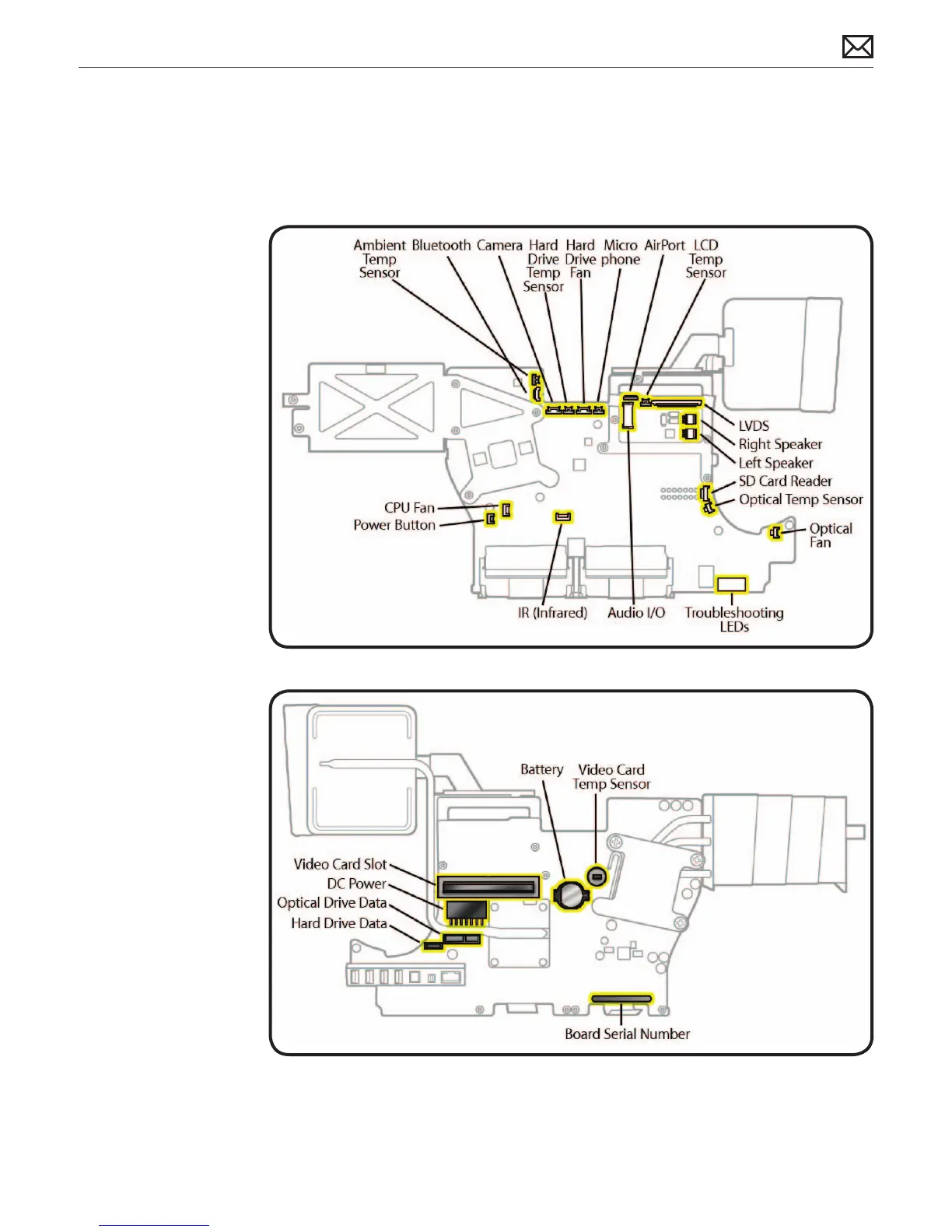

Ambient temp sensors and fans connectors locations are shown below. Ensure cables are
correctly routed and the sensors and fans are properly connected. If a sensor or fan is faulty or
not connected, Apple Hardware Test and Apple Service Diagnostic will generate an error code.
