4.3.4 Information Screen
Information screen shows basic information about the device and connected accessories.
Page is showed in two screens and switching between them is done by the key F5.

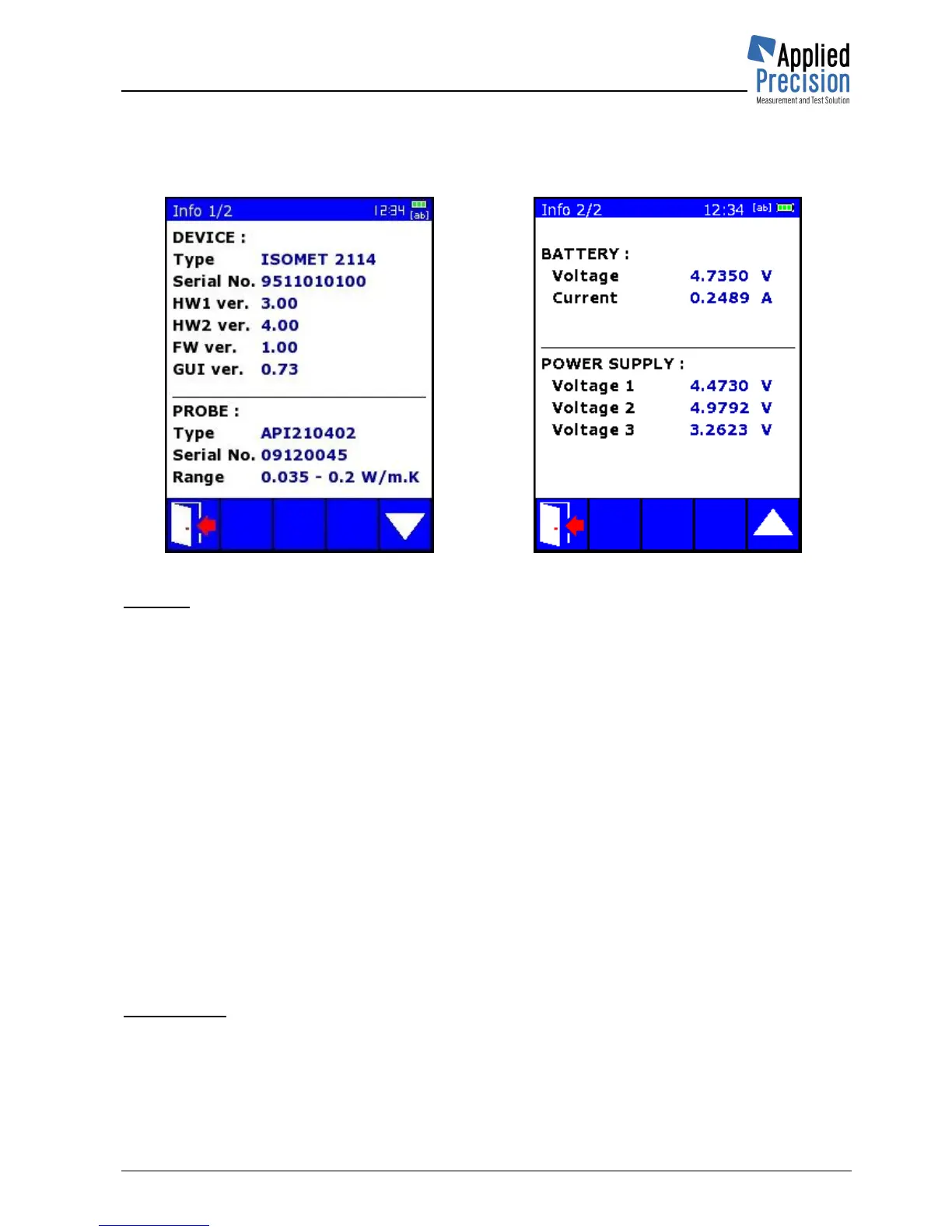

Information screen ½
Information screen 2/2
Content:
DEVICE ................................... type of the device
Serial No. ..................... serial number of the device
HW1 ver. ...................... hardware version of upper (high level) part of the device
HW2 ver. ...................... hardware version of bottom (low level) part of the device
FW1 ver. ...................... firmware version of upper (high level) part of the device
FW2 ver. ...................... firmware version of bottom (low level) part of the device
GUI ver. ....................... version of user interface screens (Graphical User Interface)
Probe Type ............................. type of the connected measurement probe
Serial No. ..................... serial number of the connected measurement probe
Range .......................... measurement range of the connected measurement probe
BATTERY ................................ parameters of internal battery
Voltage ........................ voltage of the battery
Current ........................ current from the battery
POWER SUPPLY .................... auxiliary voltages (specified for diagnostic purposes)
Voltage 1 ..................... power supply voltage 1
Voltage 2 ..................... power supply voltage 2
Voltage 3 ..................... power supply voltage 3
Control keys:
F1, ESC ........................ exit (return to previous page)
F5 ................................. switching between screens 1/2 and 2/2
