ISOMET2114
User’s Guide
www.appliedp.com
9
3.3 Bottom Connectors

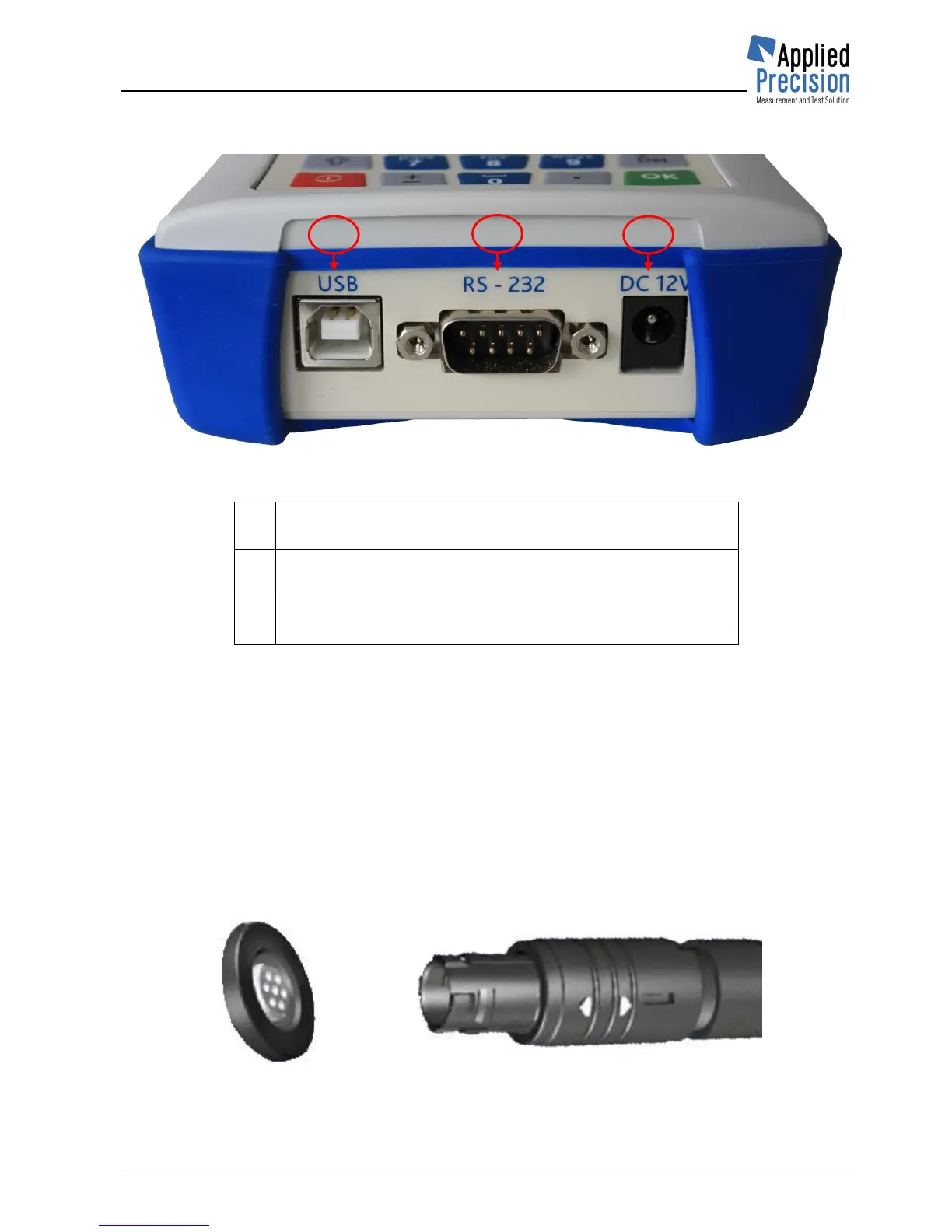

Bottom side connectors
1
USB Connector
- communication connector USB
2
RS-232 Connector
- communication connector RS-232
3
Power Connector
- connector of power adapter (+12V)
3.4 Measurement Probes
ISOMET 2114 is supplied with various types of measurement probes. Calibration coefficients and
further technical parameters are written into the probe nonvolatile memory, which ensure
interchangeability of probes. These parameters are uploaded into the measurement unit during
initialization procedure after switching the measuring unit on. Therefore the measurement probe has
to be connected to the measurement unit before it is switched on or initialization may be activated by
switching the measuring unit on once more. “Probe” socket for connecting measurement probes is
situated on the top of the instrument.
Measurement probes are equipped with plastic cylindrical push-pull connectors with definite and safe
locking mechanism for quick and easy connecting to the measuring unit.
Receptacle
(socket)
Plug
on the cable of the accessory
1
2
3
