3. Measuring Unit
3.1 Front panel

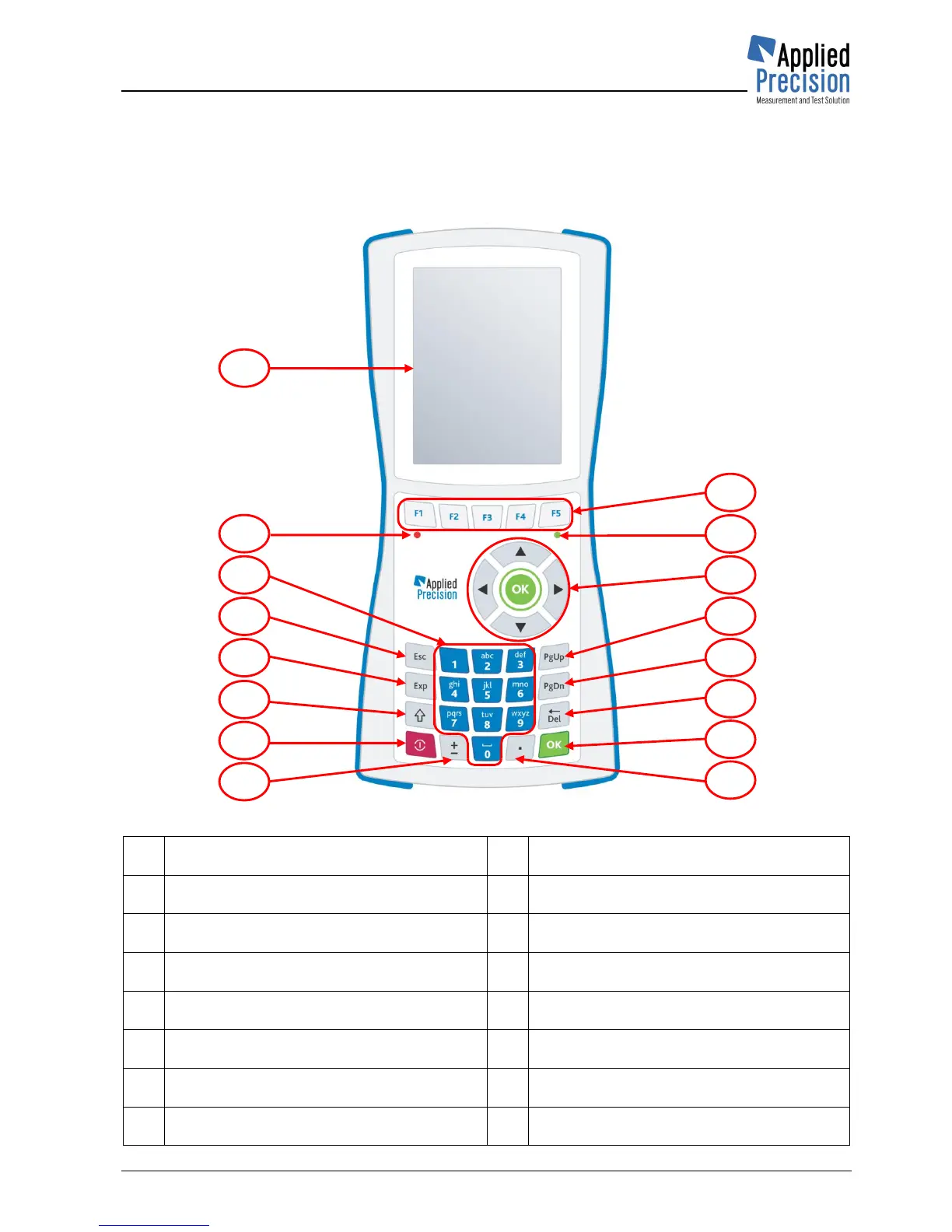

Front panel of the device
1
Display
- colour graphical display
9
Function keys
- quick access to functions
2
LED
- indicates enabled heating
10
Indicator of charging batteries
- green LED indicating charging status
3
Alphanumeric keypad
- keys 0-9 (a-z)
11
Choice keys
- arrows and OK
4
ESC key
- termination of functions
12
PgUp key
- paging upwards
5
Exp key
- input of exponent of number
13
PgDn key
- paging downwards
6
Shift key
- switching of keys functionality
14
Del key
- deleting
7
Power key
- power on/off of the device
15
OK key
- confirmation of choice
8
Sign key
- input of plus/minus sign
16
Point key
- decimal point
