Body work
RS 50
ch. 7
7-11
7
Release 00 2001-03

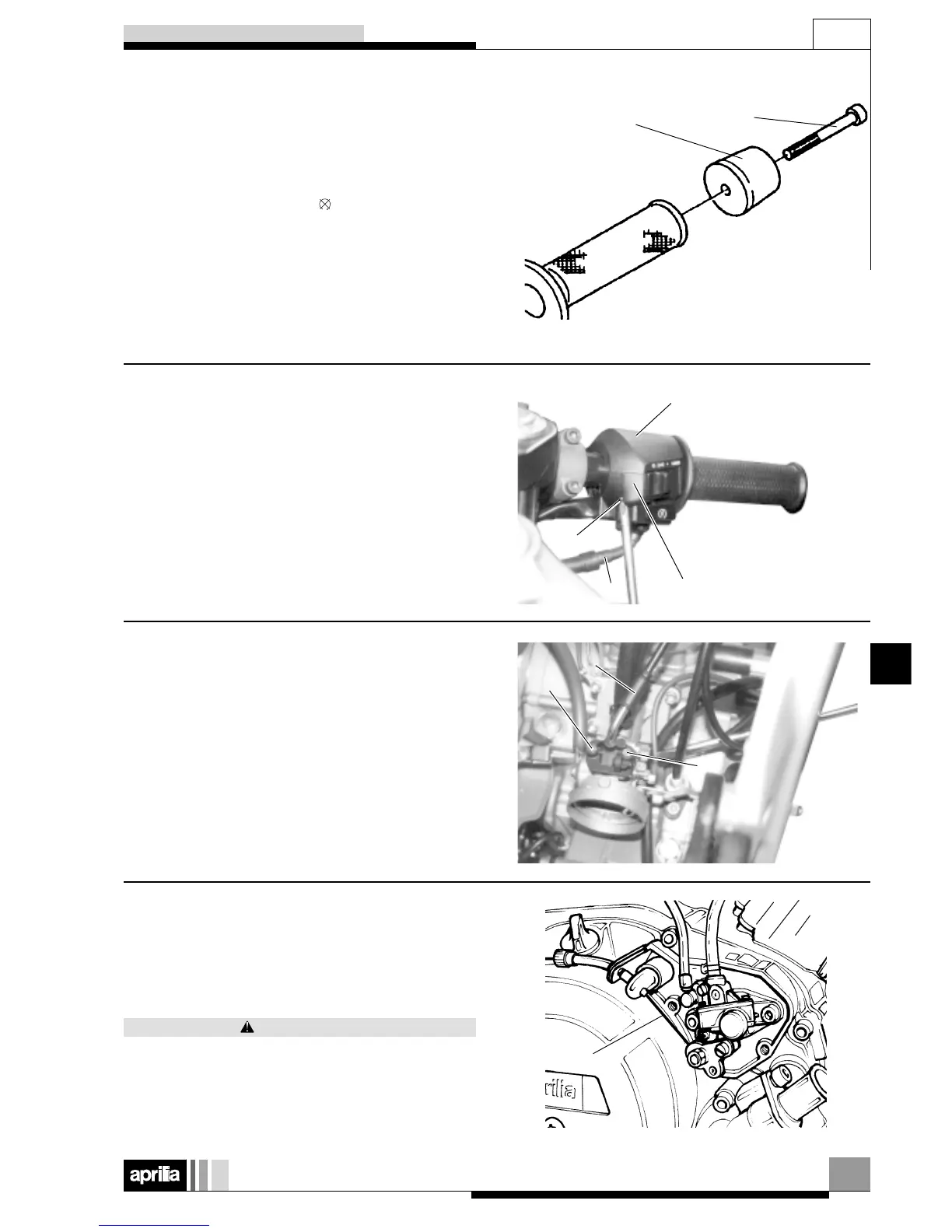

REMOVING THE THROTTLE CONTROL
Read carefully (PRECAUTIONS AND GENERAL
INFORMATION).
Position the motorcycle on the stand.
Switch the ignition key to the “ “ position.
Hold the counterweight (1) while loosening and
removing the screw (2).
Unscrew and remove the two screws (3).
Torque setting for screws (3):
2 Nm (0.2 kgm) [1.5 Ft-lb].
Remove the upper half shell (4) from the right high/low
beam selector (5).
Remove the fuel tank (REMOVING THE FUEL TANK).
Unscrew and remove the screws (6) on the carburetor
valve cover.
Torque setting for screws (6):
2 Nm (0.2 kgm) [1.5 Ft-lb].
Withdraw the throttle control cable (7) from the throttle
valve.
Disconnect the oil pump control cable (8).
Disconnect the throttle control cable and the oil pump
control cable from inside the high/low beam selector
(5).
Withdraw the throttle control (9).
When refitting, make sure that the two throttle
control cables are in good condition and fitted
properly.
WARNING
1
2
4
5
9
3
6
6
7
8
