General information
RS 50
ch. 1
Release 00 2001-03
1-17
1
GENERAL SPECIFICATIONS FOR
TORQUE WRENCH SETTINGS
The standard torque wrench settings for screws and
bolts with ISO metric thread are given in the table below.
For the specific settings for the unions and couplings
on the motorcycle in question, see (FASTENERS).
Unless otherwise specified, the torque wrench set-
tings refer to clean, dry threads at ambient tempera-
ture.

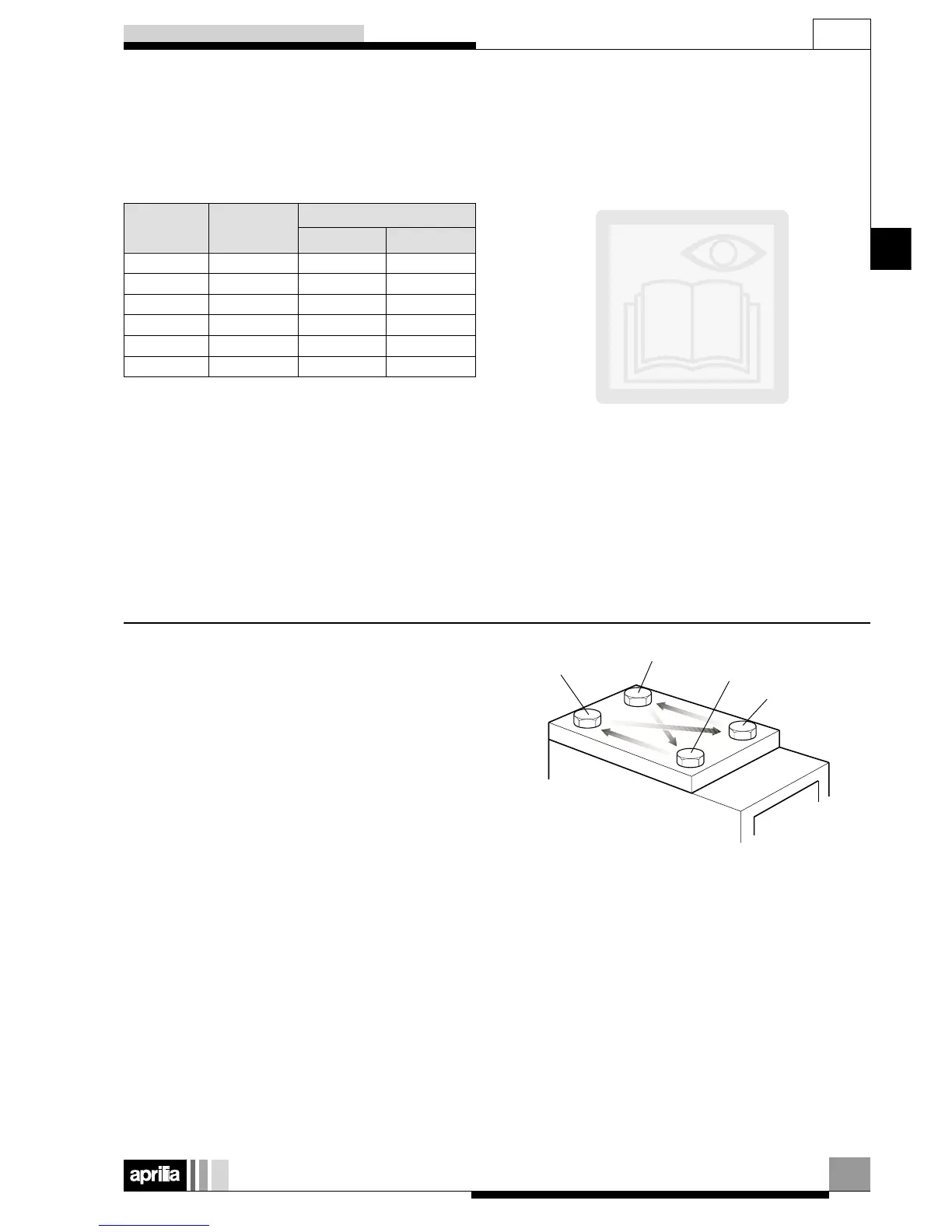

NOTE To avoid deforming the components, or
having a leaking joint, tighten the screws and bolts as
follows. First, screw in all the fastners by hand.
Second, snug each fastener to approximately one-half
of the specified torque setting, working in the diagonal
pattern as shown, (A), (B), (C), and (D). Finally, bring
each fastener up to its specified torque, working in the
same order.
NOTE When this procedure is followed, the clamping
pressure exerted by the fasteners will be uniformly
distributed over the surface of the joint.
A
C
D
B
Thread
screw or
bolt
Wrench
Torque wrench
Nm (Ft-lb) Kgm
M6
M8
M10
M12
M14
M16
10
12
14
17
19
22
6 (4.4)
15 (11.1)
30 (22.1)
55 (40.5)
85 (62.7)
130 (95.9)
0,6
1,5
3,0
5,5
8,5
13,0
