REPLACING THE FUSES
Read page 61 (MAINTENANCE)
carefully.
CAUTION
Never attempt to repair a defective fuse.
Never use a fuse of a rating other than
specified. This could damage the
electrical system or cause a short
circuit, with the risk of fire.
NOTE When a fuse fitted in a particular
position keeps blowing frequently, there
might be a short circuit or overloading.
When this is the case, contact an
aprilia
Official dealer.
Checking the fuses is recommended
whenever an electrical component fails to
operate or is malfunctioning, or when the
engine does not start.
Check the 15-A auxiliary fuses first and
then the 30-A main fuses.

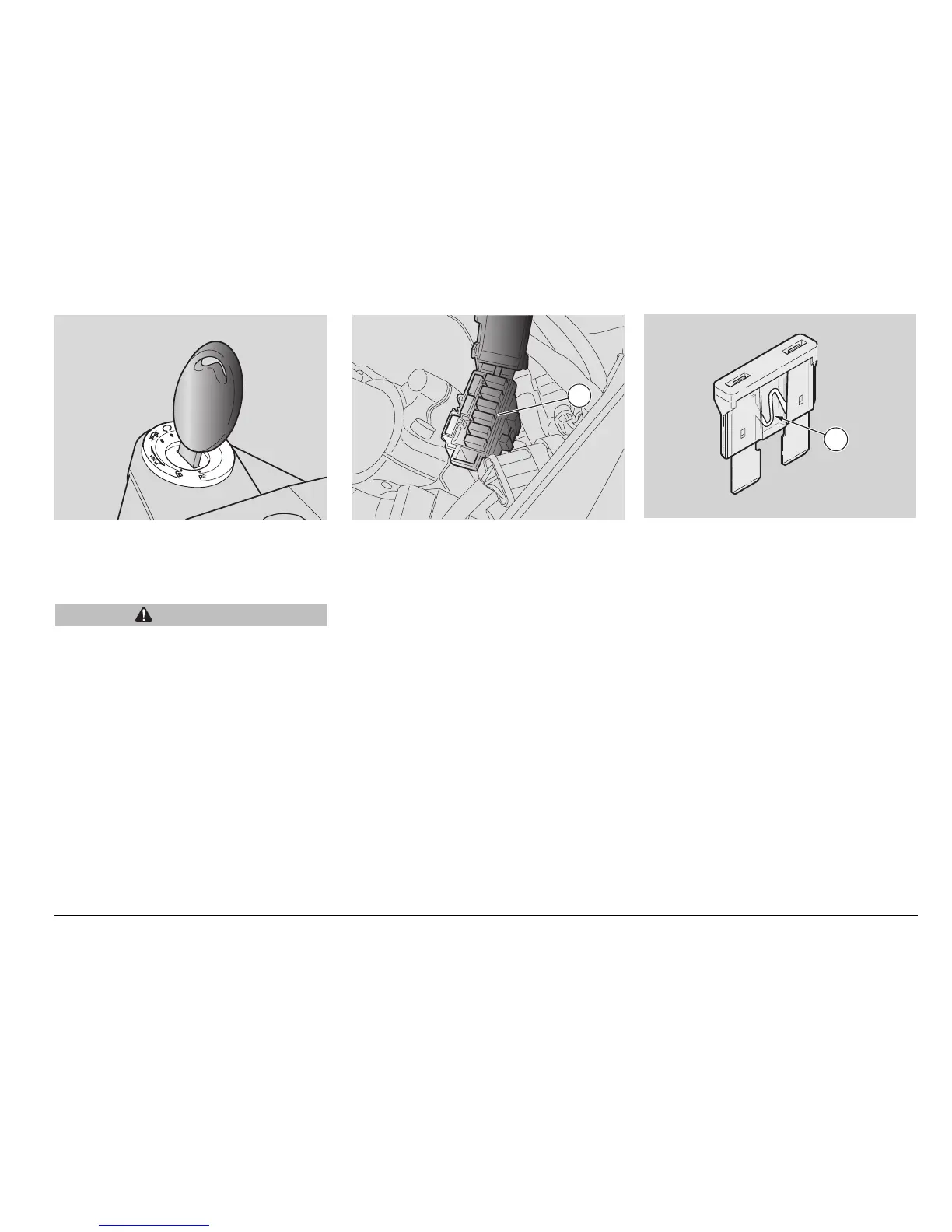

Inspection:
◆ Set the ignition switch to "". This will
prevent accidental short circuits.
◆ Take off the cover of the auxiliary fuse
box (1).
◆ Extract all fuses one by one and check
for blown fuses. A blown fuse is
identified by the filament (2) in the centre
being broken.
◆ When you find a blown fuse, determine
and rectify the cause (if possible) before
fitting a new fuse.
◆ Replace any failed fuses with a fuse of
equal current rating.
NOTE When you use one of the spare
fuses, remember to add a new fuse of
equal rating to the fuse box.
◆ Remove the rider saddle, see page 81
(REMOVING THE RIDER SADDLE).
◆ Repeat the process for the main fuses.
NOTE When the 30-A fuses are
removed, the digital clock and red line
setting will be reset to zero.
See page 20 (MULTIFUNCTION
COMPUTER) for instructions on how to set
clock and red line.
1
2
