17
use and maintenance RSV mille - RSV mille R
+%9

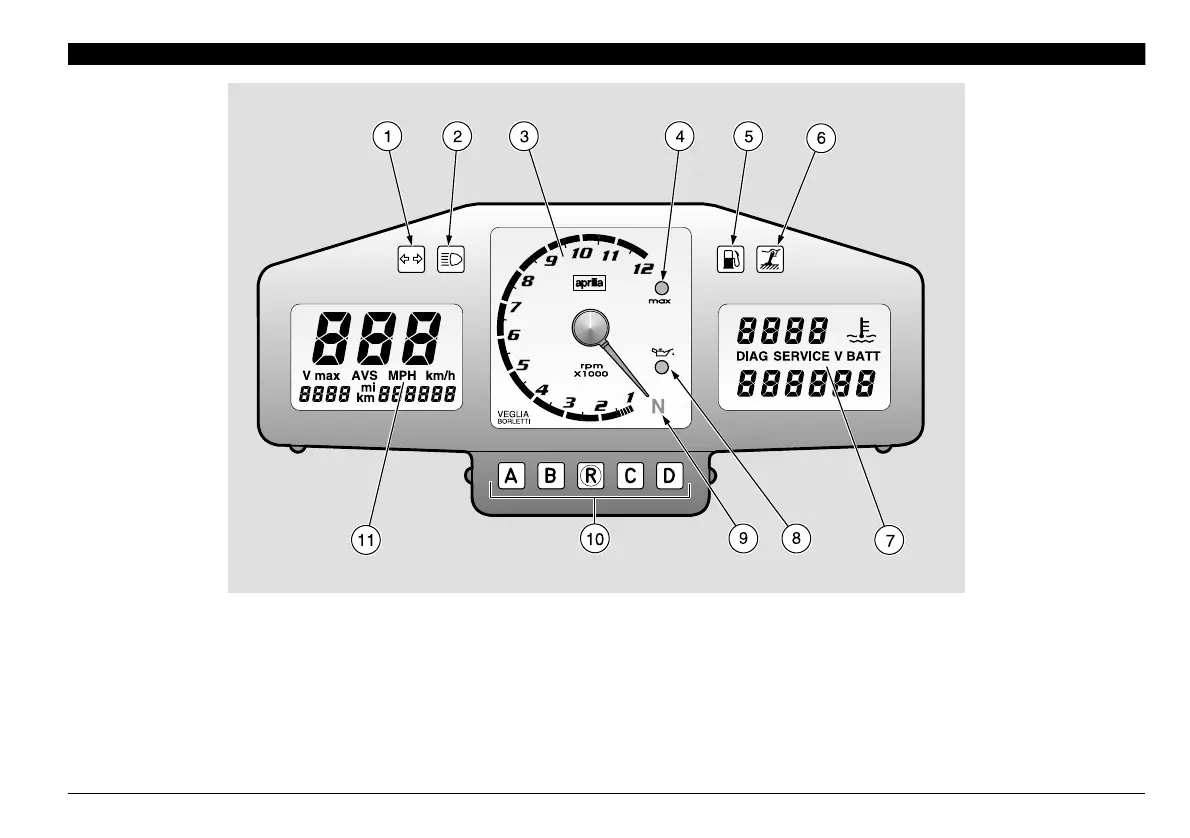

1) Green direction indicator warning light (6)
2) Blue high beam warning light (7)
3) Revolution counter
4) Programmable red line warning light LED (max)
5) Amber low fuel warning light (-)
6) Amber “side stand down” warning light (Æ)
7) Right multifunction digital display (coolant temperature - clock
- battery voltage - chronometer - diagnostic)
8) Red engine oil pressure warning light LED (.)
9) Green neutral indicator warning light (/)
10) Multifunction computer programming push buttons
11) Left multifunction digital display (speedometer - odometer)
).3425-%.43!.$).$)#!4/23
RSVmille-R-UK.book Page 17 Friday, November 17, 2000 3:13 PM
